Description

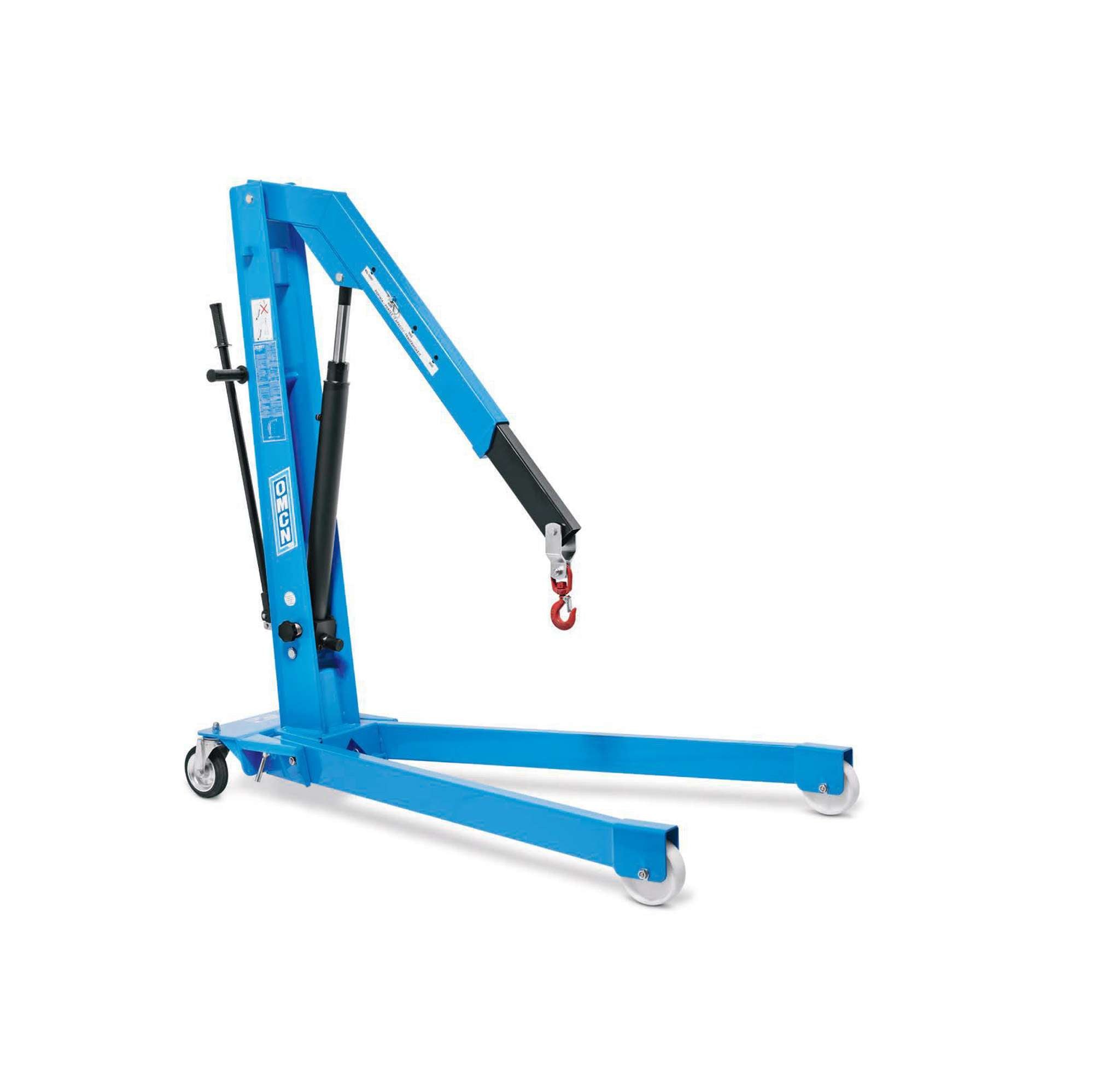

OMCN GP12/DE Folding Undercarriage Hydraulic Crane
The OMCN hydraulic folding trolley crane is a crane with a boom that can be extended in four working positions and is fully foldable, making it an excellent space-saving solution.
It is capable of lifting loads depending on how far the jib is extended. With a maximum jib length of 1190 to 1490 mm, it can lift loads of 700 - 800 - 900 - 1200 kg respectively, so the longer the jib is extended, the less load it can support.
Thanks to the ground and chrome-plated mast and the side tie-rods, this crane is designed for high reliability and robustness over time.
Equipped with 4 wheels, 2 of which are rear swivel wheels and 2 polyurethane wheels for maximum manoeuvrability.
The lifting mechanism is by means of a 2-speed hydraulic pump, with a speed-controlled lowering control and built-in overload protection valve.
The product weighs 125kg and has approximate dimensions of 1600x1600x1170mm.
Features:
Lifting capacity 700 to 1200kg
Lifting height 1450 - 2355mm
Foldable in seconds
Technical Specifications
Capacity (depending on reach) min/max 700 / 800 / 900 / 1200kg
Arm length min/max (B-A) 1190-1490mm
Lifting height min/max with outreach (C-D) 2140-2355mm
Min. lifting height with min/max reach (H-I) 1450-1450mm
Central body height (E) 1600mm
Wheel height (G) 135mm
Central body width (N) 1150mm
Inside wheel width (L) 1003mm
External wheel width (M) 1170mm
Arm length (O) 1110mm
Total length (F) 1600mm
Weight 125kg
The OMCN hydraulic folding trolley crane is a crane with a boom that can be extended in four working positions and is fully foldable, making it an excellent space-saving solution.
It is capable of lifting loads depending on how far the jib is extended. With a maximum jib length of 1190 to 1490 mm, it can lift loads of 700 - 800 - 900 - 1200 kg respectively, so the longer the jib is extended, the less load it can support.
Thanks to the ground and chrome-plated mast and the side tie-rods, this crane is designed for high reliability and robustness over time.
Equipped with 4 wheels, 2 of which are rear swivel wheels and 2 polyurethane wheels for maximum manoeuvrability.
The lifting mechanism is by means of a 2-speed hydraulic pump, with a speed-controlled lowering control and built-in overload protection valve.
The product weighs 125kg and has approximate dimensions of 1600x1600x1170mm.
Features:
Lifting capacity 700 to 1200kg
Lifting height 1450 - 2355mm
Foldable in seconds
Technical Specifications
Capacity (depending on reach) min/max 700 / 800 / 900 / 1200kg
Arm length min/max (B-A) 1190-1490mm
Lifting height min/max with outreach (C-D) 2140-2355mm
Min. lifting height with min/max reach (H-I) 1450-1450mm
Central body height (E) 1600mm
Wheel height (G) 135mm
Central body width (N) 1150mm
Inside wheel width (L) 1003mm
External wheel width (M) 1170mm
Arm length (O) 1110mm
Total length (F) 1600mm
Weight 125kg
Delivery 10-15 days
