Description

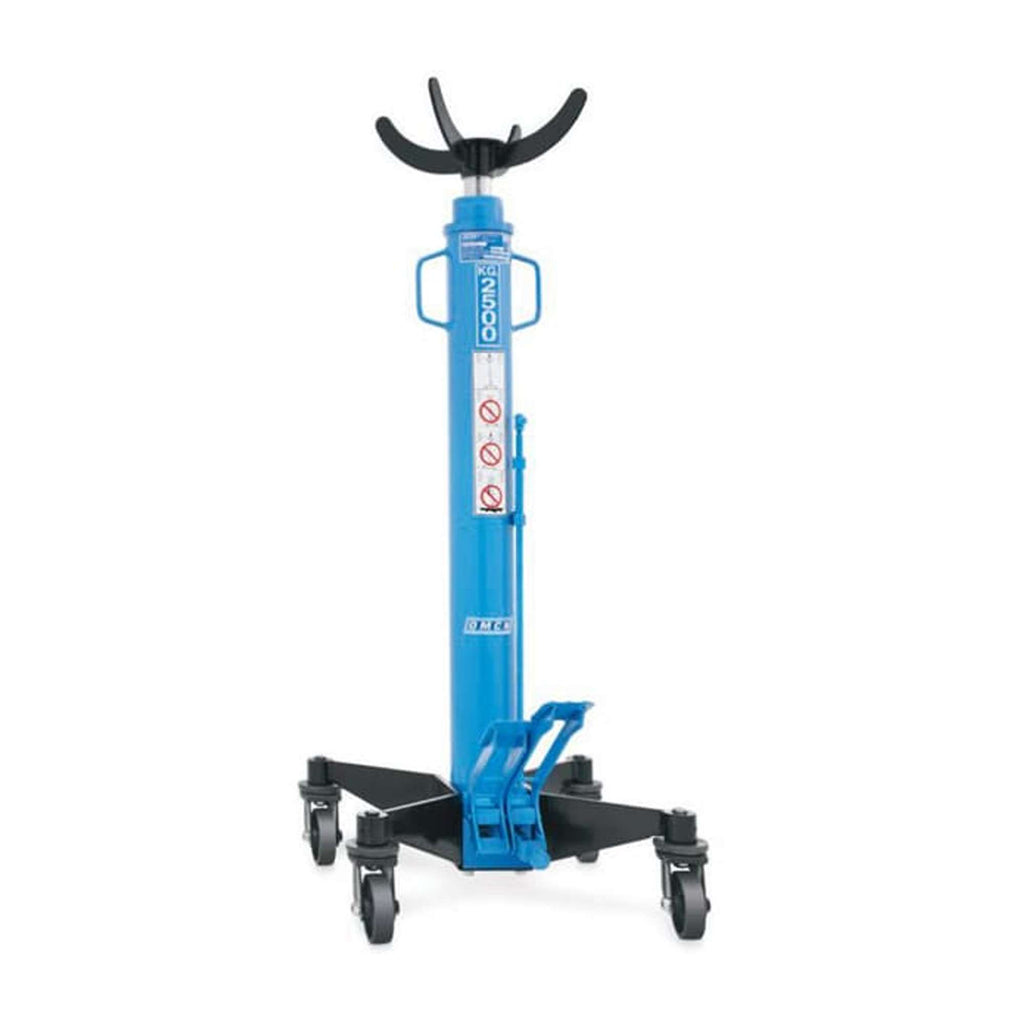

OMCN's Hydraulic Pit and Undercarriage Lifter is a machine designed for lifting/lowering loads in automotive maintenance and repair operations. The two-speed pump ensures fast and precise approach.
The SIF4/73 lifter is ideal for use in the workshop and garage. Assembly work on the gearbox, engine and rear axles, as well as lifting work under the vehicle are made much easier and faster with its help.
It is made of robust materials that guarantee long-term reliability and is capable of lifting weights of up to 2500 kg.
The main safety system on the machine is the load limiter, which secures the lift against overloading. This device ensures that the internal pressure does not exceed the value of the maximum rated capacity.
Technical construction layout
Ground and chrome-plated special steel stem
Large wheels mounted on bearings
Overload protection valve
Maximum manoeuvrability
Speed-controlled 'man-present' descent control
4-arm mounting bracket
Two-speed pump for rapid approach
Lift loads up to 2500 kg
Dimensions and footprint
Overall dimensions 550 x 550 mm
Maximum working height 2220 mm
Minimum working height 1350 mm
Piston diameter 50 mm
Delivery 10-15 days
