Description

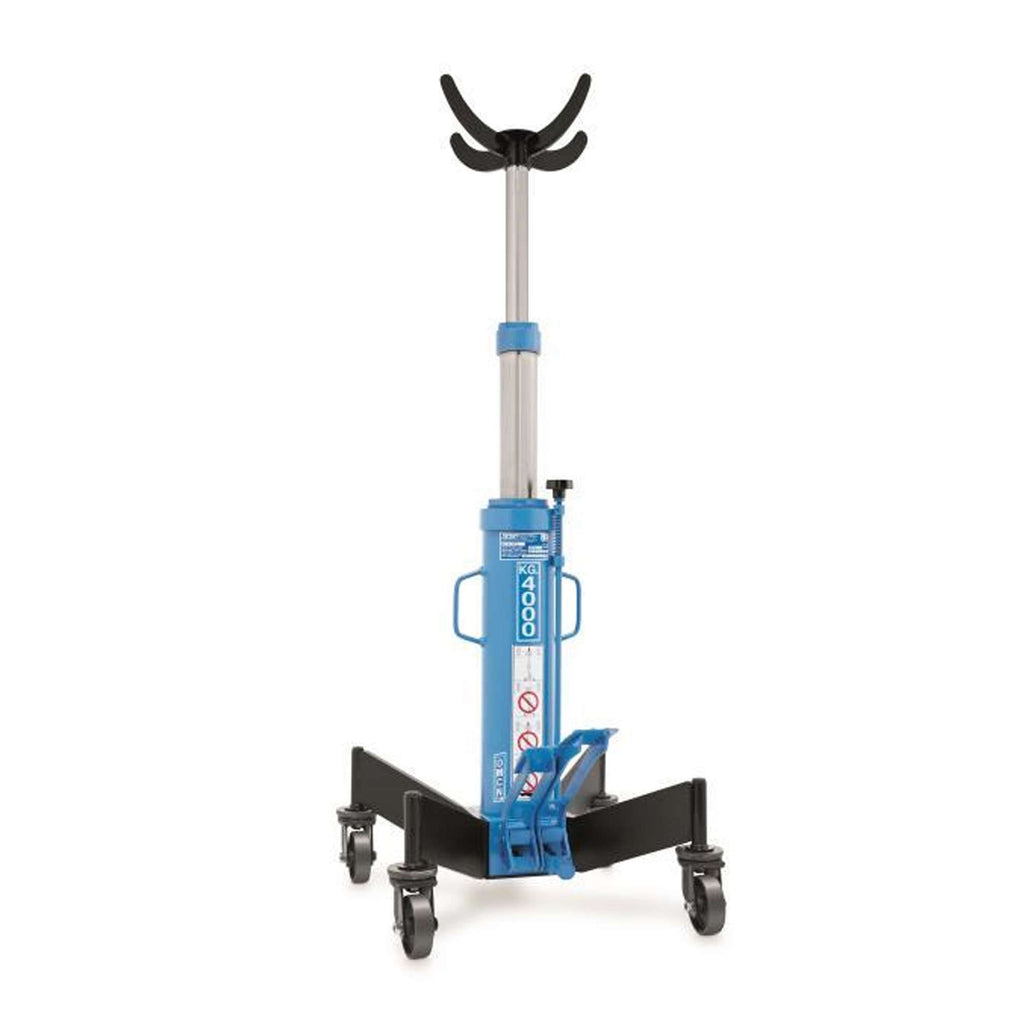

OMCN's Hydraulic Pit and Undercarriage Lifter is a machine designed for lifting/lowering loads in automotive maintenance and repair operations. The two-stage cylinder provides an extra low minimum height.
The SIF10/73 lift is ideal for use in the workshop and garage. Assembly work on the gearbox, engine and rear axles, as well as lifting work under the vehicle are made much easier and faster with its help.
The two-speed pump ensures a fast and precise approach. It is made of robust materials that guarantee reliability over time and is capable of lifting weights of up to 4000 kg.
The main safety system on the machine is the load limiter that secures the lift against overloading. This device ensures that the internal pressure does not exceed the maximum rated capacity.
Technical construction layout
Two-stage telescopic cylinder
Ground and chrome-plated special steel rods
Large wheels mounted on bearings
Overload protection valve
Maximum manoeuvrability
Two-speed pump for rapid approach
Speed-controlled 'man-present' descent control
4-arm mounting bracket
Lift loads up to 4000 kg
Dimensions and footprint
Overall dimensions 550 x 550 mm
Maximum working height 1900 mm
Minimum working height 930 mm
Piston diameter 45 mm
Delivery 10-15 days
