Description

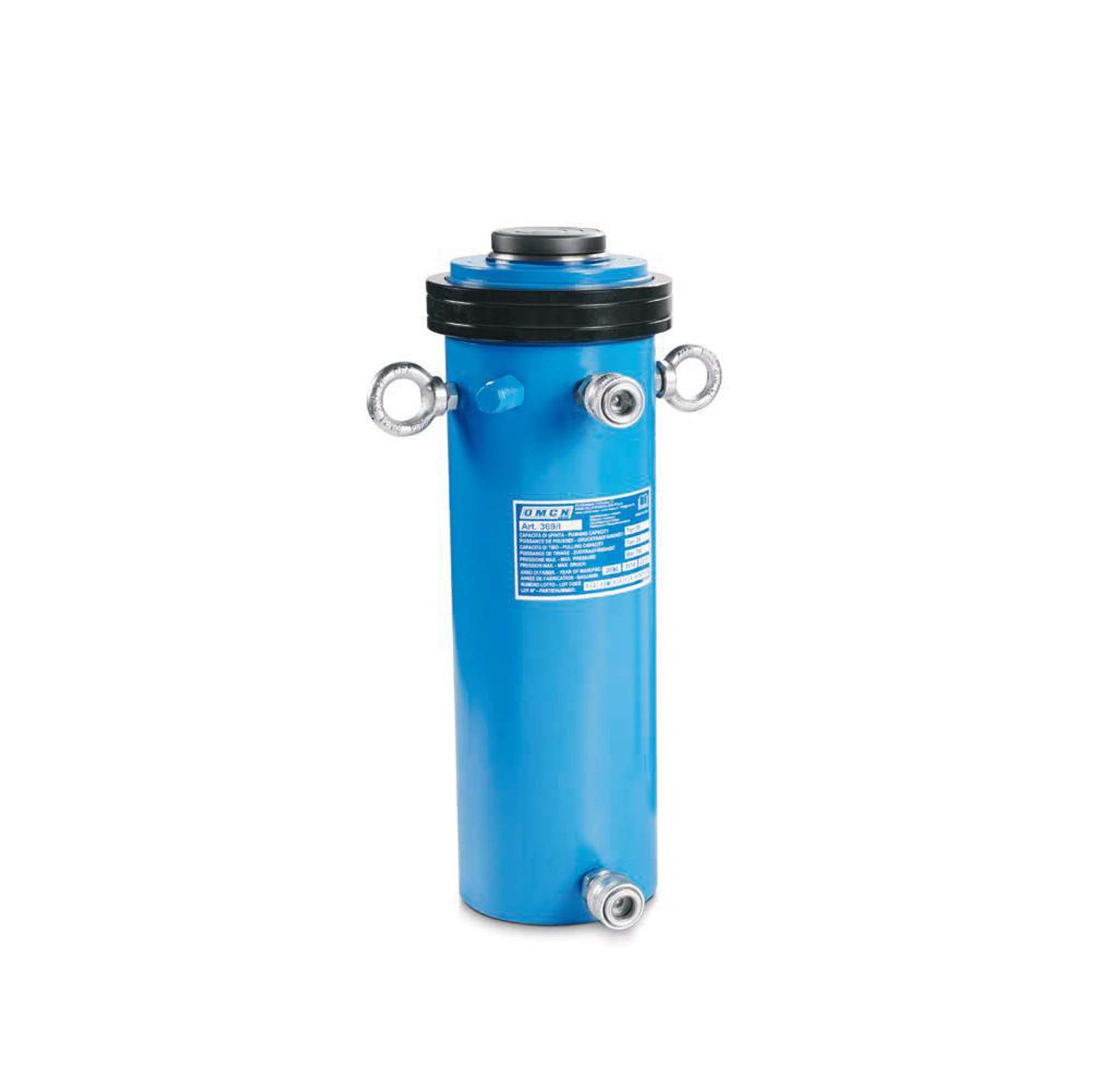

Double-acting hydraulic cylinder for lifting up to a maximum of 11 tonnes. Made of high-quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 11t
Working pressure 700 bar
Oil capacity 255.3cm³
Dimensions A 445mm
Dimensions B 285mm
Dimensions C 160mm
Dimensions D 35mm
Dimensions E 10mm
Dimensions F 25mm
Dimensions G M59X2mm
Dimensions H 45mm
Dimensions I M20X2,5mm
Dimensions L 23mm
Dimensions M M8
Weight 5.5kg
Delivery 10-15 days
