Description

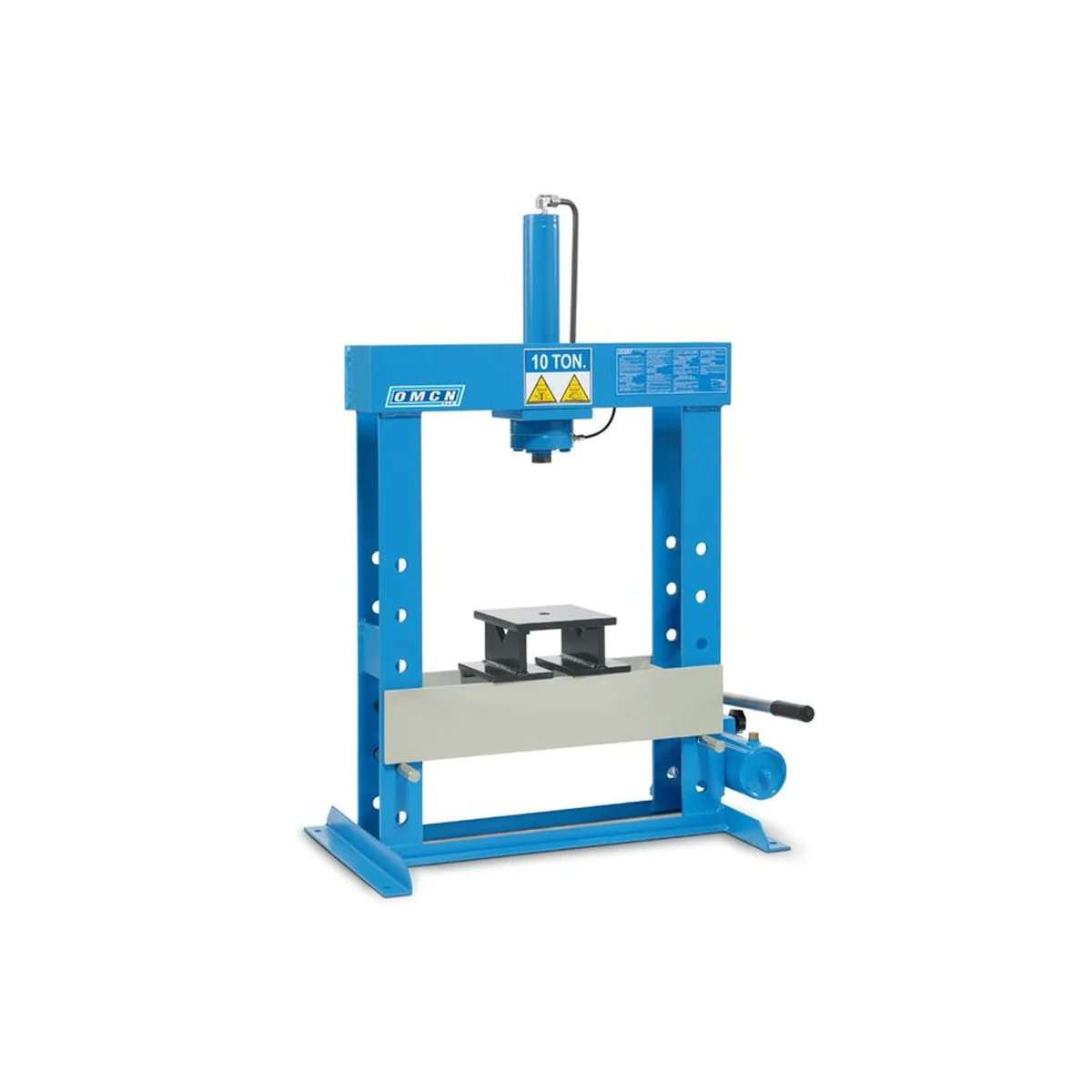

OMCN 153 hydraulic benchtop press
The OMCN hydraulic bench press is a durable and reliable product.
With its compact structure made of welded steel, the cylinder rod made of treated, chrome-plated steel and the steel spring inserted in the cylinder for rapid rod return, this machine is made to last, always guaranteeing optimum performance.
The machine is hydraulically operated by means of a two-speed pump lever: fast during approach and precise during operation, all controlled by a handwheel on the pump.
Pressing capacity of 10t and piston stroke of 190mm, with a working area of 520x370mm.
Included with this model are a height-adjustable bench for greater working versatility, a pinch plate and a pair of V-shaped prisms.
The product has dimensions of 1210x895x500mm and a weight of 104kg.
Features:
10t pressing capacity
Two-speed hydraulic drive
Robust and durable construction
Technical features
Pressing capacity 10t
Height (A) 1210mm
Depth (B) 500mm
Width (C) 895mm
Working area width (D) 520mm
Working area height (E) 370mm
Working area depth (F) 120mm
Piston stroke (G) 190mm
Piston width (H) 40mm
Weight 104kg
Equipment
Height adjustable bench
Pinch plate
Pair of V-shaped prisms
The OMCN hydraulic bench press is a durable and reliable product.
With its compact structure made of welded steel, the cylinder rod made of treated, chrome-plated steel and the steel spring inserted in the cylinder for rapid rod return, this machine is made to last, always guaranteeing optimum performance.
The machine is hydraulically operated by means of a two-speed pump lever: fast during approach and precise during operation, all controlled by a handwheel on the pump.
Pressing capacity of 10t and piston stroke of 190mm, with a working area of 520x370mm.
Included with this model are a height-adjustable bench for greater working versatility, a pinch plate and a pair of V-shaped prisms.
The product has dimensions of 1210x895x500mm and a weight of 104kg.
Features:
10t pressing capacity
Two-speed hydraulic drive
Robust and durable construction
Technical features
Pressing capacity 10t
Height (A) 1210mm
Depth (B) 500mm
Width (C) 895mm
Working area width (D) 520mm
Working area height (E) 370mm
Working area depth (F) 120mm
Piston stroke (G) 190mm
Piston width (H) 40mm
Weight 104kg
Equipment
Height adjustable bench
Pinch plate
Pair of V-shaped prisms
Delivery 10-15 days
