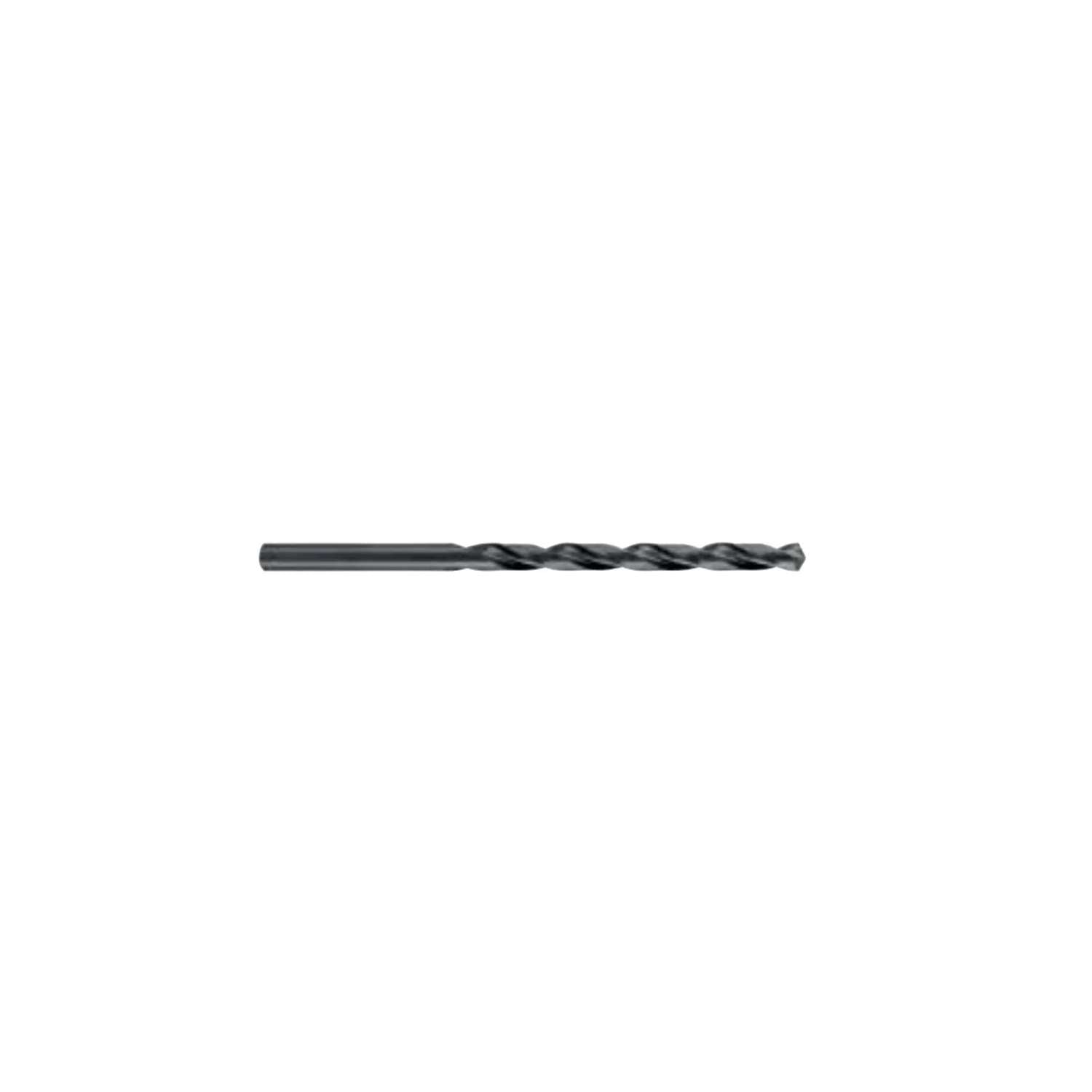

Cylindrical tip for general applications type N DIN 340 (5,25-7,6)mm- ILIX

IlixSKU: 232_013_IL6165 (5,25-7,6)___232_013_IL61655,3
Ø Drill bit (mm): 5,3 mm - IL61655,3
Price:
€9,15
Availability : 3
Register to buy

Description

N - GENERAL PURPOSE APPLICATIONS - DIN 340 - CATALOGUE 6165

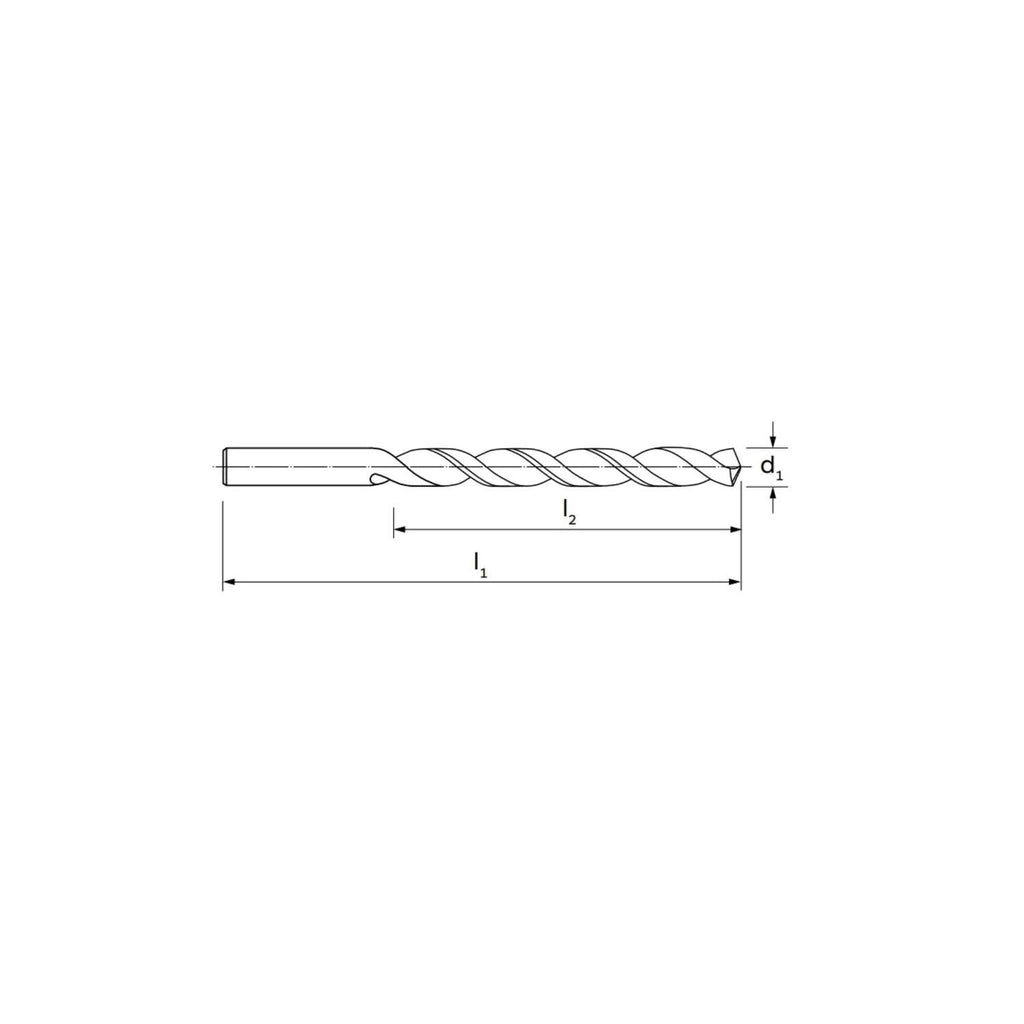

Ø L1 L2
5.25 132 87
5.3 132 87
5.4 139 91
5.5 139 91
5.6 139 91
5.7 139 91
5.75 139 91
5.8 139 91
5.9 139 91
6 139 91
6.1 148 97
6.2 148 97
6.25 148 97
6.3 148 97
6.4 148 97
6.5 148 97
6.6 148 97
6.7 148 97
6.75 156 102
6.8 156 102

6.9

 156 102
7 156 102
7.1 156 102
7.2 156 102
7.25 156 102
7.4 156 102
7.5 156 102
7.6 165 109
