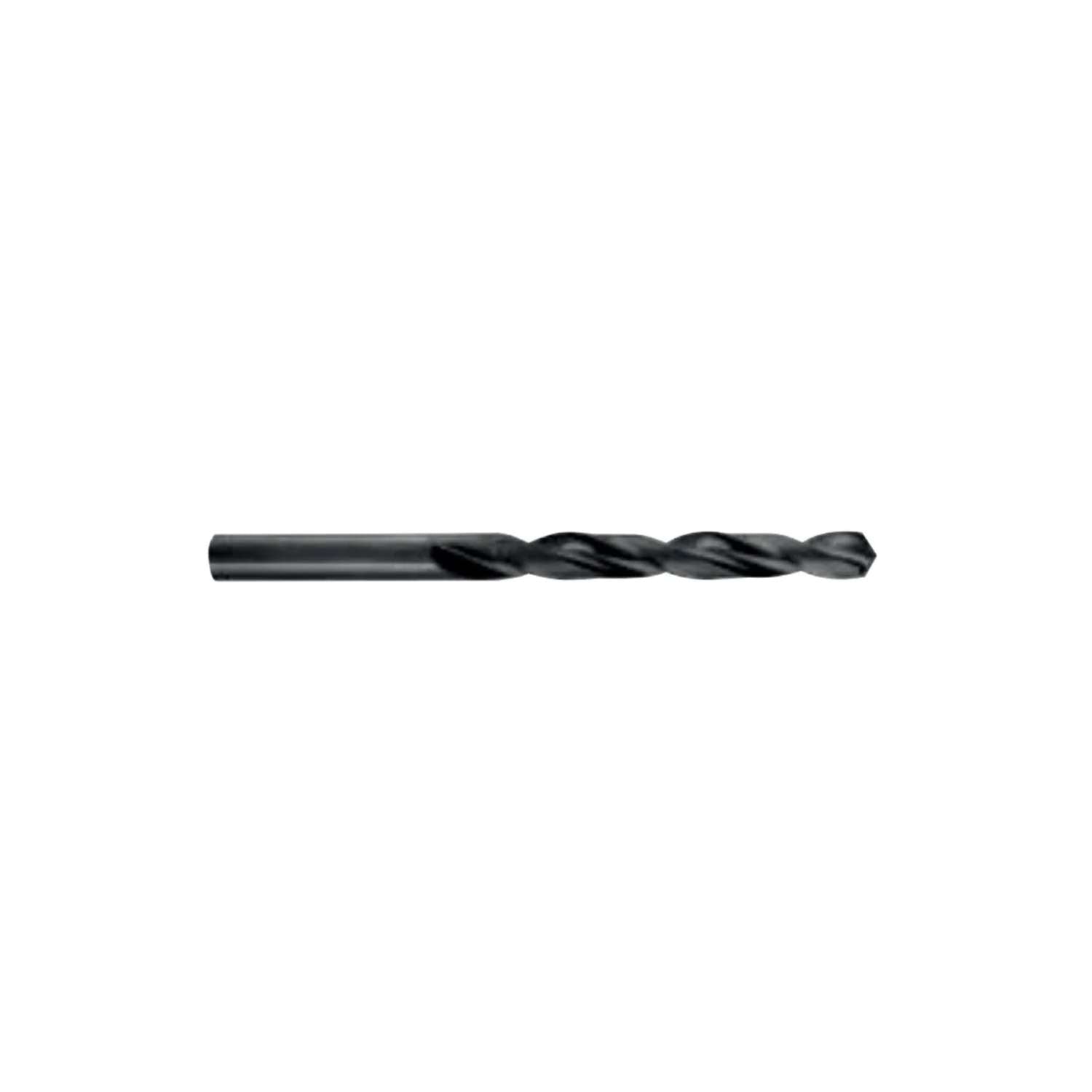

Cylindrical tip for general applications DIN 338 type N, (4,65-6,25)- ILIX

IlixSKU: 232_013_IL6151 (4,65-6,25)___232_013_IL61514,65
nome_variante: Ø Drill bit (mm)
variante_1: 4,65 mm - IL61514,65
Price:
Login to view price
Availability : 3
Register to buy
Download datasheet

Description

"

N - GENERAL PURPOSE APPLICATIONS - DIN 338 - CATALOGUE 6151

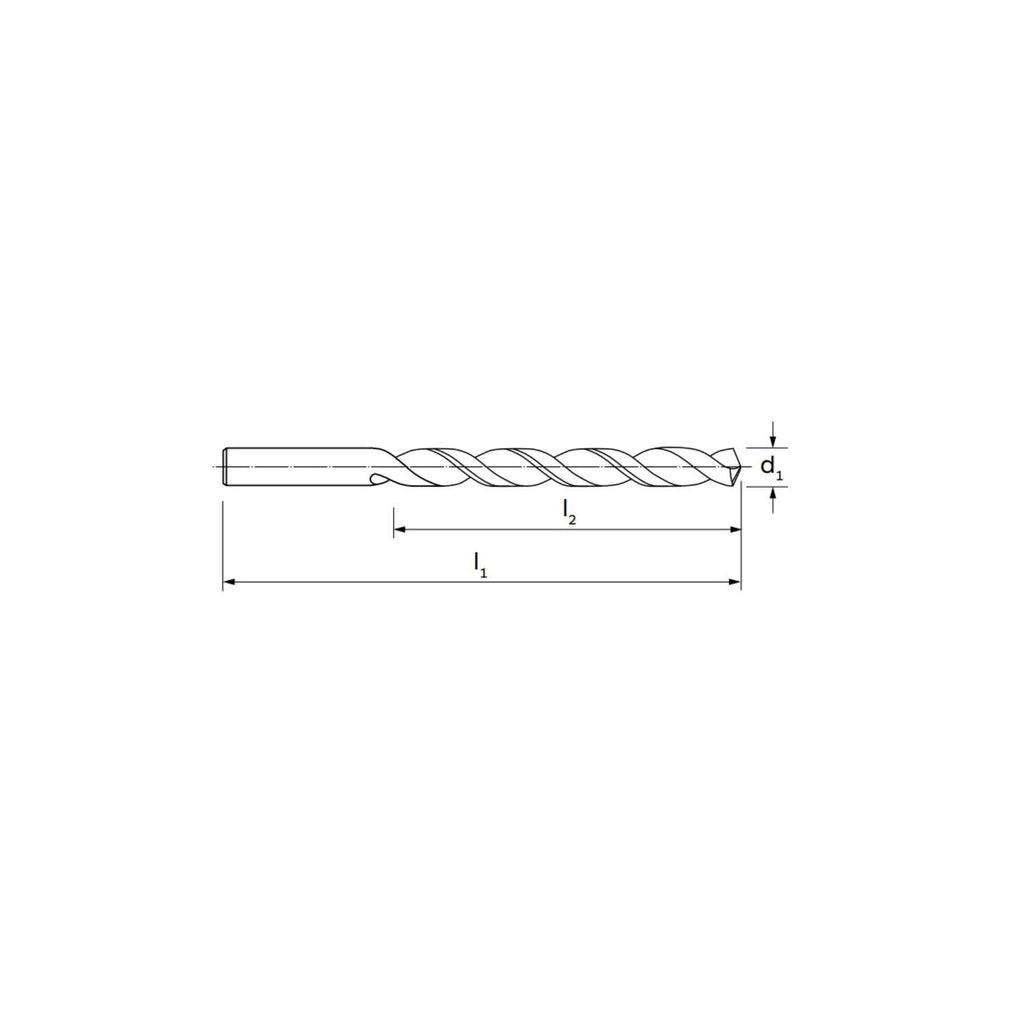

Ø L1 L2
4,65 80 47
4,7 80 47
4,75 80 47
4,8 86 52
4,9 86 52
4,95 86 52
5 86 52
5,05 86 52
5,1 86 52
5,15 86 52
5,2 86 52
5,25 86 52
5,3 86 52
5,4 93 57
5,45 93 57
5,5 93 57
5,6 93 57
5,75 93 57
5,8 93 57
5,85 93 57
5,9 93 57
5,95 93 57
6 93 57
6,05 101 63
6,1 101 63
6,15 101 63
6,2 101 63
6,25 101 63
"
