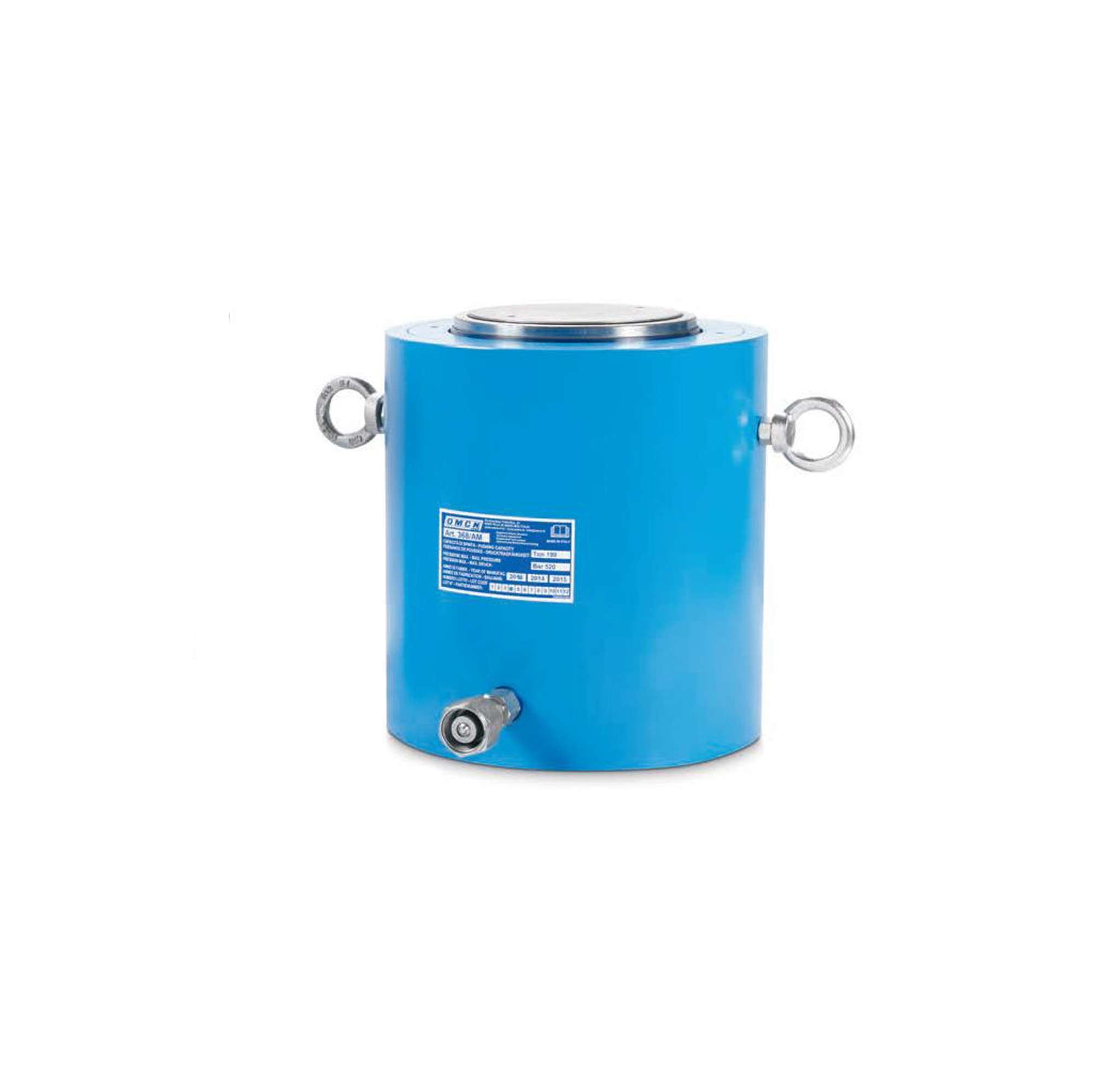

Hydraulic cylinder 85 ton capacity with spring return H.505mm - OMCN 364/BM
Hydraulic cylinder 85 ton capacity with spring return H.505mm - OMCN 364/BM
Roll over image to zoom in Click on image to zoom
Hydraulic cylinder 85 ton capacity with spring return H.505mm - OMCN 364/BMHydraulic cylinder 85 ton capacity with spring return H.505mm - OMCN 364/BM

Hydraulic cylinder 85 ton capacity with spring return H.505mm - OMCN 364/BM

OmcnSKU: 267_018_CARA364/BM
Price:
€1.304,78
Availability : 3
Register to buy

Description

High-power hydraulic cylinder with spring return for lifting up to a maximum of 85 tonnes. Made of high-quality materials.



The maximum working pressure is 520 bar.


The table below shows the features of the OMCN jack.



Technical Specifications
Capacity 85t
Working pressure 520 bar
Oil capacity 3090cm³
Dimensions A 505mm
Dimensions B 330mm
Dimensions C 175mm
Dimensions D 110mm
Weight 48,5kg

Delivery 10-15 days
