Description

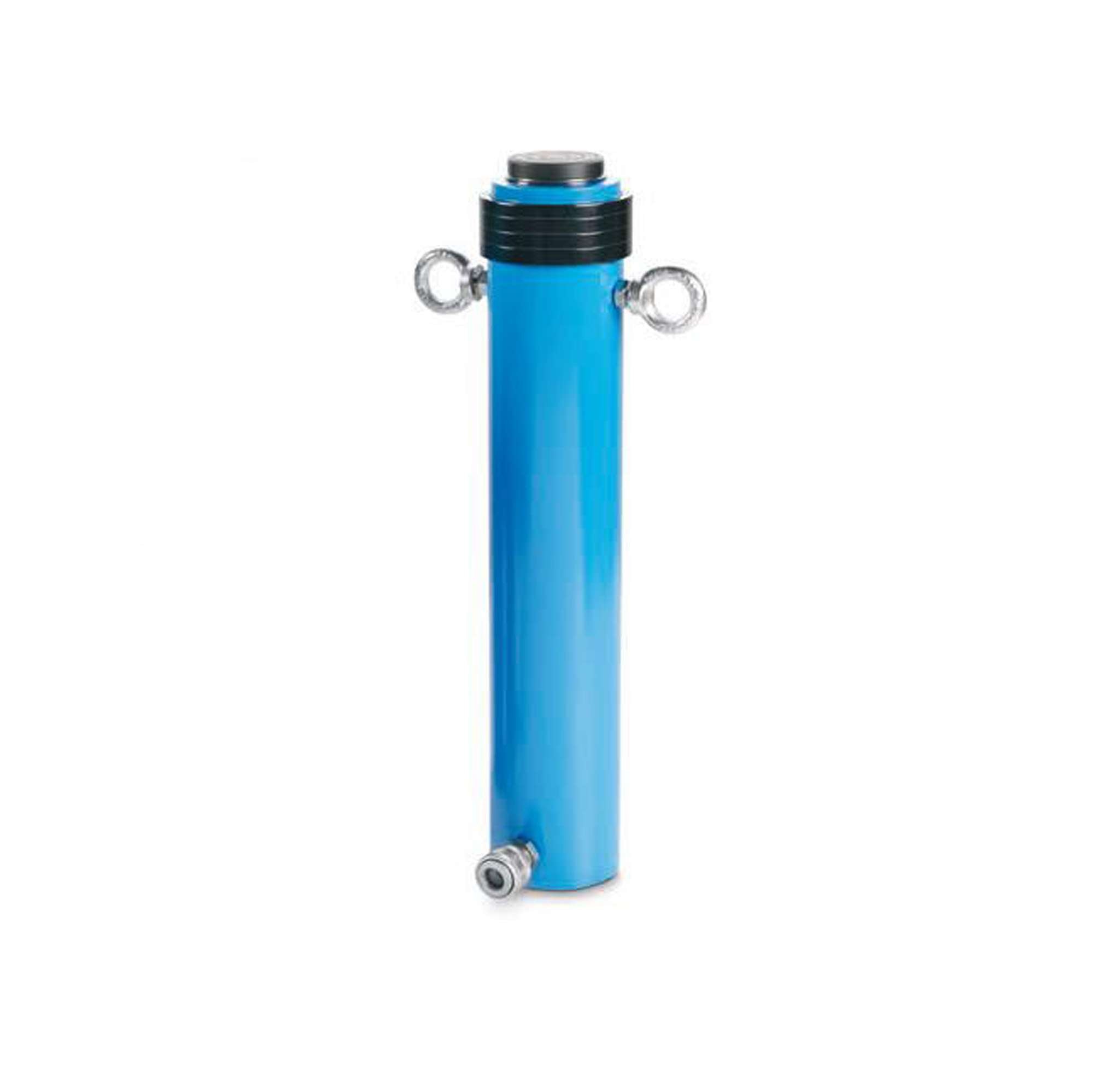

Long-stroke hydraulic cylinder with spring return for lifting up to a maximum of 5 tonnes. Made of high-quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 5t
Working pressure 700bar
Oil capacity 240cm³
Dimensions A 620mm
Dimensions B 370mm
Dimensions C 250mm
Dimensions D 30mm
Dimensions E 20mm
Dimensions F 25mm
Dimensions G M50X2mm
Dimensions H 12mm
Dimensions I M16X2mm
Dimensions L 32mm
Dimensions M M8
Weight 3.5kg
Delivery 10-15 days
