Description

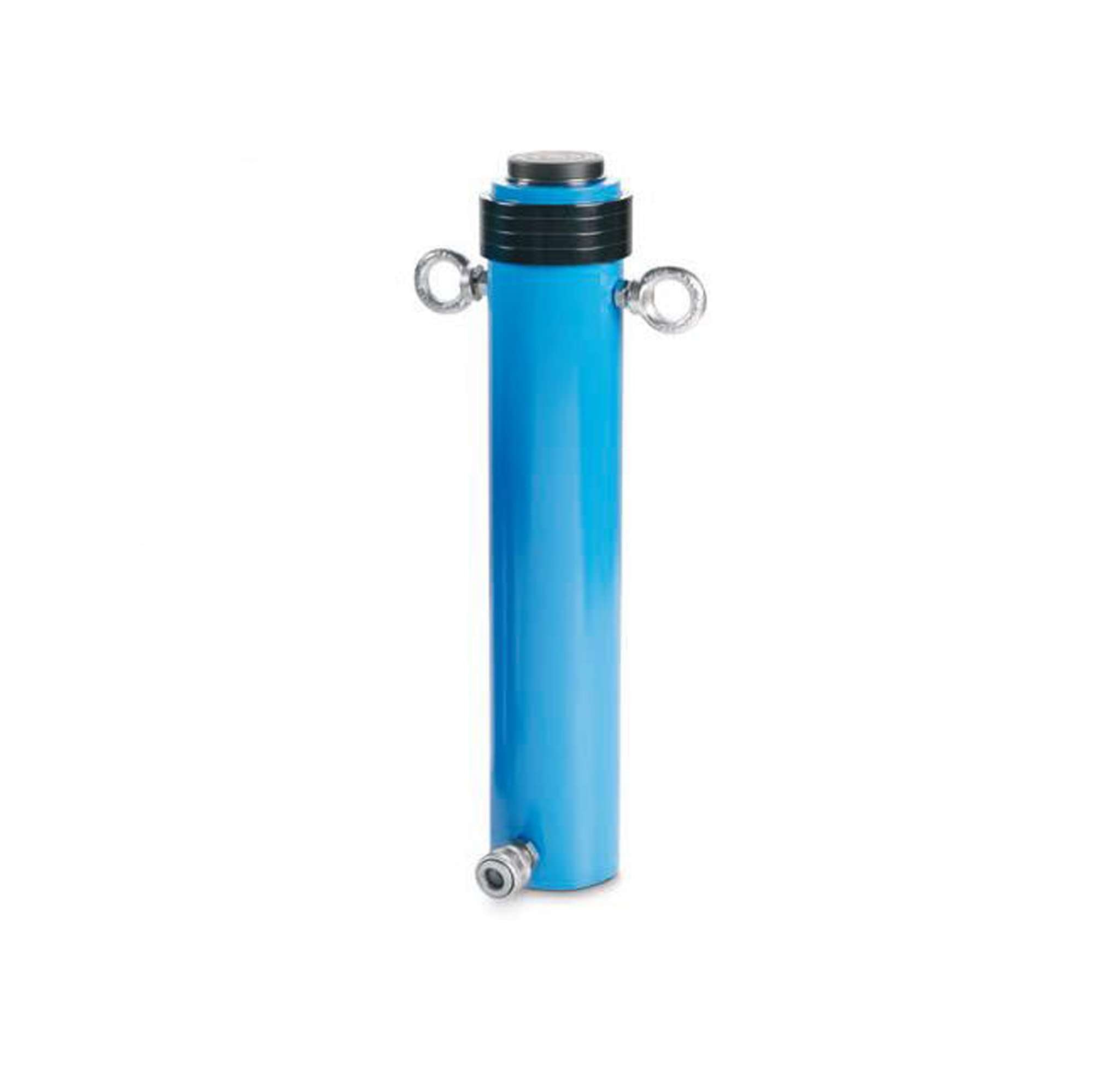

Long-stroke hydraulic cylinder with spring return for lifting up to a maximum of 20 tonnes. Made of high-quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 20t
Working pressure 700bar
Oil capacity 1158.5cm³
Dimensions A 830mm
Dimensions B 480mm
Dimensions C 350mm
Dimensions D 60mm
Dimensions E 20mm
Dimensions F 30mm
Dimensions G M84X2mm
Dimensions H 30mm
Dimensions I M30X3,5mm
Dimensions L 50mm
Dimensions M M10
Weight 18kg
Delivery 10-15 days
