Description

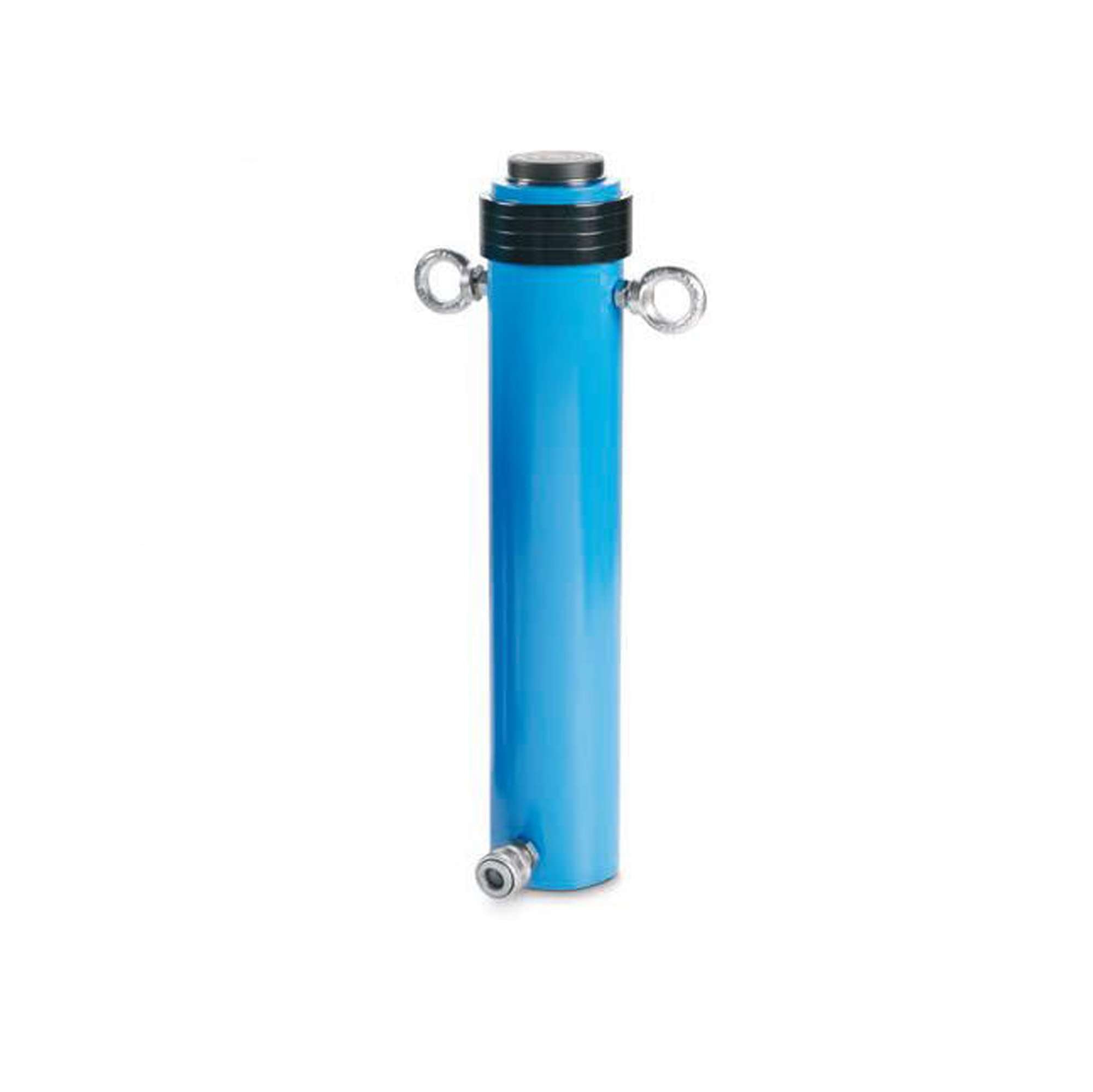

Long-stroke hydraulic cylinder with spring return for lifting up to a maximum of 10 tonnes. Made of high-quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 10t
Working pressure 700bar
Oil capacity 445cm³
Dimensions A 685mm
Dimensions B 405mm
Dimensions C 280mm
Dimensions D 40mm
Dimensions E 20mm
Dimensions F 30mm
Dimensions G M64X2mm
Dimensions H 25mm
Dimensions I M24X3mm
Dimensions L 45mm
Dimensions M M8
Weight 7.6kg
Delivery 10-15 days
