Description
HELITUF®, Osborn corrugated wire.

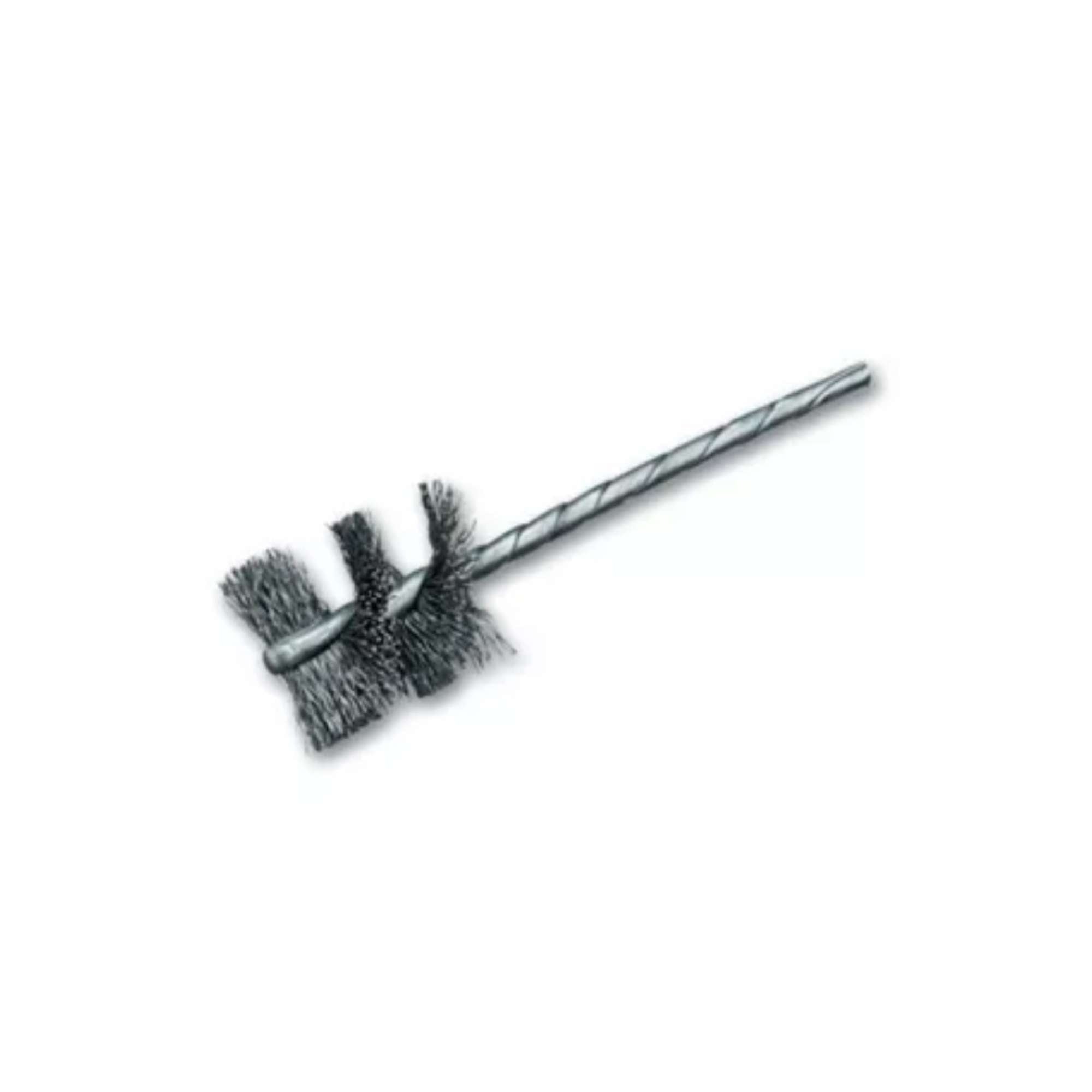

SITUFT hole brush with high-quality, spirally arranged Osborn corrugated wire.
The spiral filament arrangement simulates a pushing motion, and previously cut material is ejected perfectly out of the hole
Brushes can be inserted into drill chucks and tool chucks; they can also be inserted into collet chucks using Helituf holders.
Uniform work
General tip for usage: brush has to have oversize, therefore choose the next in size brush-diameter
Application: On manually operated machines, for cleaning and deburring threaded holes, deburring edges and longitudinal recesses (such as grooves)
Diameter |
Face width |
Filling material |
Filling material Ø |
Stem Ø |
Length |
SKU |
|---|---|---|---|---|---|---|
10 mm |
25 mm |
Steel wire |
0.2 mm |
3.4 mm |
89 mm |
9907-036 023 |
13 mm |
25 mm |
Steel wire |
0.2 mm |
3.4 mm |
89 mm |
9907-036 033 |
16 mm |
25 mm |
Steel wire |
0.2 mm |
3.4 mm |
89 mm |
9907-036 043 |
19 mm |
25 mm |
Steel wire |
0.2 mm |
3.4 mm |
89 mm |
9907-036 053 |
22 mm |
25 mm |
Steel wire |
0.2 mm |
3.18 mm |
89 mm |
9907-036 063 |
25 mm |
25 mm |
Steel wire |
0.2 mm |
3.4 mm |
89 mm |
9907-036 073 |
32 mm |
25 mm |
Steel wire |
0.2 mm |
3.4 mm |
89 mm |
9907-036 093 |
