Description

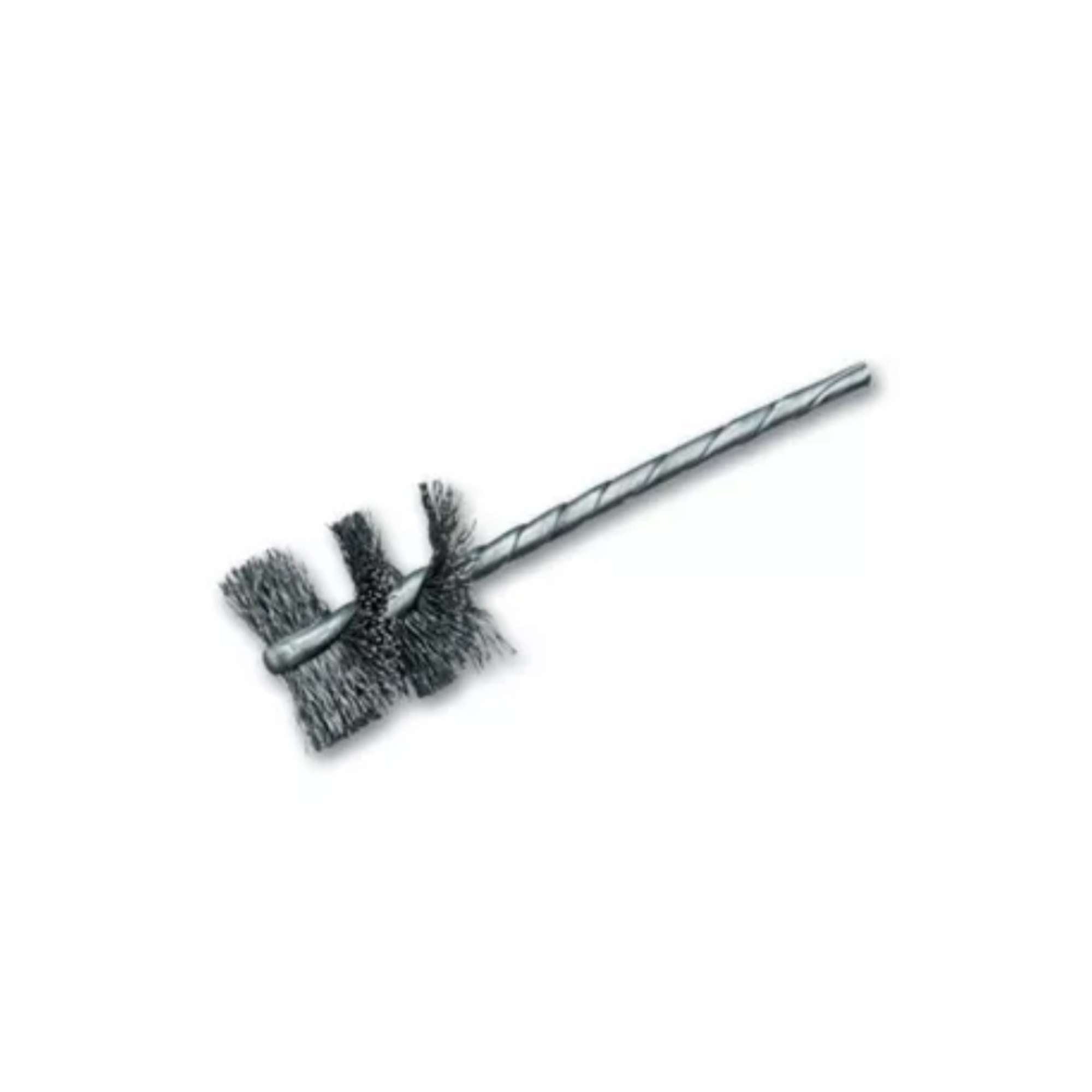

HELITUF, Osborn corrugated wire.
SITUFT hole brush with high-quality, spirally arranged Osborn corrugated wire.
The spiral filament arrangement simulates a pushing motion, and previously cut material is ejected perfectly out of the hole
Brushes can be inserted into drill chucks and tool chucks; they can also be inserted into collet chucks using Helituf holders.
Uniform work
General tip for usage: brush has to have oversize, therefore choose the next in size brush-diameter
Application: On manually operated machines, for cleaning and deburring threaded holes, deburring edges and longitudinal recesses (such as grooves)
SKU | Diametro | Face width | Filling material | Filling material Ø | Seam Ø | Length |
9907-036 012 | 6 mm | 25 mm | Steel wire | 0,13 mm | 3,4 mm | 89 mm |
9907-036 017 | 8 mm | 25 mm | Steel wire | 0,13 mm | 3,18 mm | 89 mm |
9907-036 022 | 10 mm | 25 mm | Steel wire | 0,13 mm | 3,4 mm | 89 mm |
9907-036 27 | 11 mm | 25 mm | Steel wire | 0,13 mm | 3,4 mm | 89 mm |
9907-036 32 | 13 mm | 25 mm | Steel wire | 0,13 mm | 3,4 mm | 89 mm |
9907-036 37 | 14 mm | 25 mm | Steel wire | 0,13 mm | 3,4 mm | 89 mm |
9907-036 42 | 16 mm | 25 mm | Steel wire | 0,13 mm | 3,4 mm | 89 mm |
9907-036 47 | 18 mm | 25 mm | Steel wire | 0,13 mm | 3,4 mm | 89 mm |
9907-036 52 | 19 mm | 25 mm | Steel wire | 0,13 mm | 3,4 mm | 89 mm |
