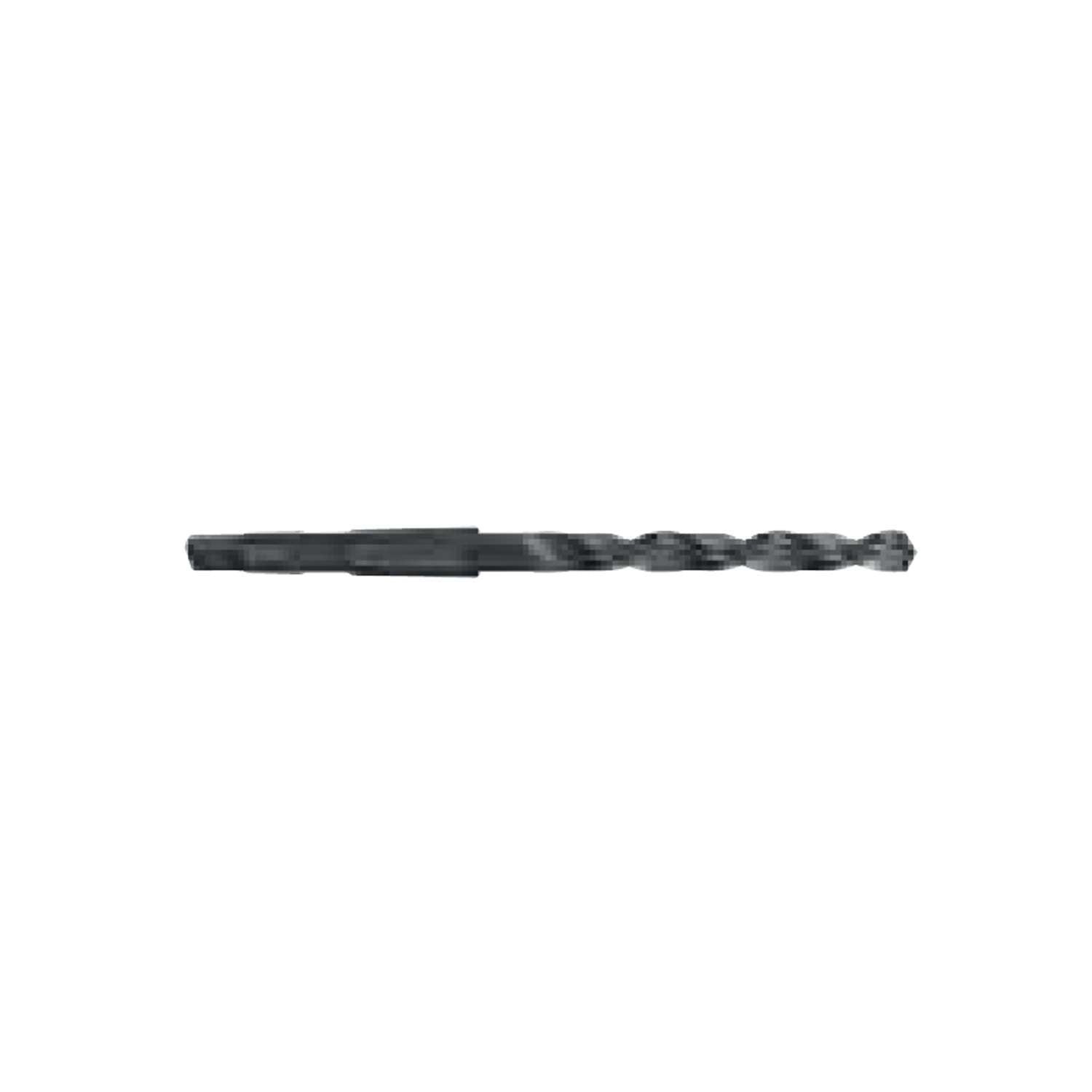

Conical tip for general applications type N in HSS DIN 345 (21-41) - ILIX

IlixSKU: 232_013_IL6168 (21-41)___232_013_IL616825

Ø Drill bit (mm): 25 mm - IL616825
Price:
Sale price$123.00
Availability : 3

Description

N - GENERAL PURPOSE APPLICATIONS - DIN 345 - CATALOGUE 6168

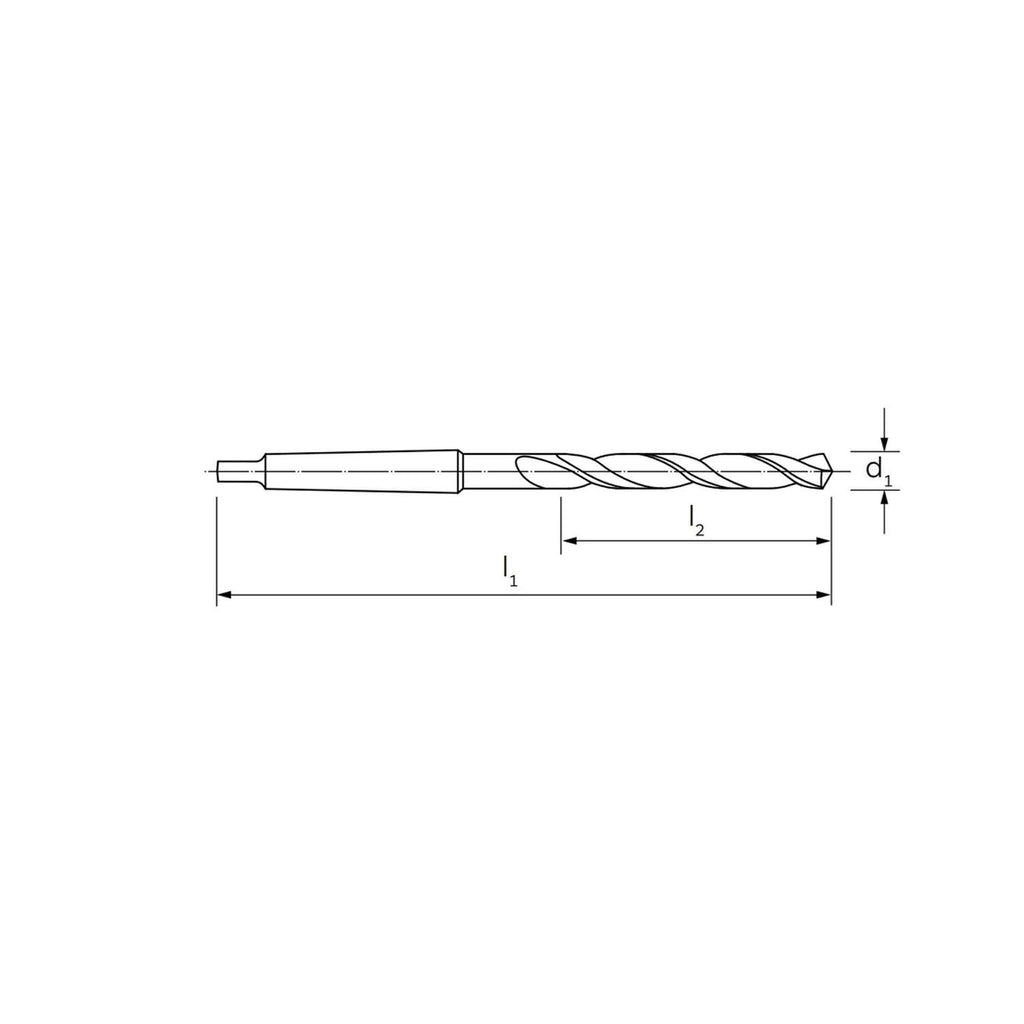

Ø L1 L2 CM Ø POLLICI
21 243 145 2 -
21.2 243 145 2 -
22 248 150 2 -
22.225 248 150 2 7/8
23.25 248 150 2 -
23.75 276 155 3 -
24 281 160 3 -
24.25 281 160 3 -
24.75 281 160 3 -
25 281 160 3 -
25.5 286 165 3 -
25.75 286 165 3 -
26.25 286 165 3
26.75 291 170 3
27 291 170 3
27.25 291 170 3
28 291 170 3
28.75 296 175 3
29.75 296 175 3
30 296 175 3
31.5 301 180 3
32 334 185 4
33.5 334 185 4
39 349 200 4
41 354 205 4
