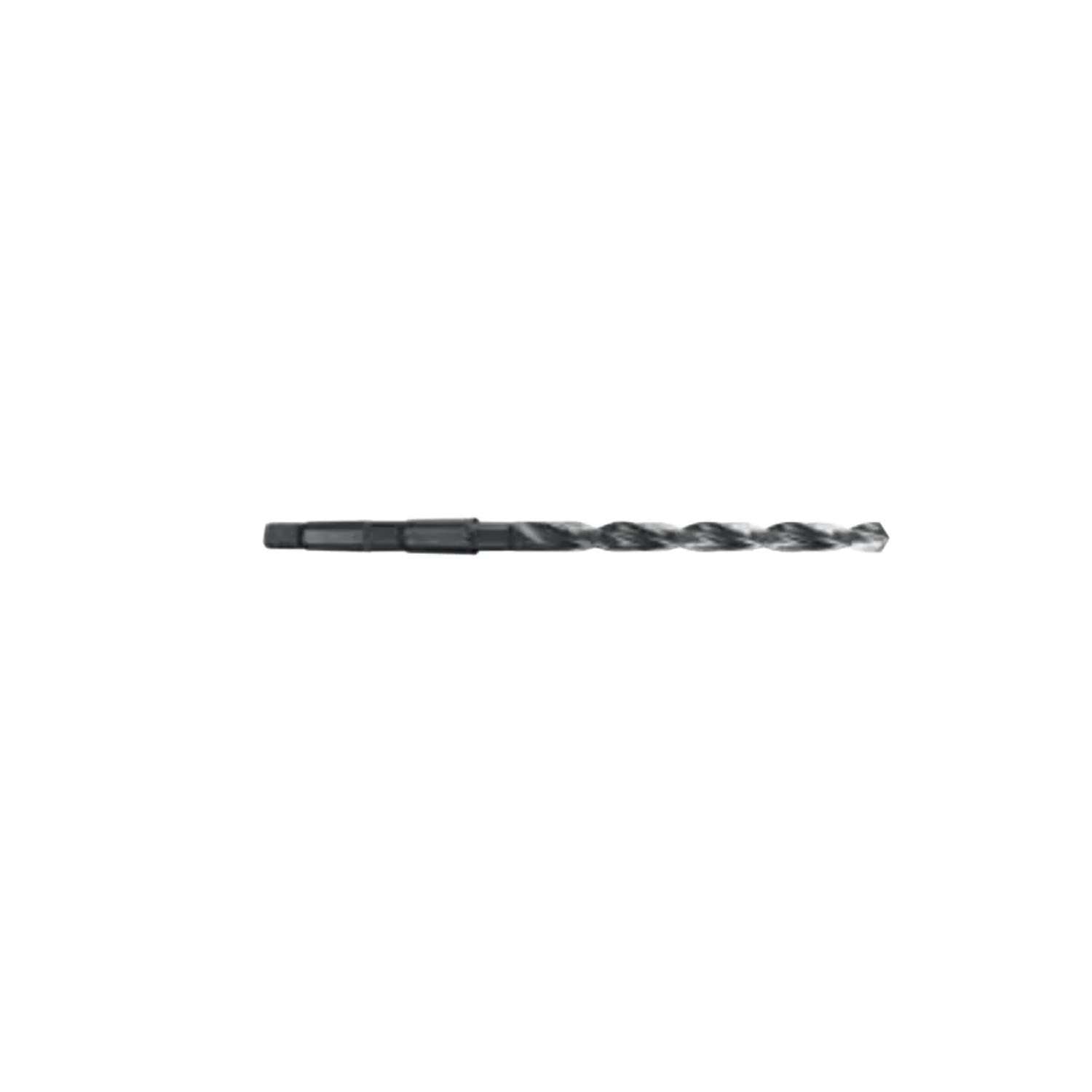

Conical tip for general application DIN 341 type N - ILIX

IlixSKU: 232_013_IL6233___232_013_IL623322

Ø Drill bit: 22 mm - IL623322
Price:
Sale price$165.00
Availability : 3

Description

N - GENERAL PURPOSE APPLICATIONS - DIN 341 - CATALOGUE 6233

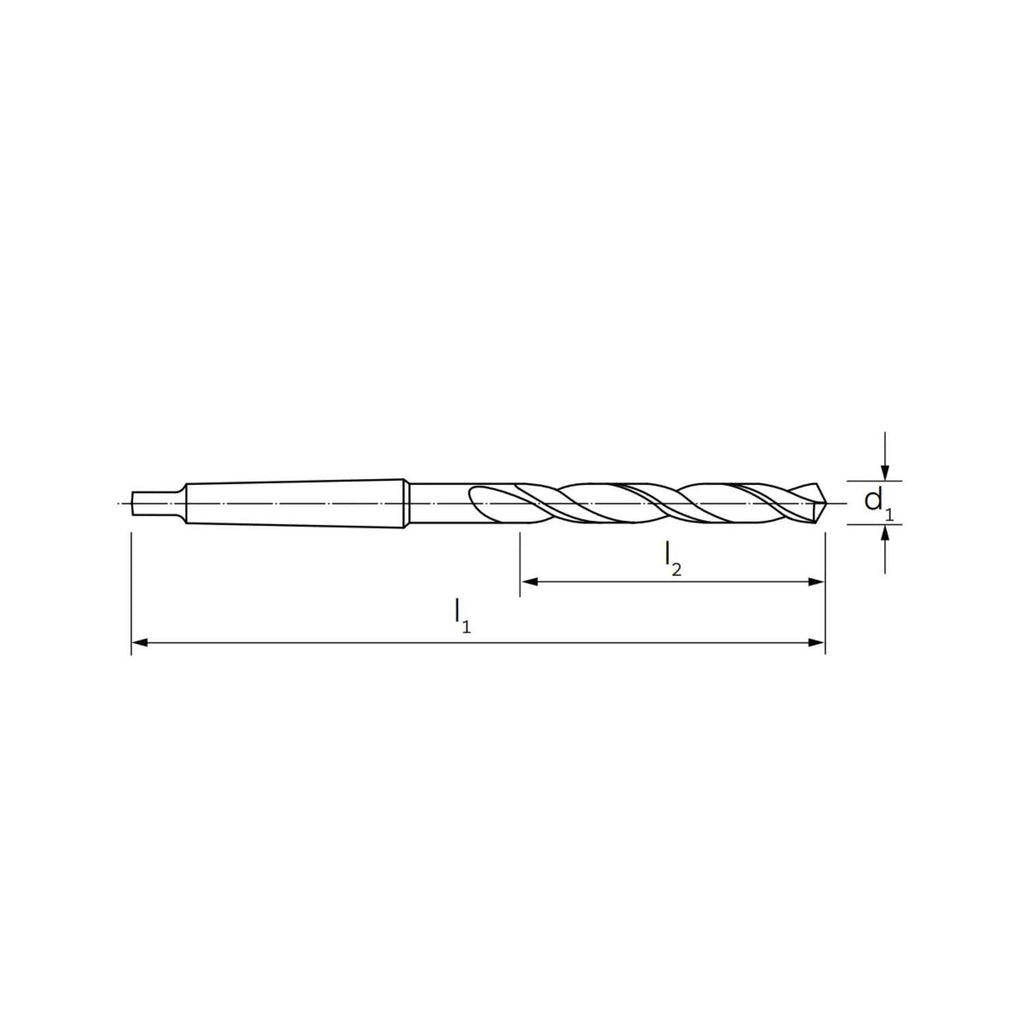

Ø L1 L2 ØNR
5 155 74 1
5.5 161 80 1
6.5 167 86 1
11.5 206 125 1
12.25 215 134 1
13 215 134 1
13.5 223 142 1
14 223 142 1
14.5 245 147 2
15 245 147 2
16 251 153 2
16.5 257 159 2
17 257 159 2
18 263 165 2
18.5 269 171 2
19.5 275 177 2
20 275 177 2
22 289 191 2
25 327 206 3
25.5 335 214 3
40 426 277 4
