Description

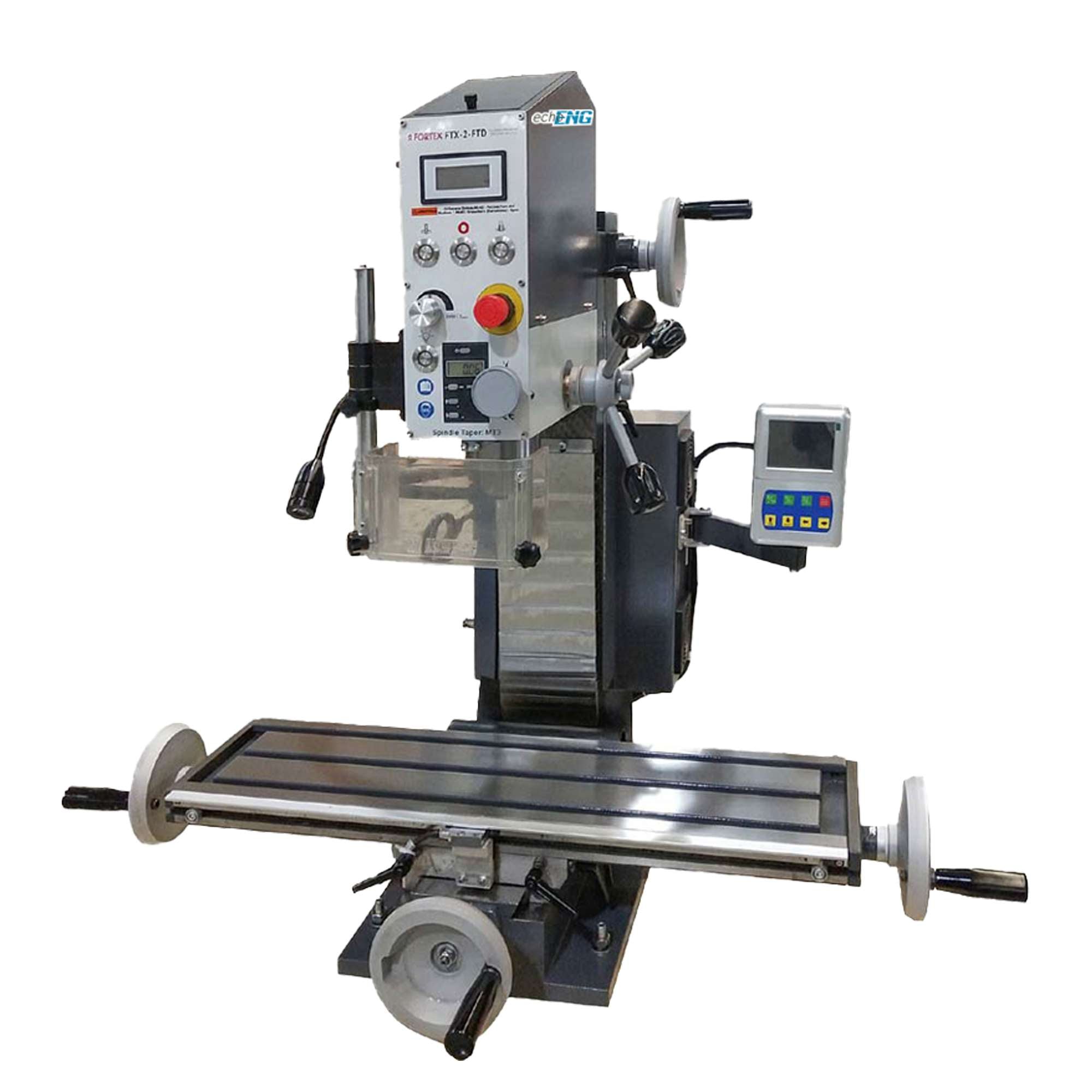

FTX-2-FTD ENG PRO – 25 mm Drilling Milling Machine 230 V Fortex
The FTX-2-FTD ENG PRO is a compact and professional milling machine designed for high-precision drilling and milling operations. Ideal for mechanical workshops, technical laboratories, and professional metalworking. Its robust structure with adjustable dovetail guides ensures stability and accuracy. Compliant with CE regulations.
Main Features
Dovetail guides on the head and table with wedge-type adjustments
Digital LED display for X, Y, Z axes with magnetic scales
Metal cutter guard
Metal protection for the dovetail
Head tilt ±90°
Direct transmission with variable speed
Manufactured in compliance with CE standards
Technical Data
| Specification | Value |
|---|---|
| Voltage | 230 V – F1 |
| Power | 1.1 kW – 1.5 HP |
| Transmission | Direct |
| Speed Range Type | Variable |
| Speed Range | 100 – 2,500 rpm |
| Drilling Capacity | Ø 25 mm |
| Max. Vertical Milling Diameter | Ø 16 mm |
| Max. Horizontal Milling Diameter | Ø 63 mm |
| Distance Spindle to Column | 160 mm |
| Max. Distance Spindle to Table | 370 mm |
| Spindle Taper | Morse MT3 |
| Drilling Depth | 50 mm |
| Longitudinal Travel (X) | 485 mm |
| Cross Travel (Y) | 140 mm |
| T-Slot Size | 3 x 12 mm |
| Table Dimensions | 700 x 180 mm |
| Machine Dimensions | 960 x 580 x 780 mm |
| Packaging Dimensions | 730 x 770 x 900 mm |
| Weight | 123 kg |
