Description

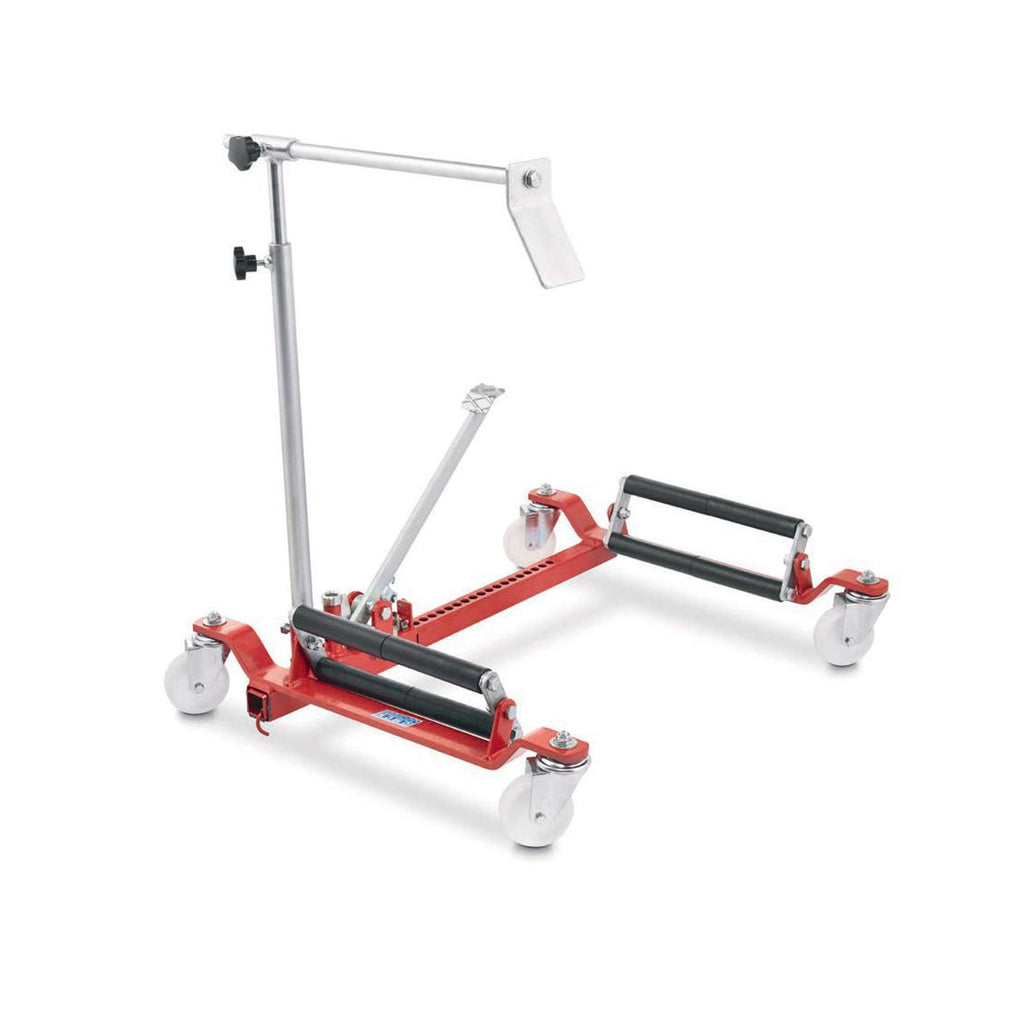

Universal wheel disassembly and assembly tool OMCN 388/B
Universal tool for disassembling, reassembling and handling wheels on heavy vehicles. Particularly suitable for quick and convenient centring of bolts during assembly. The arm allows the load to be raised from a minimum of 795 mm to a maximum of 1350 mm, while the structure supports wheels weighing up to 200 kg.
Equipped with a lift pedal, 4 swivel nylon wheels for more precise positioning and the possibility to extend the support from a minimum of 310mm to a maximum of 815mm.
Indispensable for truck drivers in the event of a puncture.
The product has minimum dimensions of 795x855x800mm
Features:
Lifting capacity of 200kg
Lifting height from a min. of 795mm to a max. of 1350mm
Indispensable for truck drivers in case of puncture
Technical Specifications
Lifting capacity 200kg
Maximum height 1350mm
Min. height 795mm
Minimum width 310mm
Maximum width 815mm
Minimum dimensions 795x855x800mm
Universal tool for disassembling, reassembling and handling wheels on heavy vehicles. Particularly suitable for quick and convenient centring of bolts during assembly. The arm allows the load to be raised from a minimum of 795 mm to a maximum of 1350 mm, while the structure supports wheels weighing up to 200 kg.
Equipped with a lift pedal, 4 swivel nylon wheels for more precise positioning and the possibility to extend the support from a minimum of 310mm to a maximum of 815mm.
Indispensable for truck drivers in the event of a puncture.
The product has minimum dimensions of 795x855x800mm
Features:
Lifting capacity of 200kg
Lifting height from a min. of 795mm to a max. of 1350mm
Indispensable for truck drivers in case of puncture
Technical Specifications
Lifting capacity 200kg
Maximum height 1350mm
Min. height 795mm
Minimum width 310mm
Maximum width 815mm
Minimum dimensions 795x855x800mm
Delivery 10-15 days
