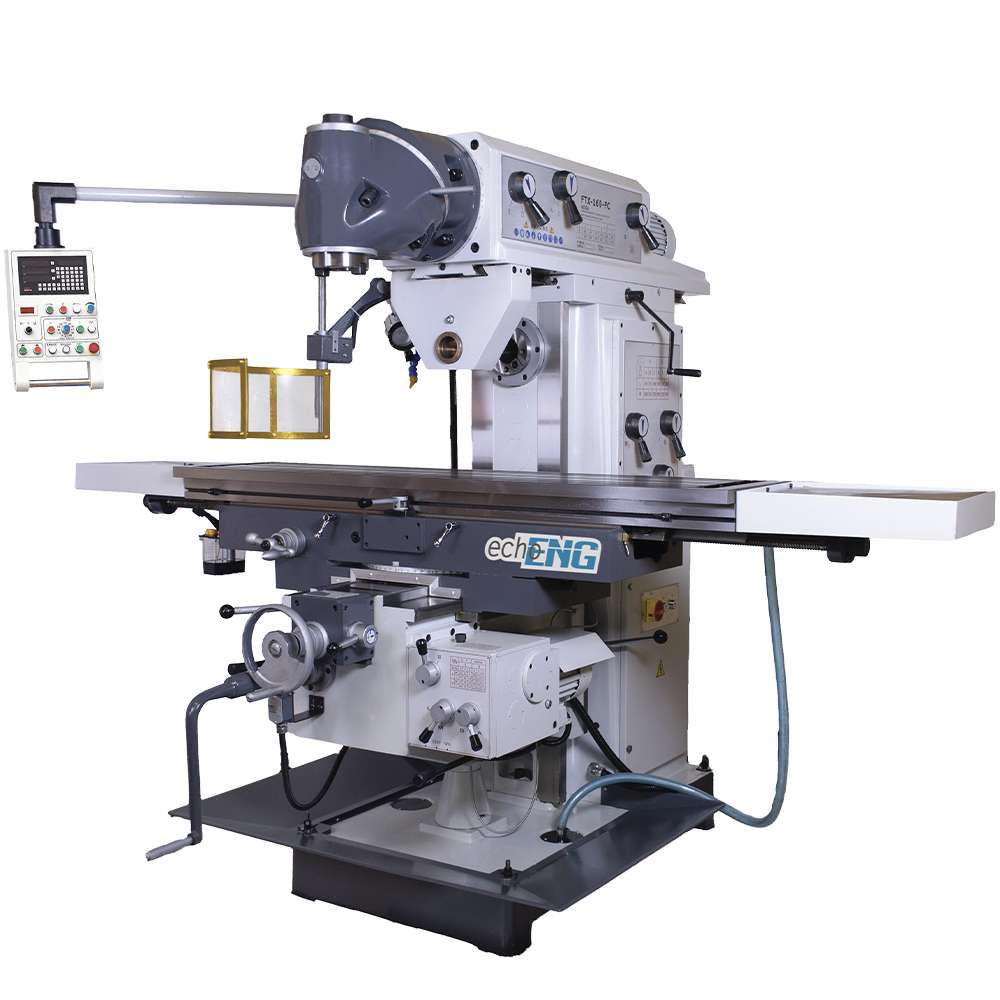

Universal Milling Machine with Digital Readout FTX-160-FC Visual 400V
Product Description
The FTX-160-FC VISUAL 400V is a professional universal milling machine with gear transmission, equipped with a digital readout for X-Y-Z axes and a high-precision table. Designed to ensure strength, accuracy, and safety, it is ideal for mechanical workshops and industrial maintenance.
Main Features
Professional universal milling machine with gear transmission, robust design, and front attachment
High-precision table
Automatic feed on the X-Y-Z table axes
Adjustable head
Centralized lubrication
Standard lamp included
Digital readout on X, Y, and Z axes included as standard
Machine built according to CE standards
Drawbar available upon request
Safety micro switch protection
Technical Specifications
| Feature | Specification |
|---|---|
| Power supply | 400V - 50 Hz |
| Power | 4 kW |
| Transmission | Gears |
| Speed | 60 - 1,750 RPM |
| Digital readout (X, Y, Z) | Yes |
| Max. vertical milling capacity | 28 mm |
| Max. horizontal milling capacity | 150 mm |
| Swiveling head | 360° |
| Spindle travel | 127 mm |
| Tilting head | 45° |
| Morse taper | ISO 50 |
| T-slot dimensions | 3x18 - 80 mm |
| Spindle-to-table distance | 0 - 400 mm |
| Longitudinal travel (X) | 1300 mm |
| Cross travel (Y) | 360 mm |
| Vertical travel (Z) | 400 mm |
| Table dimensions | 1600x360 mm |
| Machine dimensions | 2070x2025x2330 mm |
| Weight | 2,300 kg |
| Product code | 8423640963177 |
Standard Accessories
• ISO 50 taper
• Cooling system
• Chip collection tray
• Halogen lamp
• Tool box
• Set of 8 collets with holder (4, 5, 6, 8, 10, 12, 14, 16 mm)
