Description

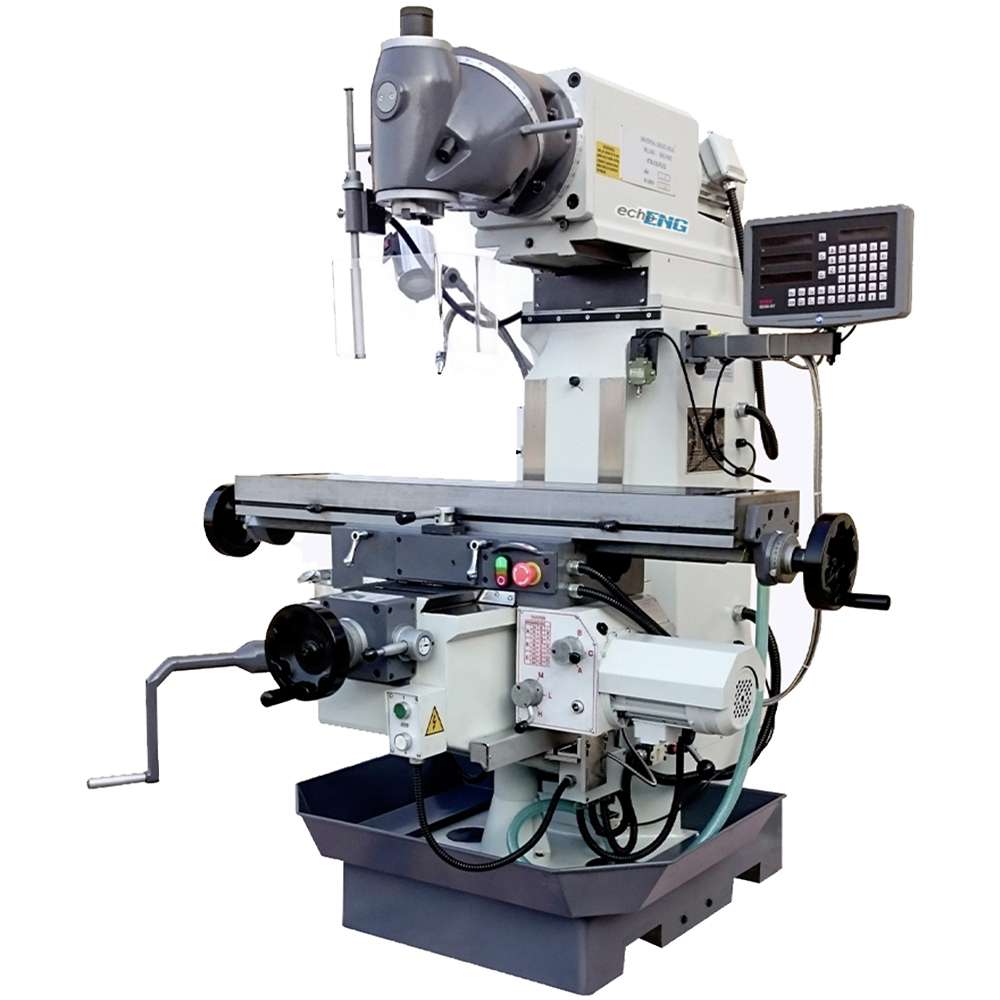

Universal Milling Machine with Digital Readout FTX-125-FC Visual 400V
Product Description
The FTX-125-FC VISUAL 400V is a professional universal milling machine with gear transmission, equipped with a digital readout on the X-Y-Z axes and a high-precision table. Designed to guarantee robustness, precision, and safety, it is ideal for mechanical workshops and industrial maintenance.
Main Features
Professional universal milling machine with gear transmission, robust design, and front mounting
High-precision table
Automatic feed on X-Y-Z axes
Adjustable head
Centralized lubrication
Standard lamp
X, Y, and Z digital readout included as standard
Machine built in compliance with CE standards
Drawbar available upon request
Safety micro-switch protection
Technical Specifications
| Specification | Value |
|---|---|
| Power Supply | 400V - 50Hz |
| Power | 2.2 kW |
| Transmission | Gears |
| Speed Range | 40 - 1,600 R.P.M. |
| Digital Readout (X, Y, Z) | Yes |
| Max. Vertical Milling Capacity | 28 mm |
| Max. Horizontal Milling Capacity | 125 mm |
| Swivel Head | 360° |
| Tilting Head | 45° |
| Morse Taper | ISO 40 |
| T-slot Size | 14 mm |
| Spindle-to-Table Distance | 80 - 500 mm |
| Longitudinal Travel (X-axis) | 600 mm |
| Cross Travel (Y-axis) | 360 mm |
| Vertical Travel (Z-axis) | 400 mm |
| Table Size | 260 x 1,120 mm |
| Machine Dimensions | 1,655 x 1,500 x 1,730 mm |
| Weight | 1,400 kg |
| Product Code | 8423640963153 |
Standard Accessories
ISO 50 taper
Cooling system
Chip tray
Halogen lamp
Tool box
Set of 8 collets with collet holder (sizes: 4, 5, 6, 8, 10, 12, 14, 16 mm)
