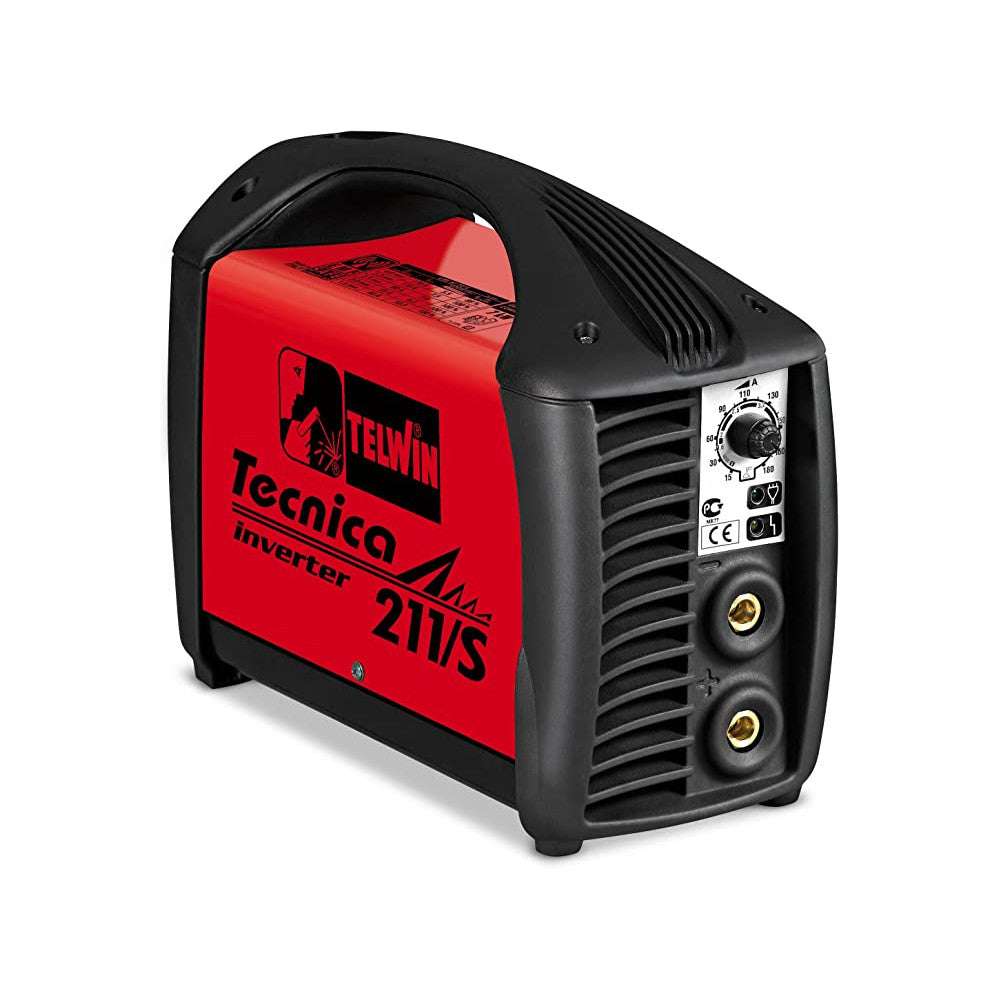

TECNICA 211/S
code 816122
Inverter MMA electrode and TIG welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- compact and light;
- high welding current stability in spite of mains voltage fluctuations;
- arc force, hot start and anti-stick devices;
- thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

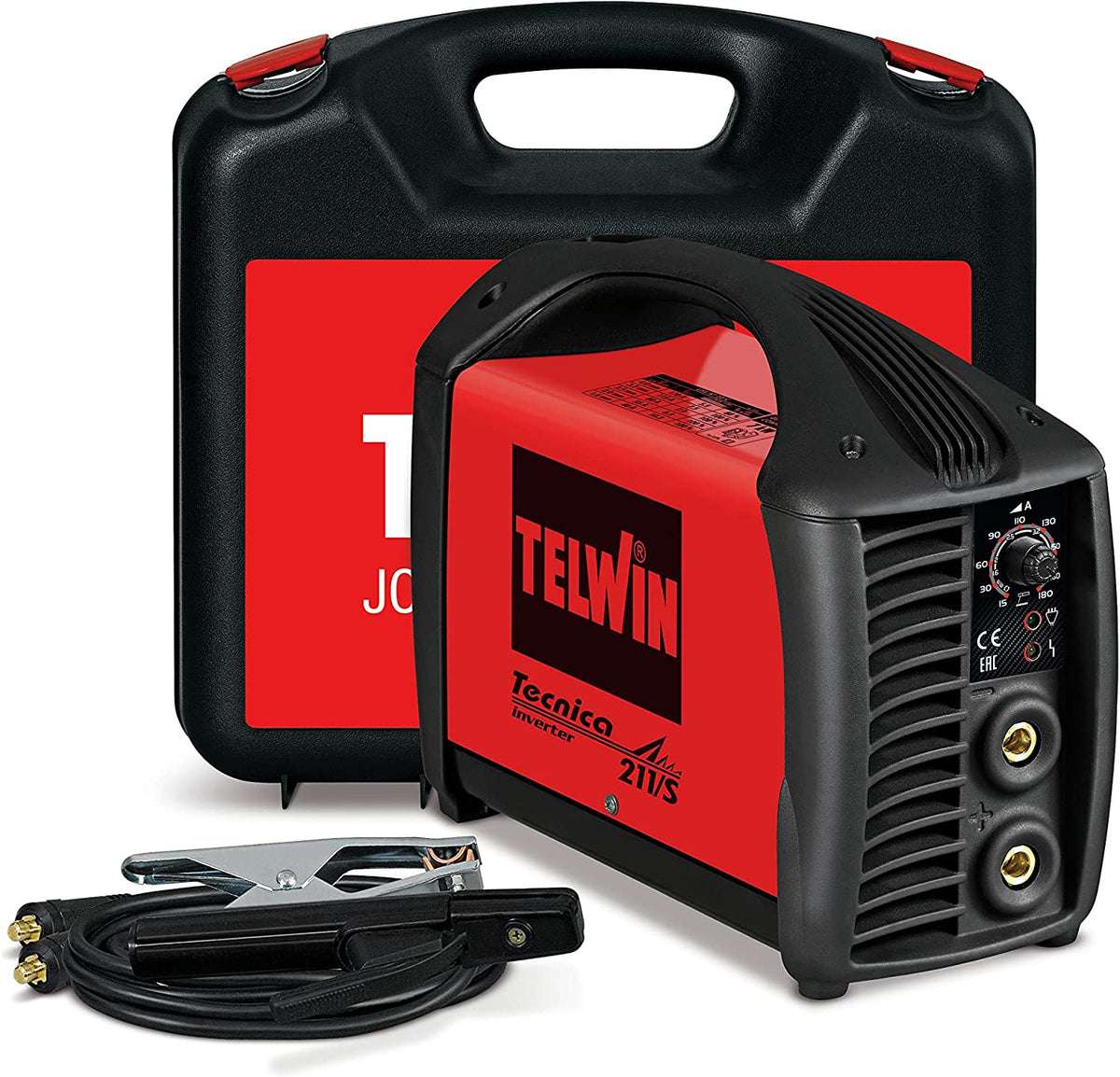

Complete with MMA welding accessories and plastic carry case.
Technical data
MOTORGENERATOR MINIMUM POWER 7 kW
SINGLE PHASE MAINS VOLTAGE 230 V
MAINS FUSE 16 A
MAINS FREQUENCY 50 / 60 Hz
EFFICIENCY 88 %
CURRENT RANGE 15 - 180 A
POWER FACTOR 0,7
%USE (20°C USE) 65% @ 180A
D. USABLE ELECTRODES IN DC 1,6 - 4 mm
MAX CURRENT 170 @ 18 % A
PROTECTION DEGREE IP23
DC CURRENT 105 A
DIMENSIONS 38,5 x 42,5 x 17,5 cm
MAX NO LOAD VOLTAGE 75 V
WEIGHT 6,250
MAX ABSORBED CURRENT 34 A
EAN CODE 800489785091 7
ABSORBED CURRENT AT 60% 19 A
PIECES/PALLET 36 pz/pallet
MAX ABSORBED POWER 5,3 kW
PIECES/PALLET - B 30 pz/pallet B
ABSORBED POWER AT 60% 2,9 kW
Accessories
Included Accessories
Name |
Code |
CABLE TW05V-A 1X025 1.80M PLUG ATLAS |
124589 |
| TOLEDO 250 WORK CLAMP 250A | 712030 |
| PLASTIC CARRY CASE | 322800 |
| DALLAS 300 ELECTRODE HOLDER 300A | 712260 |
