Tecnica 188 MPGE 230V Inverter Welding Machine + Carry Case - Telwin - 816122

TelwinSKU: 188_002_TAGL816212

Price:
Sale price€282,33
Availability : 3

Description

Overview

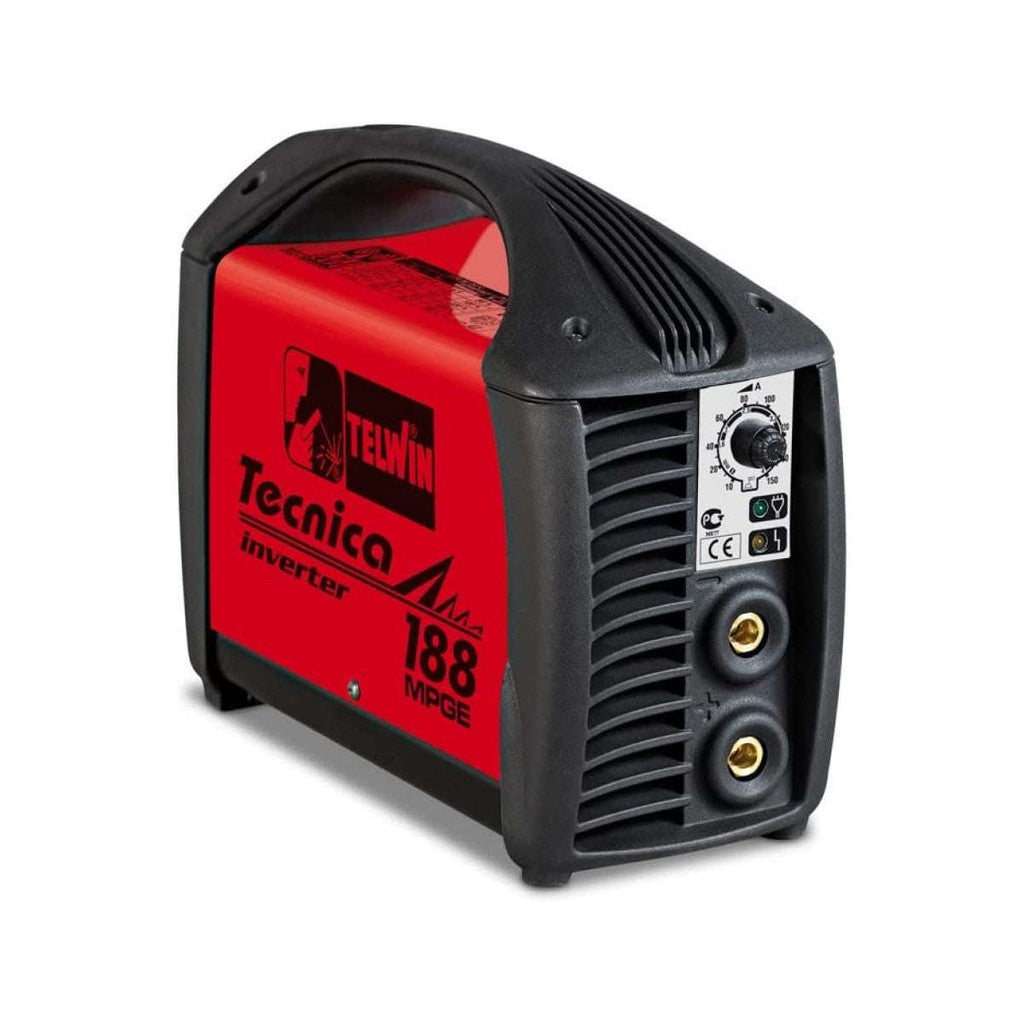

TECNICA 188 MPGE

code 816212

Inverter MMA electrode and TIG welding machine in direct current (DC) with scratch striking.

Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Recommended for motorgenerators, this model grants high performance despite power supply instability, thanks to the MPGE multiprotections: control device of the wave form, filter against input peaks, stabilization ofoscillations.
Features:
- compact and light;
- high welding current stability in spite of mains voltage fluctuations;
- arc force, hot start and anti-stick devices;
- thermostatic, overvoltage, undervoltage, overcurrent protections.

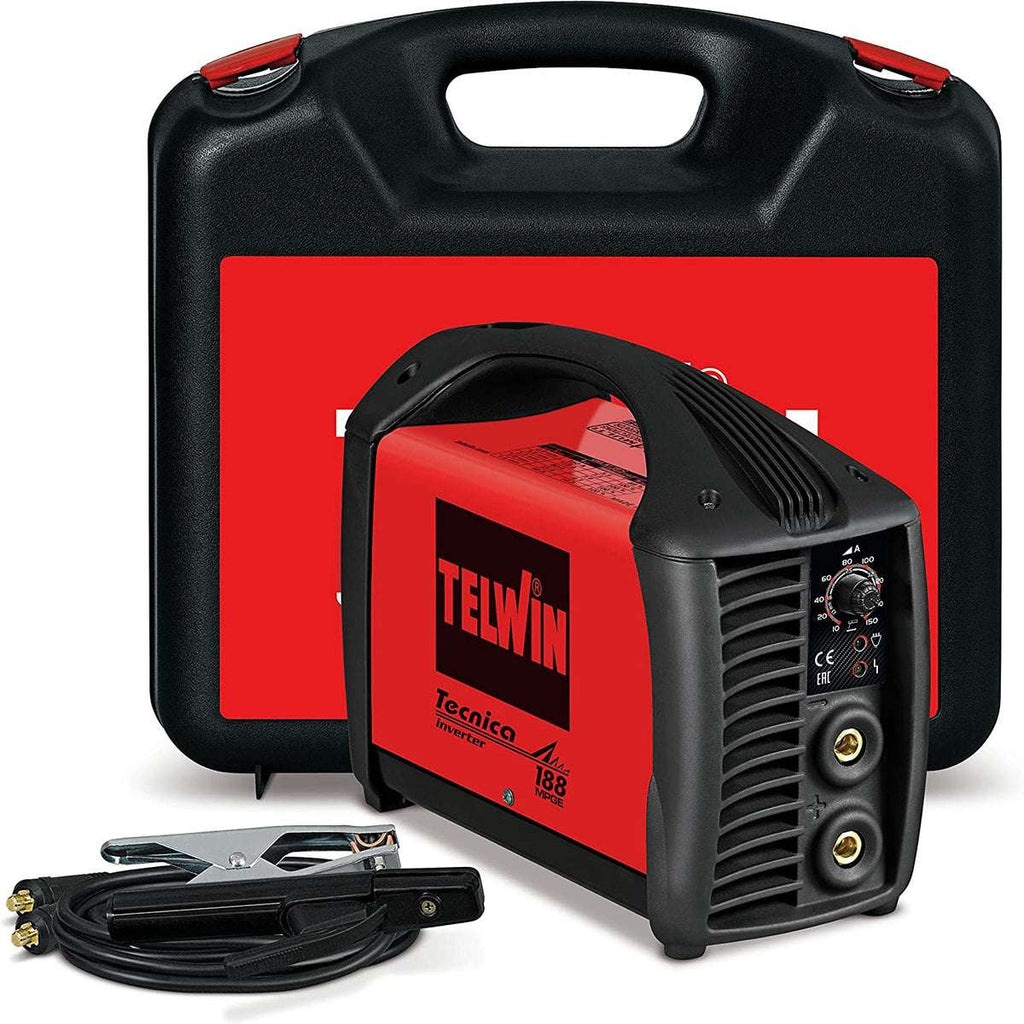

Complete with MMA welding accessories and plastic carry case.



Technical data

TECNICA 188 MPGE

code 816212

MOTORGENERATOR MINIMUM POWER 6 kW
SINGLE PHASE MAINS VOLTAGE 230 V
MAINS FUSE 16 A
MAINS FREQUENCY 50 / 60 Hz
EFFICIENCY 86 %
CURRENT RANGE 10 - 150 A
POWER FACTOR 0,7
%USE (20°C USE) 88% @ 150A
D. USABLE ELECTRODES IN DC 1,6 - 4 mm
MAX CURRENT 140 @ 25 % A
PROTECTION DEGREE IP23
DC CURRENT 95 A
DIMENSIONS 38 x 42 x 17 cm
MAX NO LOAD VOLTAGE 75 V
WEIGHT 7
MAX ABSORBED CURRENT 28 A
EAN CODE 800489782871 8
ABSORBED CURRENT AT 60% 17 A
PIECES/PALLET 36 pz/pallet
MAX ABSORBED POWER 4,2 kW
PIECES/PALLET - B 30 pz/pallet B
ABSORBED POWER AT 60% 2,6 kW



Accessories

Included Accessories

Nome Codice
CABLE TW05V-A 1X025 1.80M PLUG ATLAS 124589
PLASTIC CARRY CASE 322800
TOLEDO 250 WORK CLAMP 250A 712030
DALLAS 300 ELECTRODE HOLDER 300A 712260
