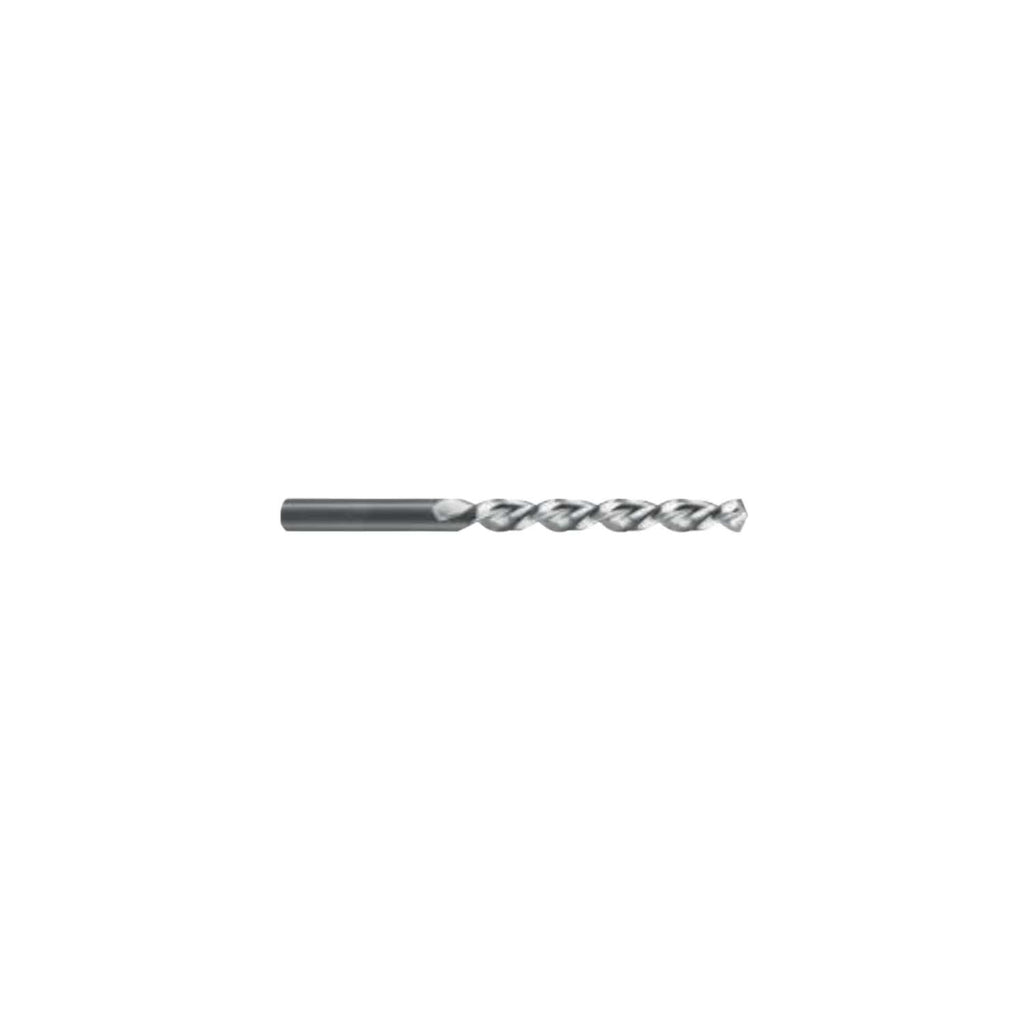

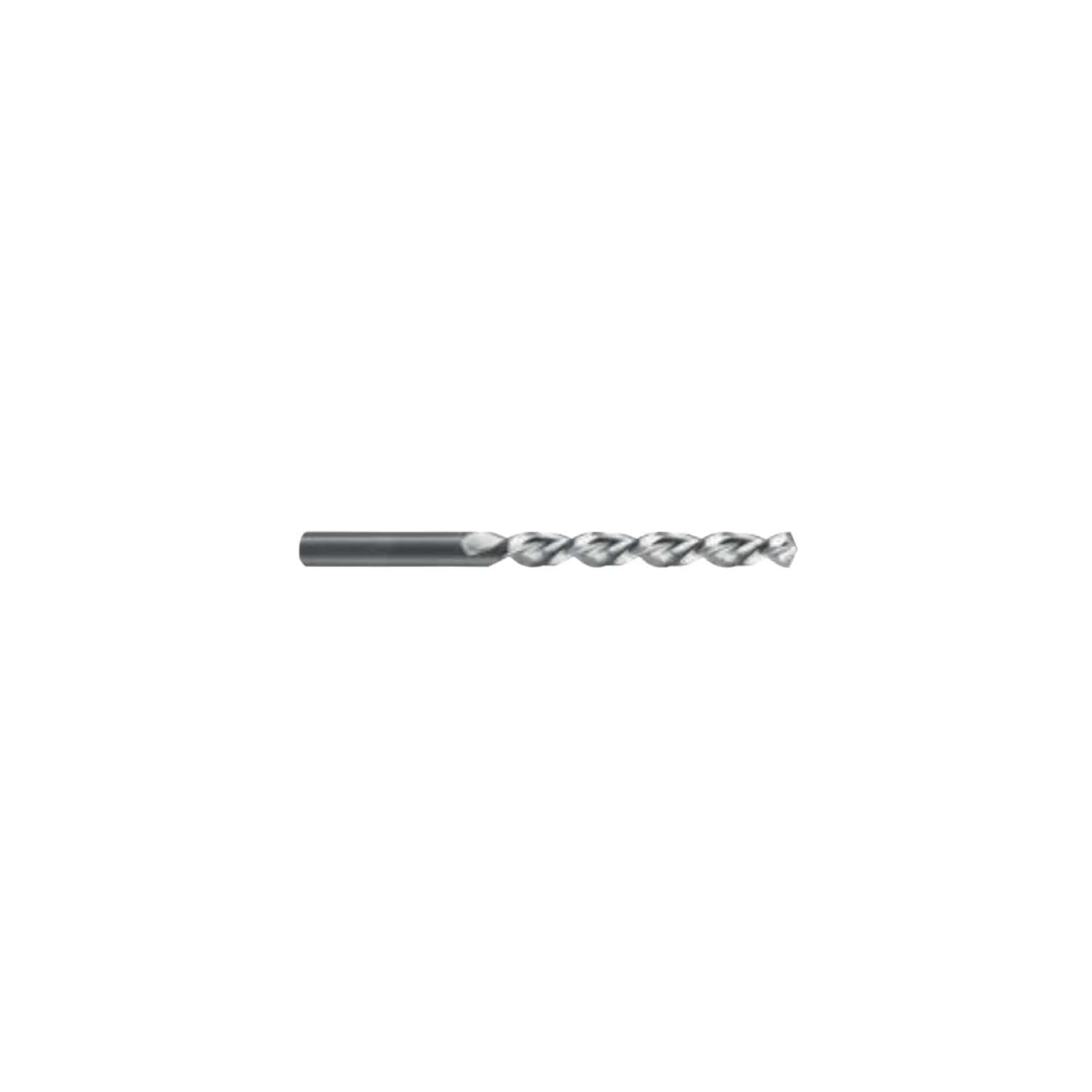

Specific cylindrical drill bit deep drilling type STL DIN 338 (1,5-4,9)mm - ILIX

IlixSKU: 232_013_IL6209 (1,5-4,9)___232_013_IL62093,2
Ø Drill bit (mm): 3,2 mm - IL62093,2
Price:
€12,90
Availability : 3
Register to buy

Description

STL - DEEP HOLE DRILLING SPECIFICATION - DIN 338 - CATALOGUE 6209

Material: HSS

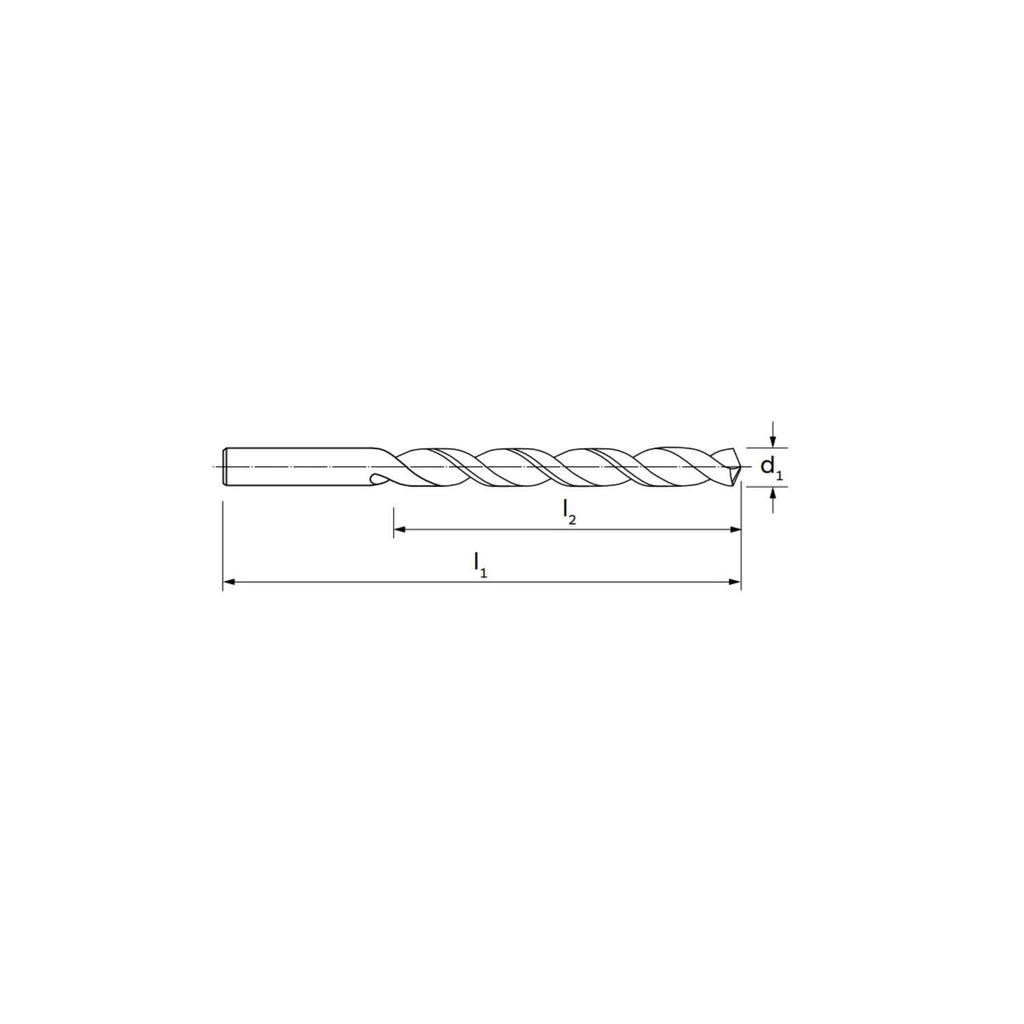

Ø L1 L2
1,5 40 18
1,7 43 20
1,8 46 22
2 49 24
2,2 53 27
2,3 53 27
2,4 57 30
2,5 57 30
2,6 57 30
2,7 61 33
2,9 61 33
3 61 33
3,2 65 36
3,2 65 36
3,3 65 36
3,5 70 39
3,6 70 39
3,8 75 43
3,9 75 43
4,4 80 47
4,5 80 47
4,6 80 47
4,7 80 47
4,9 86 52
