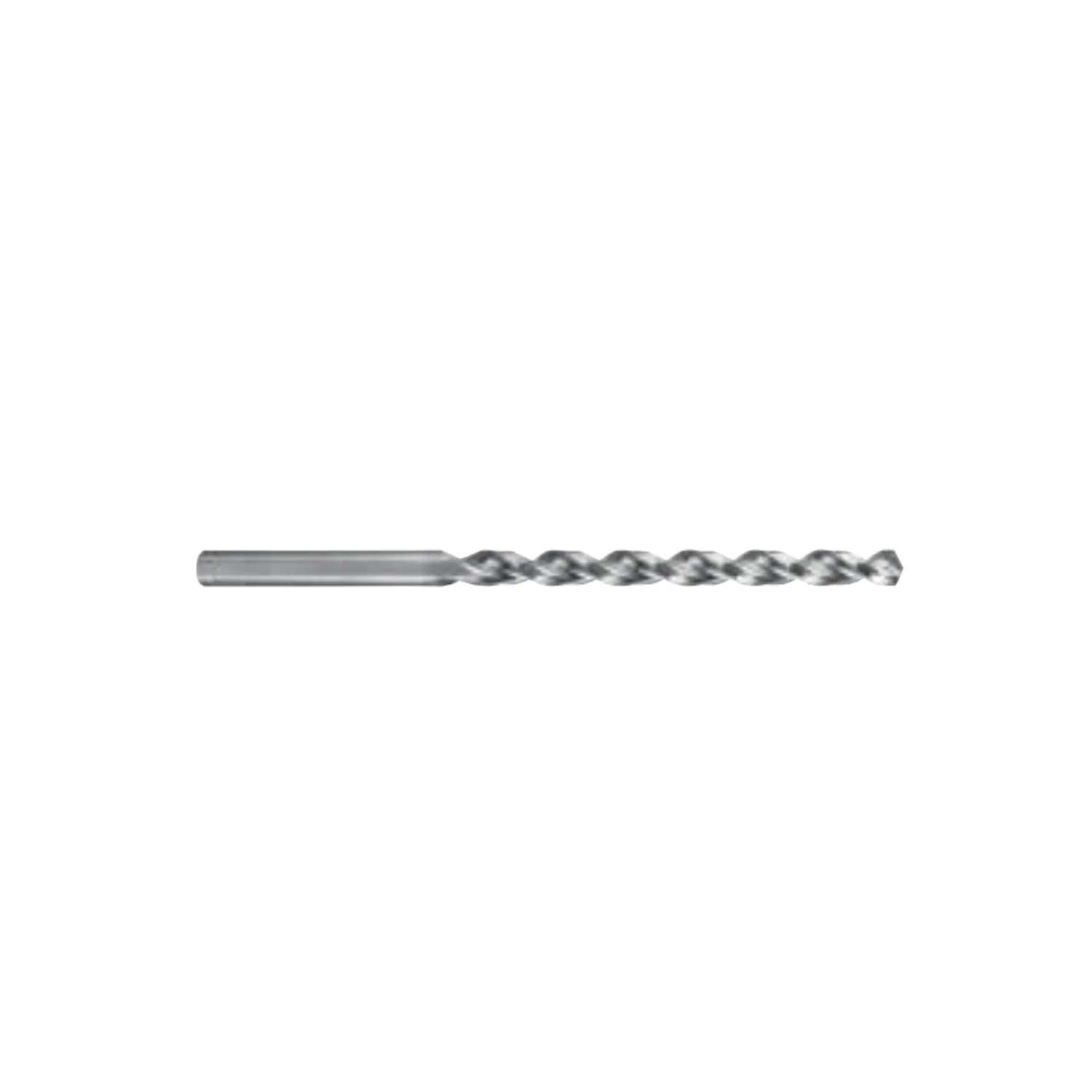

Specific cylindrical drill bit deep drilling DIN 340 type STL (4,1 - 7) ILIX

IlixSKU: 232_013_IL6173 (4,1-7)___232_013_IL61734,1

Ø Drill bit (mm): 4,1 mm - IL61734,1
Price:
Sale price$19.00
Availability : 3

Description

STL - DEEP HOLE DRILLING SPECIFICATION - DIN 340 - CATALOGUE 6173

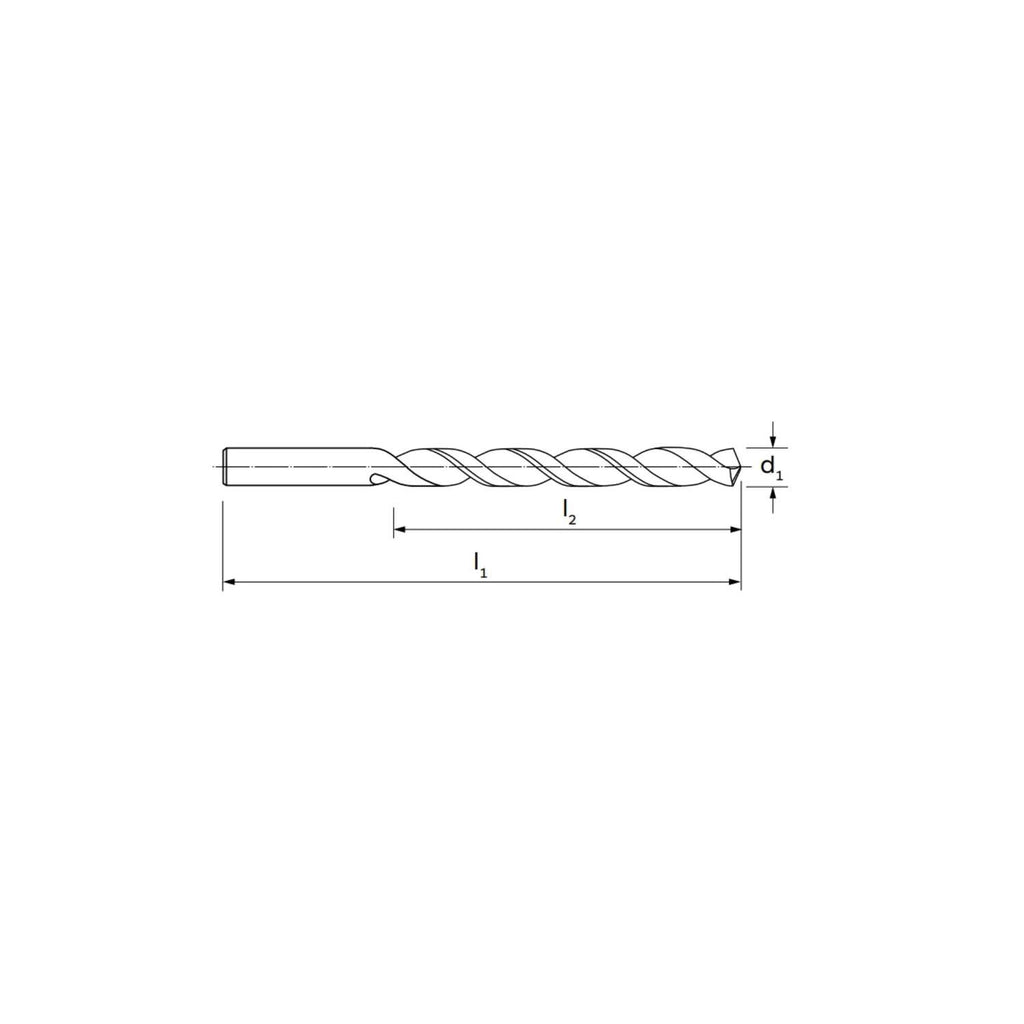

Ø L1 L2
4.1 119 78
4.2 119 78
4.3 126 82
4.4 126 82
4.5 126 82
4.6 126 82
4.7 126 82
4.8 132 87
4.9 132 87
5 132 87
5.1 132 87
5.2 132 87
5.3 132 87
5.4 139 91
5.5 139 91
5.6 139 91
5.7 139 91
5.8 139 91
5.9 139 91
6 139 91
6.1 148 97
6.2 148 97
6.3 148 97
6.4 148 97
6.5 148 97
6.6 148 97
6.7 148 97
6.8 156 102
6.9 156 102
7 156 102
