Specific cylinder bit 61311 for deep drilling DIN 1897 type STL (1-4) - ILIX

IlixSKU: 232_013_IL6131 (1-4)___232_013_IL61311,6
Ø Drill bit (mm): 1,6 mm - IL61311,6
Price:
€5,33
Availability : 3
Register to buy

Description

STL - DEEP HOLE DRILLING SPECIFICATION - DIN 1897 - CATALOGUE 6131

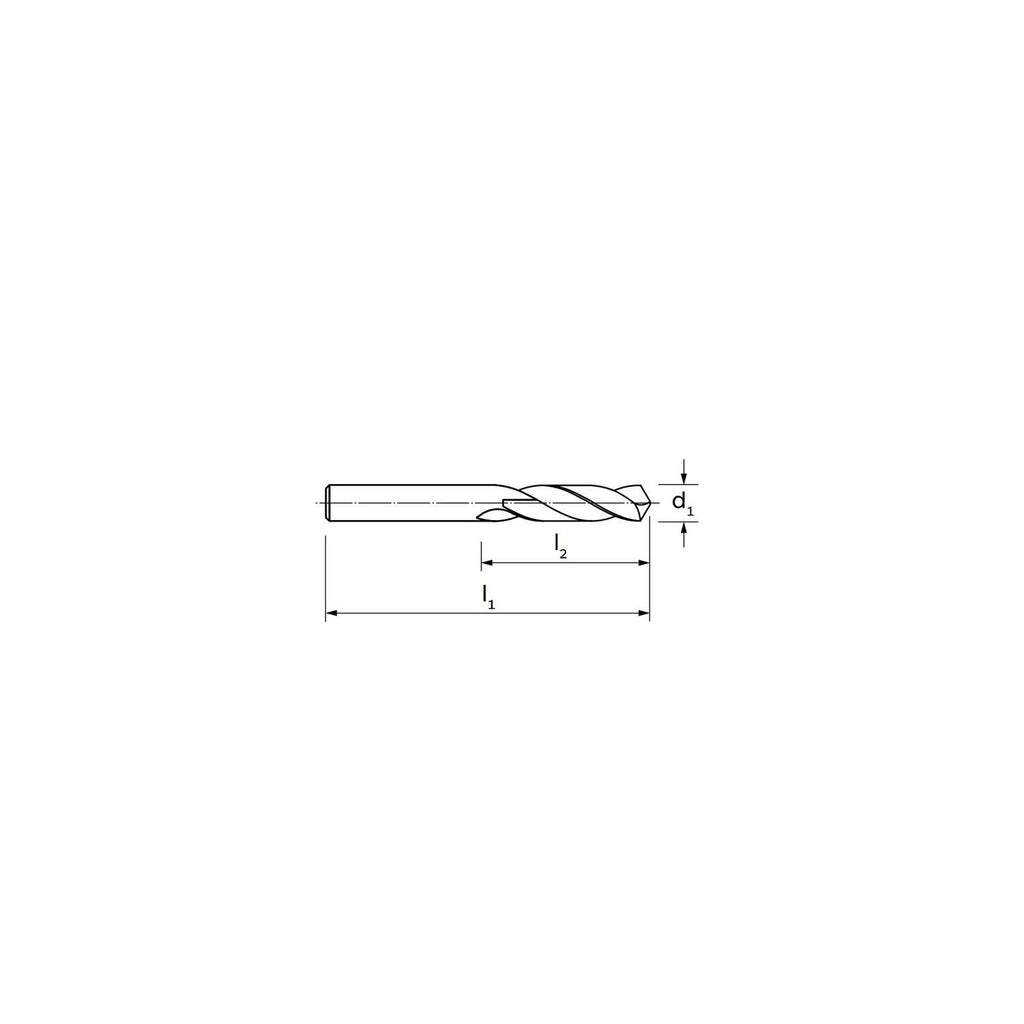

Ø L1 L2 ØNR Ø POLLICI
1 26 6 - -
1.1 28 7 - -
1.2 30 8 - -
1.3 30 8 - -
1.4 32 9 - -
1.5 32 9 - -
1.6 34 10 - -
1.7 34 10 - -
1.8 36 11 - -
2 38 12 - -
2.2 40 13 - -
2.3 40 13 - -
2.4 43 14 - -
2.5 43 14 - -
2.6 43 14 - -
2.7 46 16 - -
2.779 46 16 - 7/64
2.8 46 16 - -
2.819 46 16 34 -
2.9 46 16 - -
3 46 16 - -
3.048 49 18 31 -
3.1 49 18 - -
3.3 49 18 - -
3.4 52 20 - -
3.5 52 20 - -
3.6 52 20 - -
3.7 52 20 - -
3.8 55 22 - -
3.9 55 22 - -
4 55 22 - -
