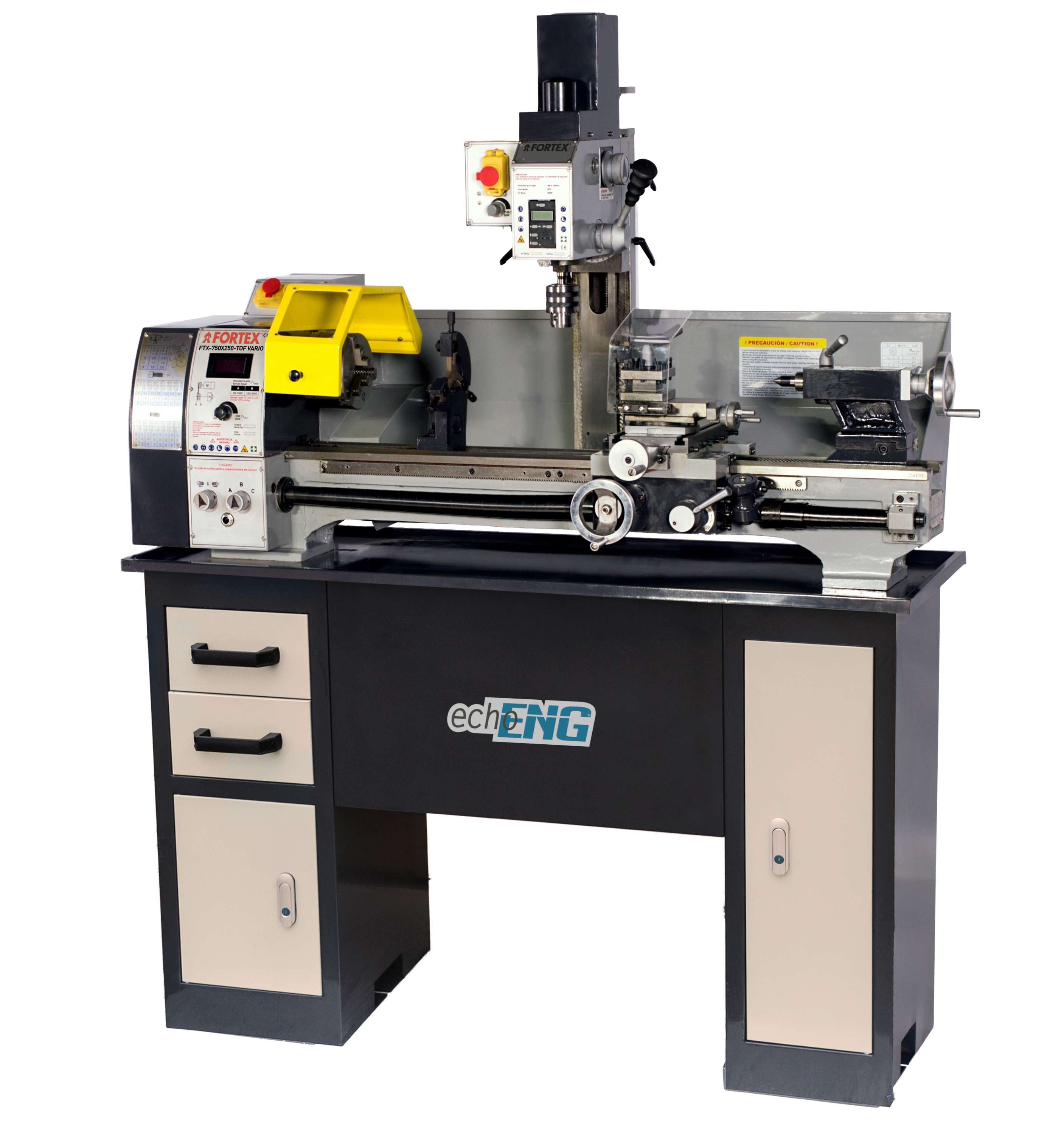

Lathe-Milling Machine Combination 3-Jaw Chuck Ø125 mm – FTX-750x250-TOF VARIO ENG PRO
Product Description
The FTX-750x250-TOF VARIO ENG PRO is a compact and versatile lathe-milling machine combination, designed for precise turning and milling operations.
With its height-adjustable and ±90° tilting milling head, variable speed control, and precision spindle on tapered roller bearings, it offers maximum flexibility and accuracy for every application.
The hardened and ground double V-guides ensure stability, while safety features such as the emergency stop button, spindle and tool post guards, and threading indicator ensure safe operation in compliance with CE standards.
Main features:
Milling head adjustable in height and tiltable ±90º
Variable speed from 50 to 2000 R.P.M.
Hardened and ground double V-guides
Precision spindle on tapered roller bearings
Reversible leadscrew for left-hand manual threading
Integrated spindle and tool post guards
Electronic speed control with digital speed display
Digital depth readout
Powerful and quiet brushless motor
Emergency stop button
Manufactured according to CE standards
Standard included accessories:
✔️ 3-Jaw Chuck Ø125 mm
✔️ Stand
✔️ Fixed steady rest
✔️ Follow rest
✔️ Back plate
✔️ Dead centers MT4 and MT2
✔️ Set of tools
✔️ Leadscrew telescopic cover
Technical Specifications – Milling Machine
| Features | Value |
|---|---|
| Input voltage | 230V - 50 Hz |
| Power | 0.5 kW |
| Transmission | Gears |
| Nº of speeds | Variable |
| Speed range | 50 – 2250 R.P.M. |
| Max. drilling capacity | 16 mm |
| Max. milling capacity | 16 mm |
| Morse taper | MT2 |
| Spindle vertical travel | 50 mm |
| Max. spindle-to-table distance | 280 mm |
| Max. spindle-to-column distance | 170 mm |
Technical Specifications – Lathe
| Features | Value |
|---|---|
| Input voltage | 230V - 50 Hz |
| Power | 1.1 kW |
| Speed range | 50 – 2000 R.P.M. |
| Max. swing over bed | 250 mm |
| Max. swing over cross slide | 140 mm |
| Spindle bore | 26 mm |
| Distance between centers | 750 mm |
| Spindle taper | MT4 |
| Tailstock taper | MT2 |
| Tailstock sleeve diameter | 30 mm |
| Tailstock sleeve travel | 70 mm |
| Longitudinal feeds range | 0.07 – 0.40 mm/rev |
| Metric threads range | 18 pitches / 0.2 – 3.5 mm |
| Inch threads range | 21 pitches / 8 – 56 TPI |
| Net weight | 180 kg |
| Machine dimensions | 1520 x 670 x 930 mm |
| EAN | 8423640093270 |
