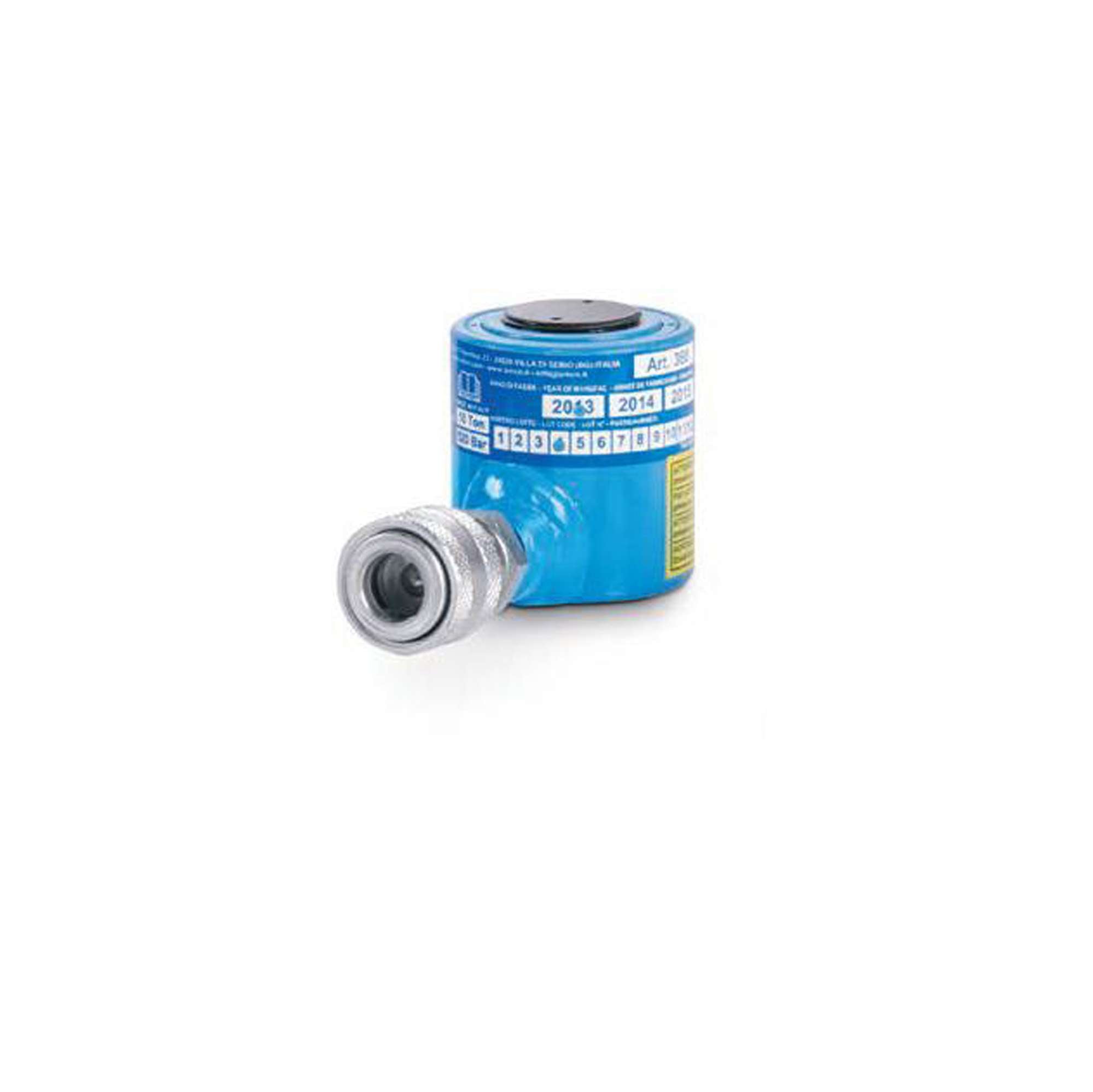

Single-acting hydraulic cylinder 5 ton with spring return 76mm - OMCN 359/M

Space-saving hydraulic cylinder with spring return for lifting up to a maximum of 5 tonnes. Made of high quality materials.

The maximum working pressure is 700 bar and the product weight is 0.6 kg.

The table below shows the features of the OMCN jack.

Technical Specifications
Capacity 5t
Working pressure 700bar
Oil capacity 15.3cm³
Dimensions A 76mm
Dimensions B 60mm
Dimensions C 16mm
Dimensions D 30mm
Weight 0.6kg
