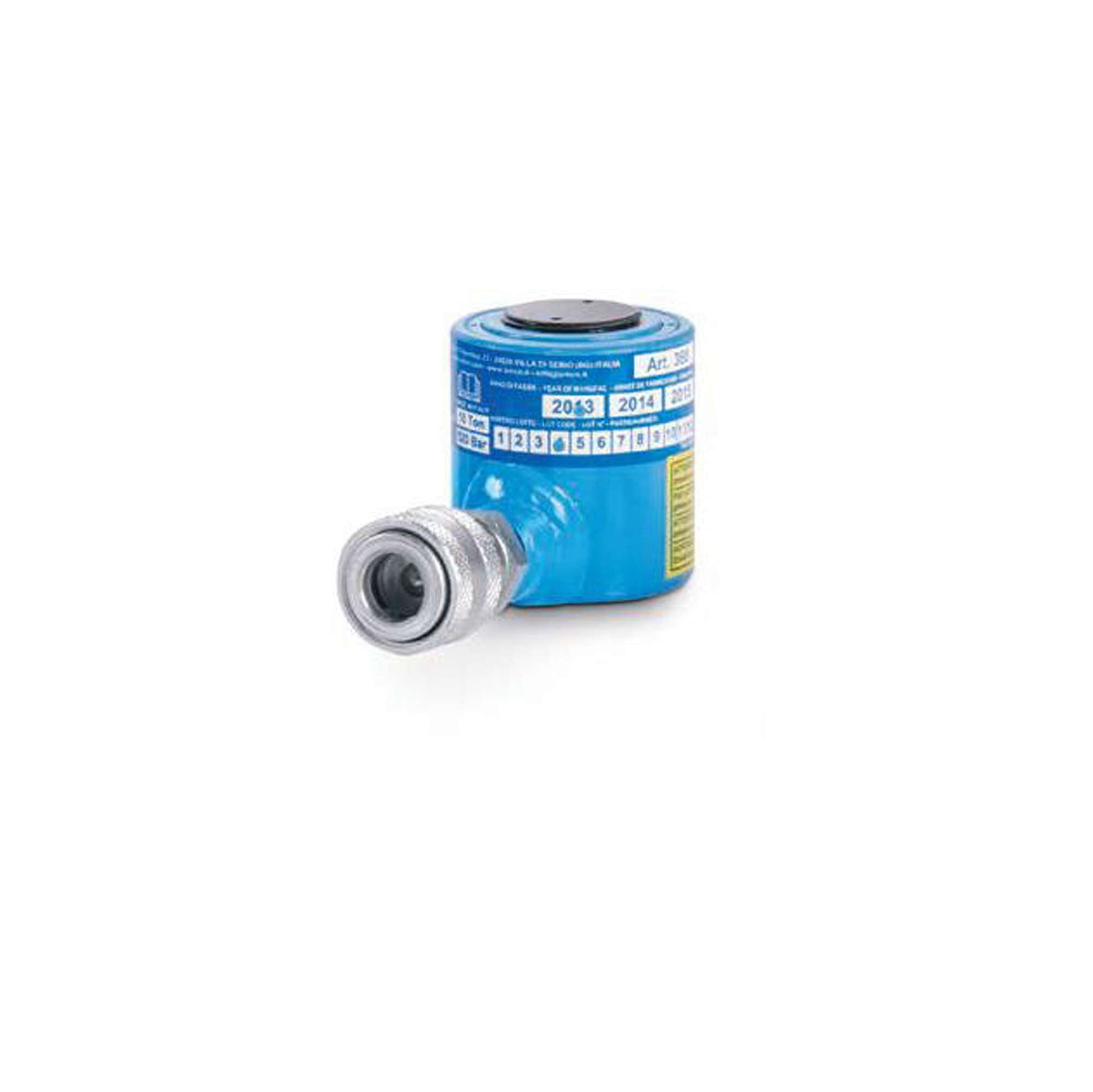

Single-acting hydraulic cylinder 5 ton, spring return H.115mm OMCN 359/AM

Space-saving hydraulic cylinder with spring return for lifting up to a maximum of 5 tonnes. Made of high quality materials.

The maximum working pressure is 700 bar and the product weight is 0.8 kg.

The table below shows the features of the OMCN jack.

Technical Specifications
Capacity 5t
Working pressure 700bar
Oil capacity 33.6cm³
Dimensions A 115mm
Dimensions B 80mm
Dimensions C 35mm
Dimensions D 30mm
Weight 0.8kg
