Description

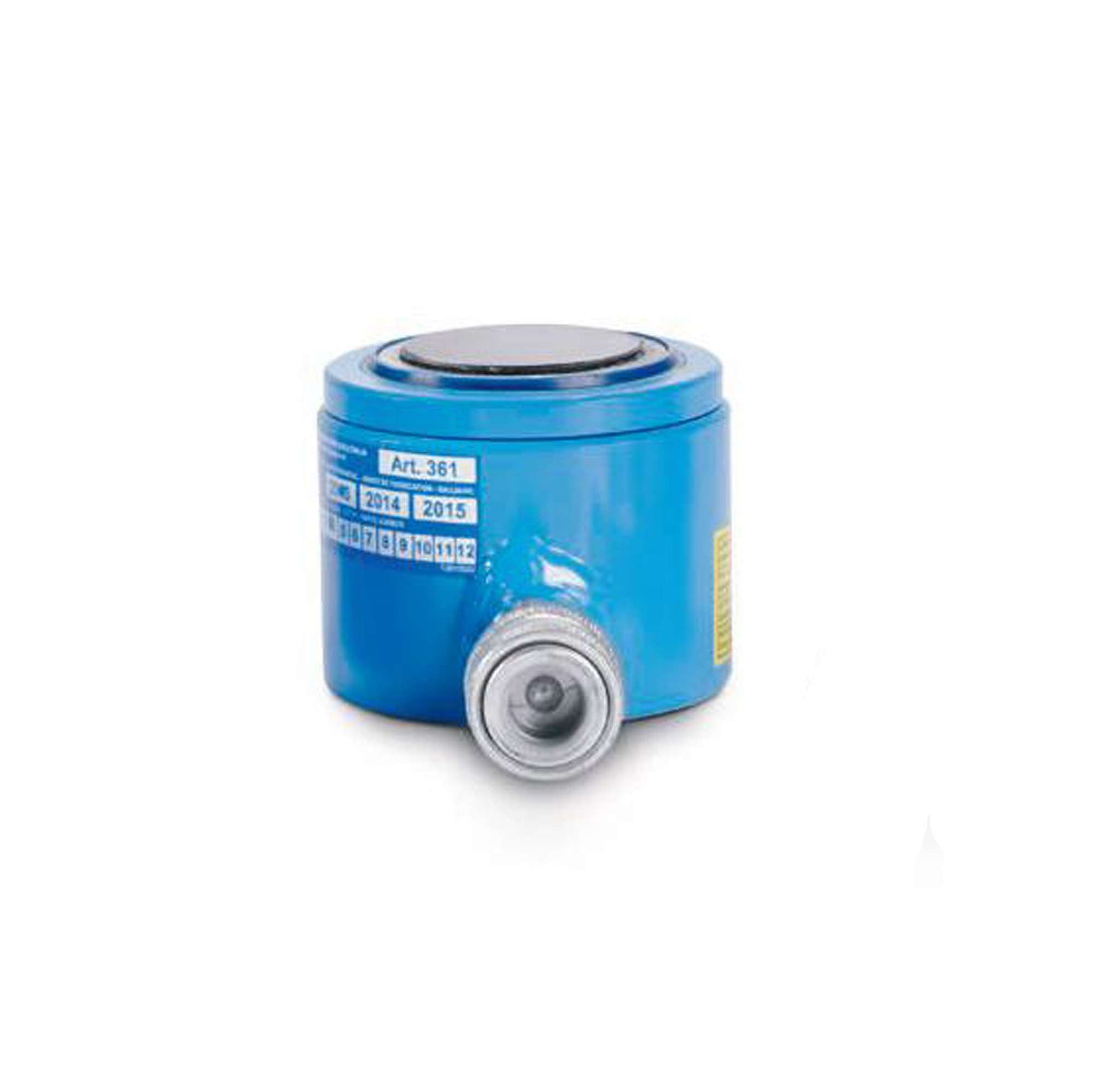

Space-saving hydraulic cylinder with gravity return for lifting up to a maximum of 20 tonnes. Made of high quality materials.
The maximum working pressure is 700 bar and the product weight is 2.7 kg.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 20t
Working pressure 700bar
Oil capacity 26.4cm³
Dimensions A 78mm
Dimensions B 70mm
Dimensions C 8mm
Dimensions D 60mm
Weight 2.7kg
Delivery 10-15 days
