Description

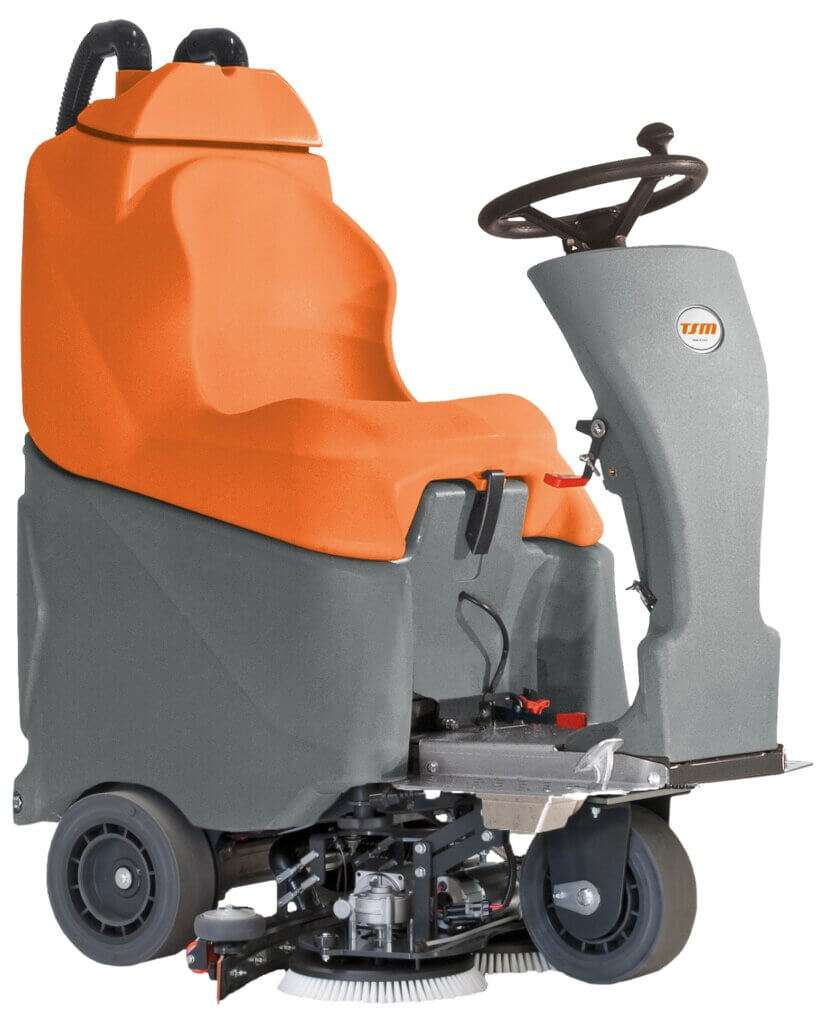

GRANDE BRIO RIDE ON 75 - 550
The Grande Brio Ride On 75-550 is the smallest ride-on scrubbing machine on the market. It was designed and built to compete with and replace the bulky walk-behind scrubbing machines of large dimensions, to offer the operator not only the comfort of the seat, but much higher performance.
In just 120 cm of total length, 75 liters of water are transported in a single frame, which can then house scrubbing groups with different cleaning bands, to tackle any floor size. The extremely compact dimensions of the Ride On 75-550 ride-on scrubber-dryer allow you to turn between walls in very little space, get on the lifts and go through the supermarket checkouts.
Technical data
Cleaning path mm 550
Tank capacity l 75/80
Hourly output m2/h 3000
Hourly autonomy H > 3
Brush size mm 2 X 280
Rpm brushes rpm 190
Brush pressure kg 20
Brush motor power W 2 x 200
Squeegee length mm 2 x 200
Water column mm H2O 1590
Suction motor power (stages) W 490 (3)
Traction motor power W 450
Supply voltage V 24
Total power W 1340
Integrated battery charger A/h 15
Max battery capacity (Agm) Ah/5 150 (Acid)
Maximum slope
%5
Maximum speed Km/h 5
Noise level dB(A) < 66
Dimensions (Lxlxh) mm 1150 x 780 x 1430
Weight without batteries kg 153
