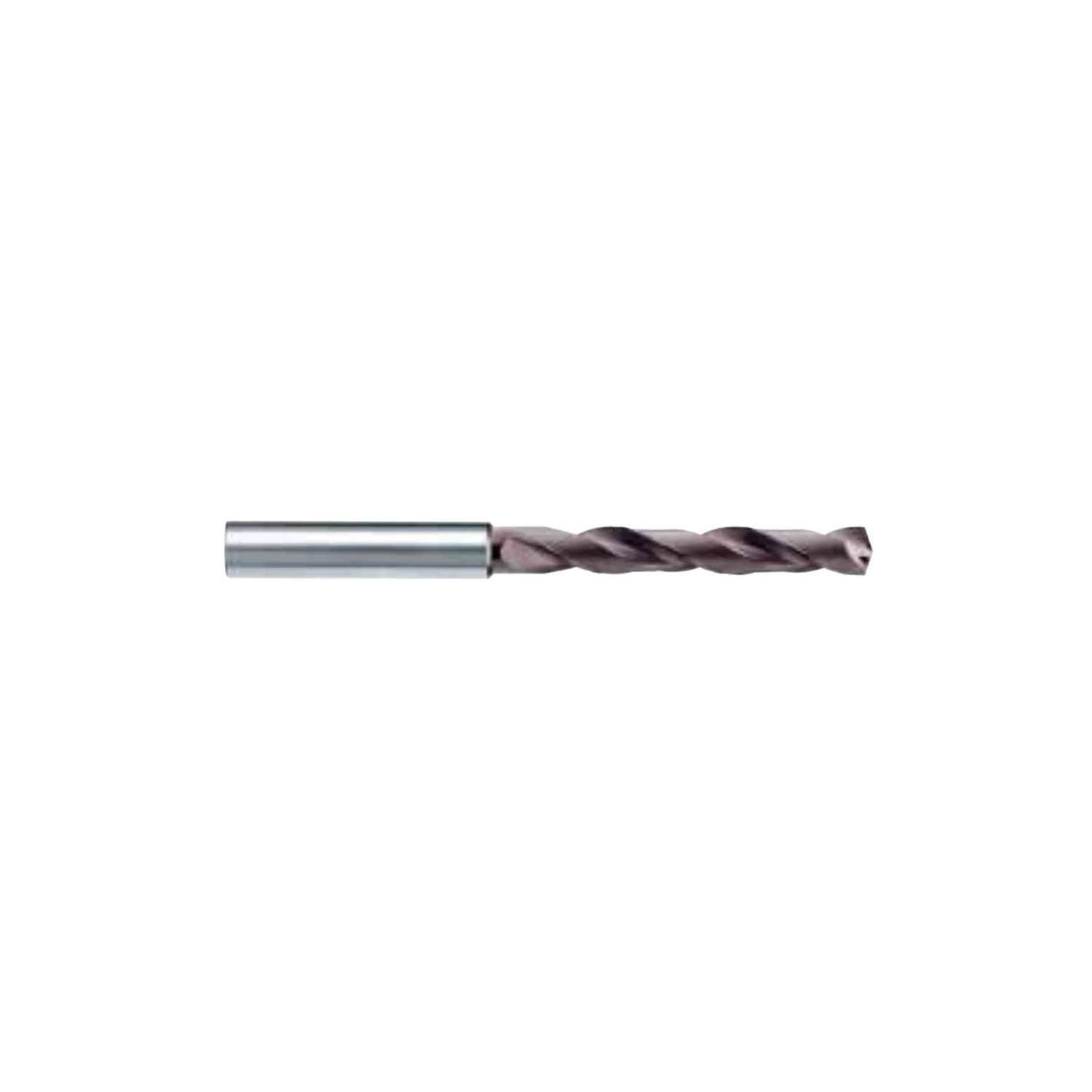

Record MDI Drill for steel / cast iron with holes DIN 6537L - ILIX

IlixSKU: 232_013_IL6020TF___232_013_IL6020TF10

Ø Drill bit: 10 mm - IL6020TF10
Price:
Sale price$125.00
Availability : 3

Description

RECORD 2S I - SPECIFICATION FOR STEEL / CAST IRON - DIN 6537L - CATALOGUE 6020TF

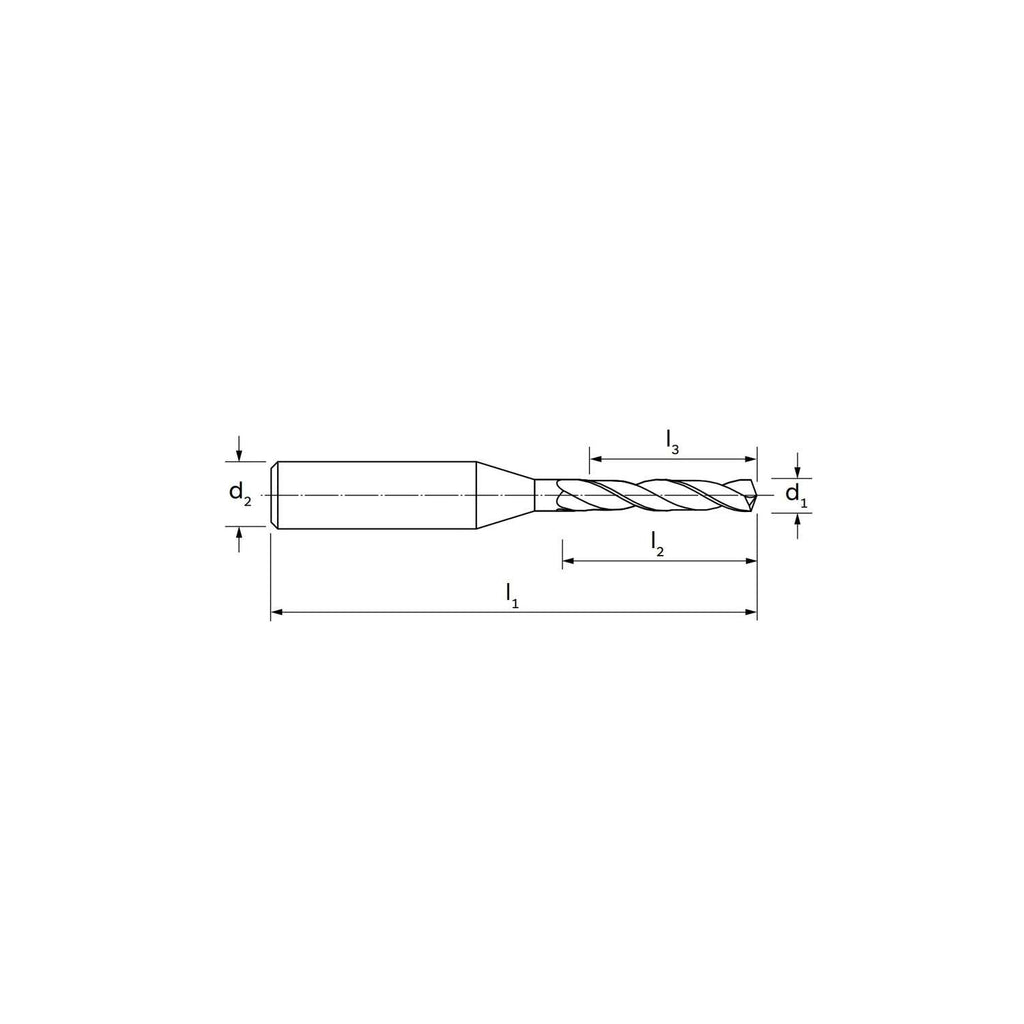

Ø L1 L2 L3 L4 d2h6
3 66 28 23 36 6
3.2 66 28 23 36 6
3.3 66 28 23 36 6
3.5 66 28 23 36 6
3.7 66 28 23 36 6
4 74 36 29 36 6
4.2 74 36 29 36 6
4.5 74 36 29 36 6
4.6 74 36 29 36 6
4.7 74 36 29 36 6
6 82 44 35 36 6
6.5 91 53 43 36 8
6.9 91 53 43 36 8
7 91 53 43 36 8
7.5 91 53 43 36 8
8.6 103 61 49 40 10
8.8 103 61 49 40 10
9.2 103 61 49 40 10
9.5 103 61 49 40 10
10 103 61 49 40 10
10.3 118 71 56 45 12
10.5 118 71 56 45 12
11.5 118 71 56 45 12
15 133 83 63 48 16
15.5 133 83 63 48 16
