IlixSKU: 232_013_6015TF___232_013_IL6015TF10
nome_variante: Ø Drill bit
variante_1: 10 mm - IL6015TF10
Price:
€59,84
Availability : 3
Register to buy

Description

RECORD 2S - SPECIFICATION FOR STEEL / CAST IRON - DIN 6537K - CATALOGUE 6015TF

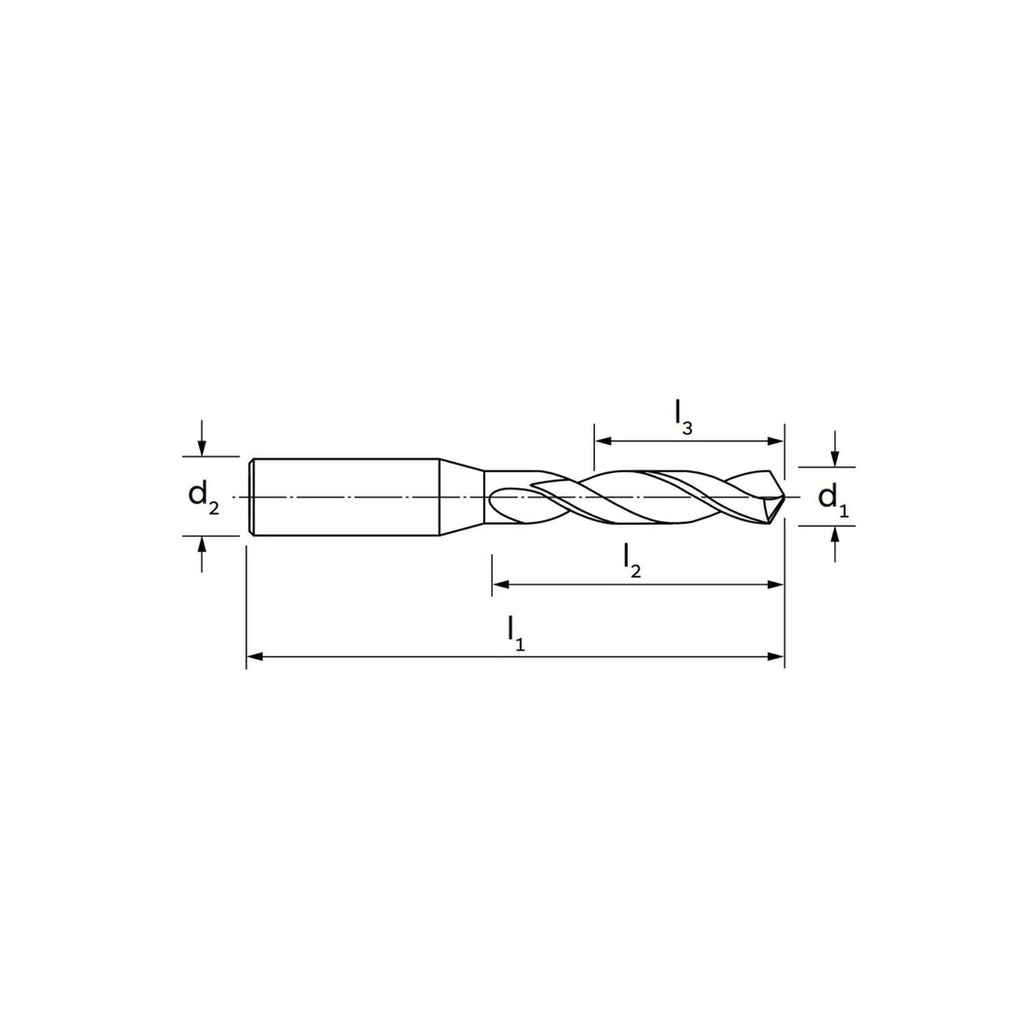

Ø L1 L2 L3 L4 d2h6
3.4 62 20 14 36 6
3.5 62 20 14 36 6
3.8 66 24 17 36 6
4 66 24 17 36 6
4.2 66 24 17 36 6
4.3 66 24 17 36 6
4.5 66 24 17 36 6
4.8 66 28 20 36 6
5 66 28 20 36 6
5.1 66 28 20 36 6
5.2 66 28 20 36 6
5.3 66 28 20 36 6
5.5 66 28 20 36 6
6 66 28 20 36 6
6.3 79 34 24 36 8
6.4 79 34 24 36 8
6.5 79 34 24 36 8
6.6 79 34 24 36 8
6.7 79 34 24 36 8
7 79 41 29 36 8
7.5 79 41 29 36 8
8 79 41 29 36 8
8.5 89 47 35 40 10
8.8 89 47 35 40 10
8.9 89 47 35 40 10
9 89 47 35 40 10
9.5 89 47 35 40 10
10 89 35 35 40 10
10.2 102 55 40 45 12
11.5 102 55 40 45 12
12 102 55 40 45 12
13.1 107 60 43 45 14
14.5 115 65 45 48 16
17 123 73 51 48 18
