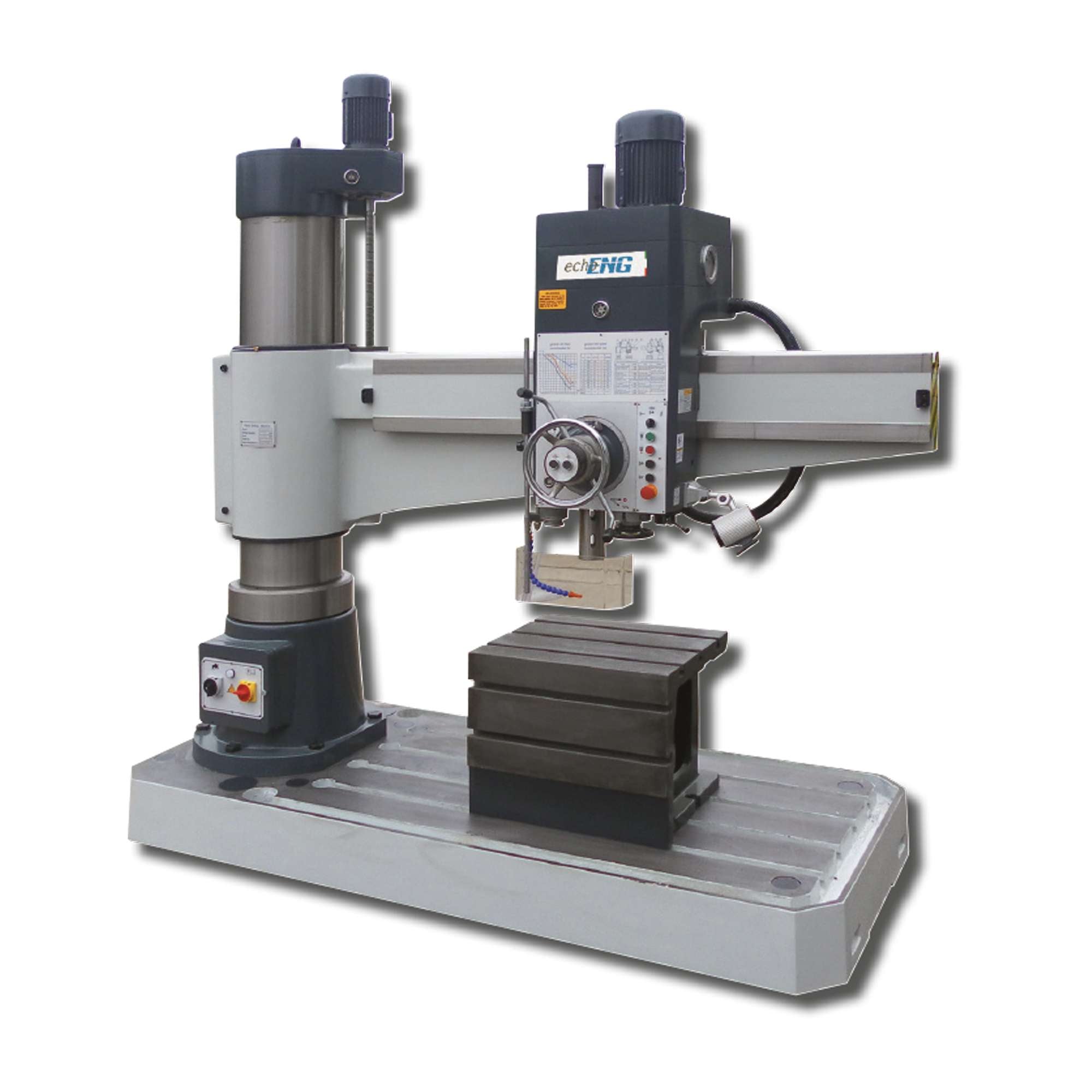

Radial Drill 40mm Drilling Capacity with Cube Table Included – TR 40 400V ENG PRO
Professional machine with oil-bath lubricated gearbox, hardened and ground gears, designed to ensure extremely quiet operation. Equipped with motor-driven adjustable arm height and spindle elevation, hardened and ground guides, and a hydraulic system for feed and spindle drive. Machine built in compliance with CE standards.
Main Features
• Oil-bath lubricated gearbox with hardened and ground gears
• Extremely quiet operation
• Arm height adjustable via motor and spindle elevation
• Hardened and ground arm guides
• Feed and spindle drive gears controlled by hydraulic system
• Machine built according to CE standards
Standard Accessories
• Coolant system
• Low-voltage work lamp
• Fixed table
• Service wrenches
• User manual
Technical Specifications
| Description | Value |
|---|---|
| Model | TR 40 |
| Max drilling capacity in steel | 40 mm |
| Tapping capacity (steel / cast iron) | M30 / M36 |
| Max spindle-to-column distance | 1300 mm |
| Min spindle-to-column distance | 300 mm |
| Drilling head travel (horizontal) | 1000 mm |
| Max spindle nose-to-table distance | 1120 mm |
| Min spindle nose-to-table distance | 300 mm |
| Arm travel (vertical) | 540 mm |
| Cube table dimensions | 450 x 600 x 450 mm |
| Machine table dimensions | 1400 x 600 x 200 mm |
| Spindle taper | CM 4 |
| Max drilling depth | 280 mm |
| Number of speeds and range | 16 (32 ÷ 2500 RPM) |
| Number of feeds and range | 8 (0.1 ÷ 1.25 mm/rev) |
| Main motor power | 3 kW |
| Lifting motor power | 0.75 kW |
| Power supply | 400 V / 50 Hz |
| Dimensions | 2100 x 750 x 2450 mm |
| Weight | 2500 kg |
