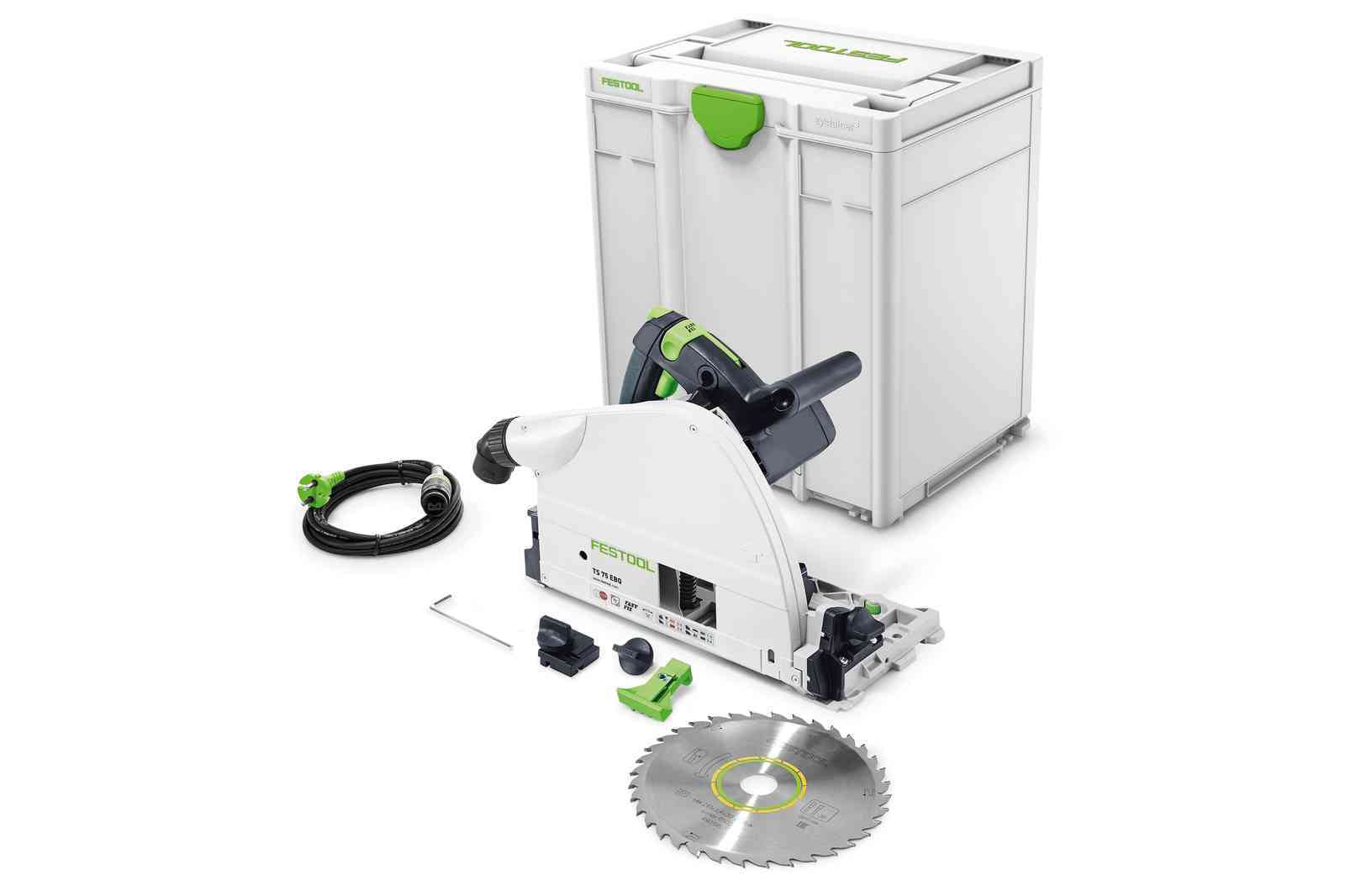

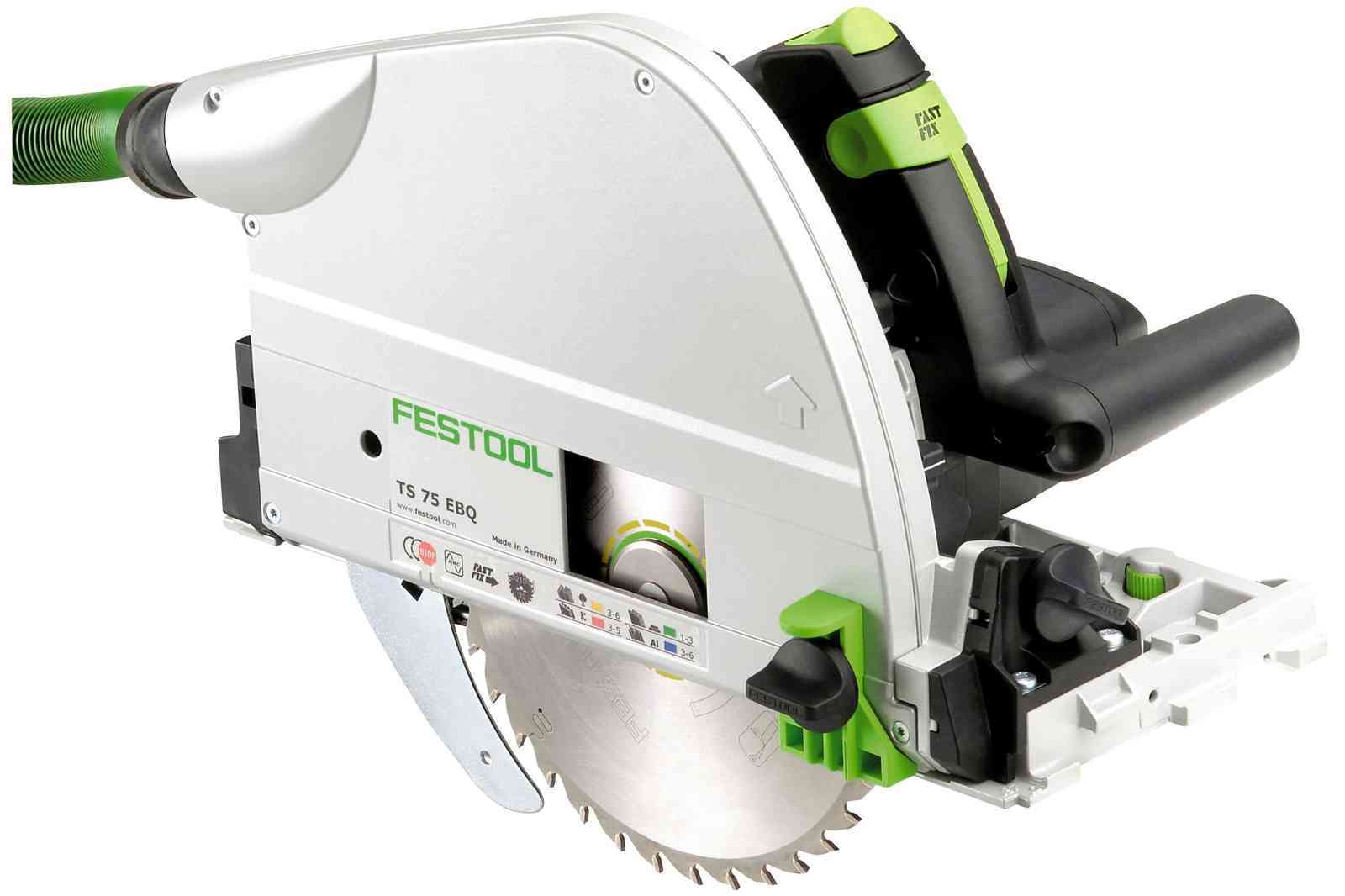

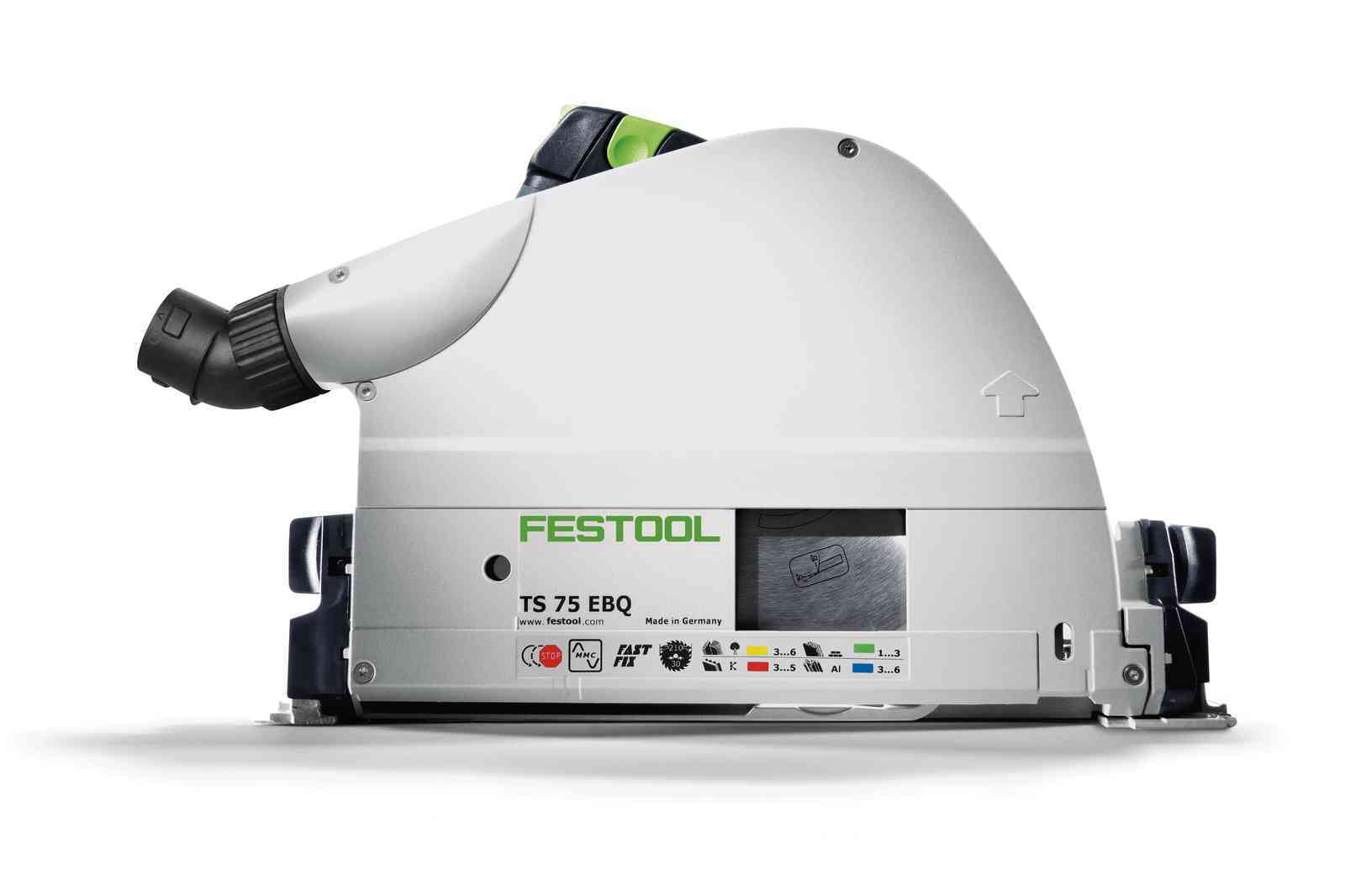

Plunge cut saw TS 75 EBQ-Plus - Festool
For additional cutting depth up to 75 mm. True to line. Accurate to the millimetre. Tear-free cuts. With the right power for every type of material, yet light and easy to manoeuvre. And with a triple-bearing motor and MMC electronics for exceptional durability. The TS 75 combines strength and extreme manoeuvrability in a compact tool. Together with the guide rail, the TS 75 saw allows flexible, fast and precise work.
- 75 mm cutting depth for a wide range of applications
- FastFix for quick and easy blade change and work adapted to the material being processed
- Comfortable and safe, with clutch and kickback damping
- Retractable splitting wedge for perfect plunge cuts
- Tool-free adjustment of play on the guide rail
- Quick brake for safe and comfortable work
- Applicable splinter guard for a quality result
Main applications
- Precise plunge cuts up to a thickness of 75 mm
- Perfect cut to length of external doors - guide rail with plunge-cut saw
- Cutting to length and machining greenhouse profiles
- Simple and clean cutting to length of cable ducts
- Precise cutting of double bottoms
- Machining of panforte panels
Technical Data
No-load speed: 1 350 - 4 400 min-¹
Blade diameter: 210.00 mm
Angles: 0 - 47 °
Cutting depth: 0 - 75 mm
Cutting depth at 45°: 55 mm
Dust extraction connection Ø: 27/36 mm
Electrical cable length: 4.00 m
Transport weight with accessories: 10.30 kg
Drive type: Mains
Antistatic function
vacuum cleaners and tools with antistatic function to eliminate shocks during work
Parkings
the patented splinter guard for tear-free cuts on both sides
Guidance system
patented guide system for safe guidance of saws and milling machines
plug it
removable and interchangeable electric cable with safety connection for quick connection
Electronics MMC Multi-Material-Control
Machining according to material type: 'Multi Material Control' power electronics with constant, adjustable speed and temperature control.
FastFix
It facilitates the changing of milling, cutting, planing, sanding, drilling and screwing tools.
CLEANTEC
Integrated bayonet lock as a connecting element between aspirator and tool.
Rapid brake
For safe machining in planing, cutting and milling.
NOISE
Wood cutting: Standard series EN: 62841
Wood cutting: Uncertainty (noise) K: 3.00 dB
Wood cutting: Uncertainty (vibration) K: 1.50 m/s²
Wood cutting: Sound pressure level LpA type A: 88.00 dB(A)
Wood cutting: Sound power level LWA type A: 99.00 dB(A)
Metal cutting: Sound pressure level LpA type A: 88.00 dB(A)
Metal cutting: Mean total oscillation value ah: 3.50 m/s²
Metal cutting: Uncertainty (vibration) K: 1.50 m/s²
Metal cutting: Sound power level LWA type A: 99.00 dB(A)
Metal cutting: EN standard series: 62841
Metal cutting: Uncertainty (noise) K; 3.00 dB
