Description

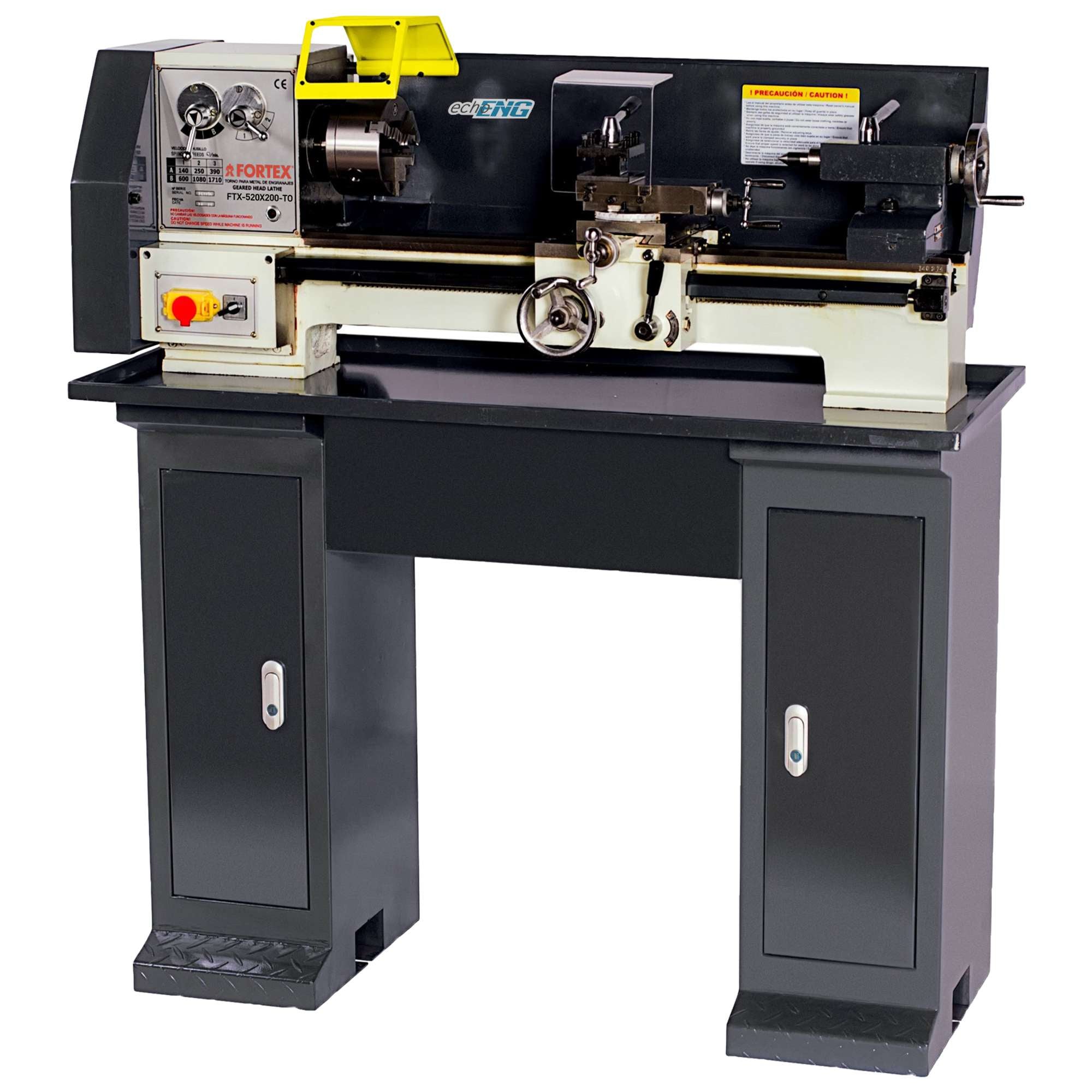

Bench Lathe 230 V with Automatic Feed – FTX-520X200-TO Fortex
The FTX-520X200-TO is a professional-grade bench lathe designed for mechanical processing. Featuring a solid construction with hardened and ground guideways, it ensures durability, stability, and machining precision. Ideal for workshops requiring reliability and power in a compact machine.
Key Features
Heavy-duty design for professional use
Hardened and ground guideways for precise and durable operation
Speed change by lever-operated gear transmission
Spindle and tool post guards for operator safety
Emergency stop button
Complies with CE safety regulations
Technical Specifications
| Specification | Value |
|---|---|
| Voltage | 230 V – 50 Hz |
| Motor Power | 0.55 kW |
| Speed Change System | Gear transmission |
| Number of Spindle Speeds | 6 |
| Speed Range (rpm) | 140 – 1710 |
| Max. Swing Over Bed | 200 mm |
| Max. Swing Over Cross Slide | 125 mm |
| Distance Between Centers | 520 mm |
| Spindle Bore Diameter | 20 mm |
| Spindle Taper | MT3 |
| Tailstock Taper | MT2 |
| Tailstock Quill Diameter | 30 mm |
| Tailstock Quill Travel | 35 mm |
| Longitudinal Feed Range | 0.05–0.2 mm/rev |
| Metric Thread Range | 11 pitches / 0.4–3 mm |
| Inch Thread Range | 11 pitches / 8–32 TPI |
| Net Weight | 110 kg |
| Dimensions (L×W×H) | 1250 × 570 × 570 mm |
Included Accessories
Ø125 mm 3-jaw chuck
MT2 fixed center
MT3 fixed center
Set of turning tools
Machine stand
Telescopic leadscrew cover
Optional Accessories
| Accessory | Ref. Code | EAN Code |
|---|---|---|
| Steady Rest | 441220000/LF | 8423640143609 |
| Follow Rest | 441220000/LM | 8423640143708 |
EAN Code: 8423640052000
