Description

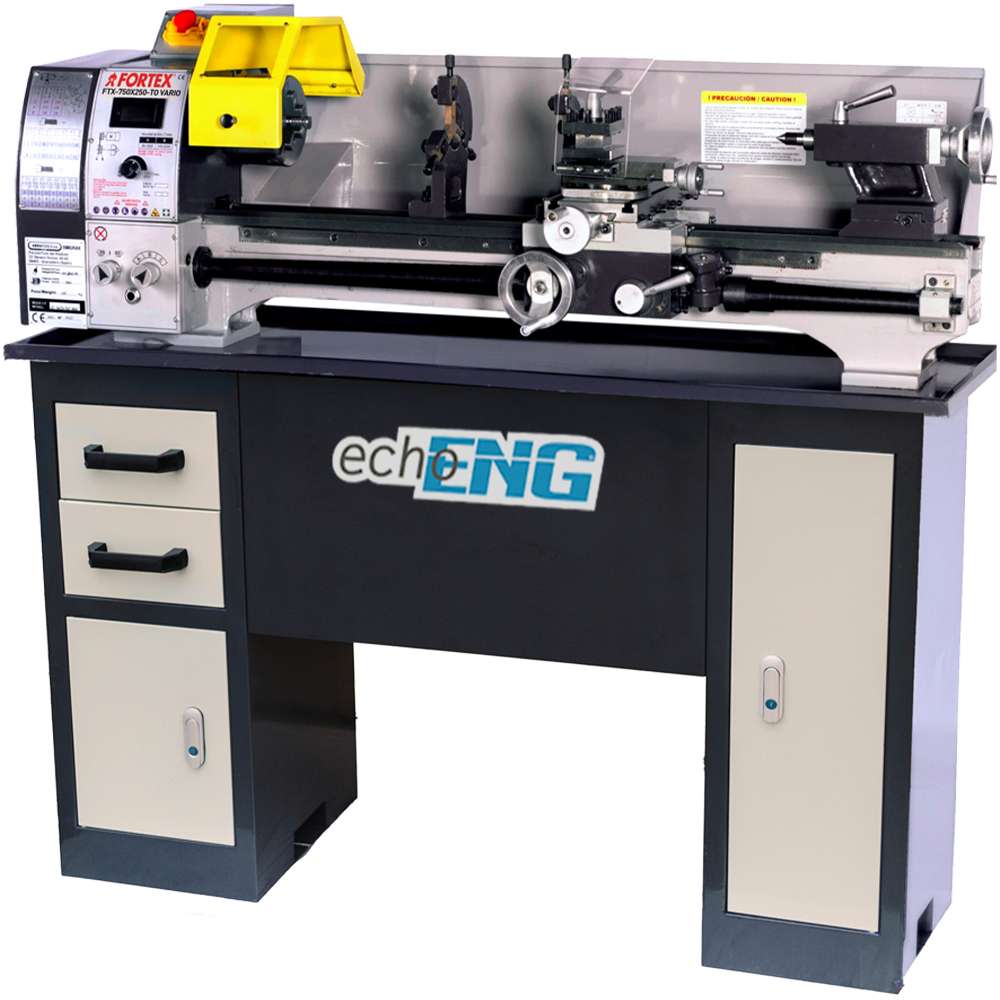

FTX-750X250-TO VARIO 230 V ENG PRO – Fortex Bench Lathe
Short Description
The FTX-750X250-TO VARIO bench lathe from Fortex is a compact yet professional machine, ideal for precision metalworking. Equipped with a brushless motor, variable speed control, and dual speed ranges, it ensures maximum torque at low speeds. Featuring high-quality components and full equipment, it complies with CE regulations and is perfect for workshops and laboratories.
Main Features
Dual speed ranges for maximum torque at low speeds
Hardened and ground double V-guideways
Precision spindle mounted on tapered roller bearings
Adjustable gib on the guideways
Tailstock with MT2 taper and graduated scale in mm and inches
Brushless motor
Reversible leadscrew for left-hand threading
Built-in thread indicator
Spindle and tool post guards
Emergency stop button
Compliant with CE regulations
Electronic speed controller
Fixed and follow rest included
Deluxe stand included
Standard Included Accessories
3-jaw chuck Ø125 mm
Stand
Fixed and follow rests
Back plate
Dead center MT4
Dead center MT2
Set of tools
Telescopic leadscrew cover
Technical Table
| Specification | Value |
|---|---|
| Model | FTX-750X250-TO VARIO |
| DRO X-Y | No |
| Voltage | 230 V / 50 Hz |
| Power | 1.1 kW |
| Speed Regulation | Variable |
| Max. swing over bed | 250 mm |
| Max. swing over cross slide | 140 mm |
| Spindle bore | 26 mm |
| Distance between centers | 750 mm |
| Spindle taper | MT4 |
| Tailstock taper | MT2 |
| Tailstock sleeve diameter | 30 mm |
| Tailstock sleeve travel | 70 mm |
| Spindle speed range | 50 – 2000 R.P.M. |
| Longitudinal feed range | 0.07 – 0.40 mm/rev |
| Metric thread range | 18 threads (0.2 – 3.5 mm) |
| Inch thread range | 21 threads (8 – 56 TPI) |
| Weight | 140 kg |
| Dimensions | 1500 x 560 x 570 mm |
| EAN Code | 8423640093256 |
