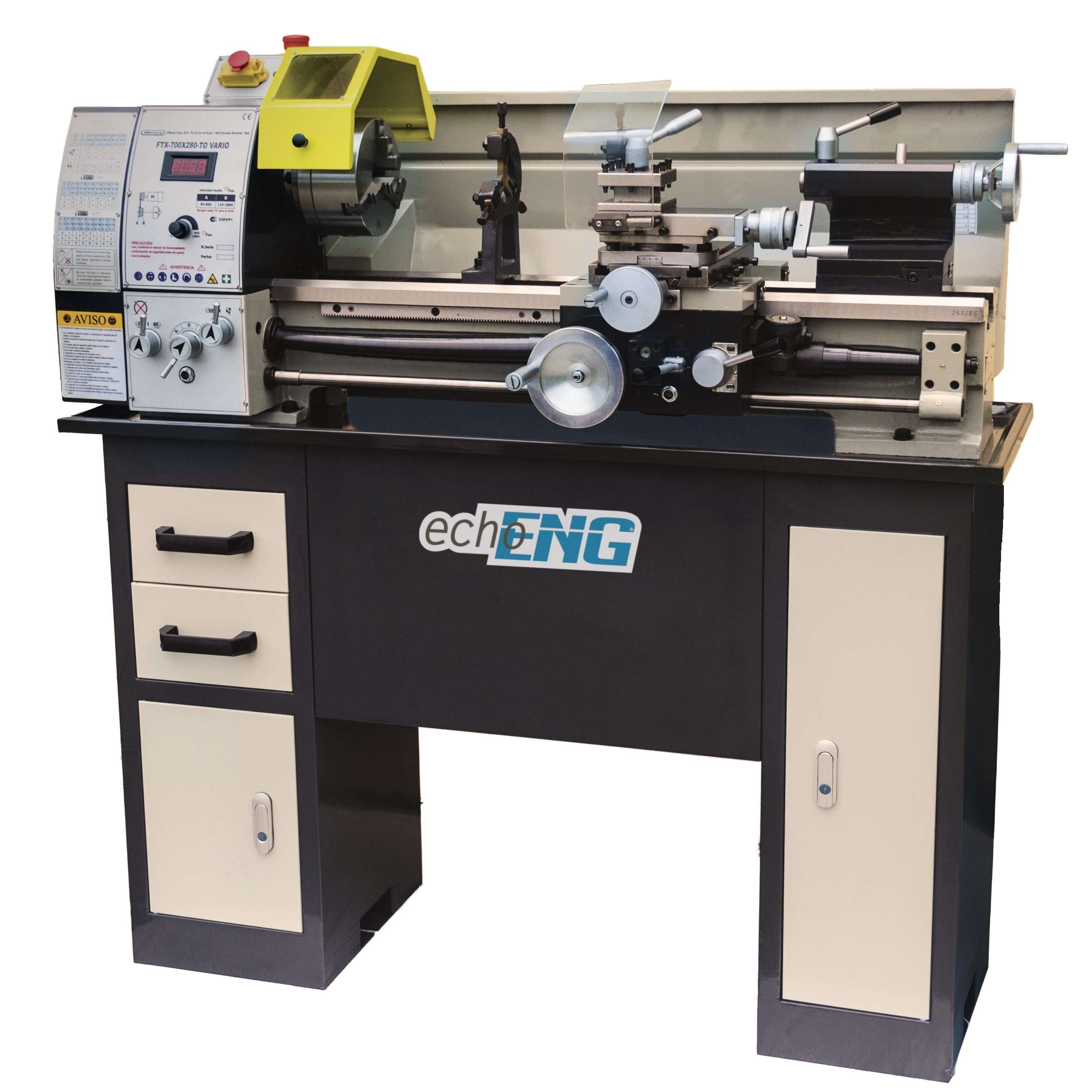

FTX-700x280-TO VARIO Bench Lathe 230V with Variable Speed – ENG PRO Belflex
The FTX-700x280-TO VARIO parallel lathe is a professional and versatile machine tool designed for precision turning in mechanical workshops, technical labs, and production environments. Equipped with a brushless motor, electronic variable speed control, and automatic longitudinal and cross feeds, it ensures smooth and accurate machining even on complex parts.
Key Features:
Automatic longitudinal and cross carriage feed
Hardened and ground double V guideways
Precision spindle mounted on tapered roller bearings
Adjustable gib on carriage guideways
Tailstock with MT2 taper and graduated scale in mm and inches
Separate leadscrew for threading operations
Brushless motor: quiet and durable
Reversible leadscrew for left-hand manual threading
Chuck and tool post guards
Emergency stop button
Digital spindle speed readout
Heavy-duty metal stand included
Manufactured in compliance with CE regulations
Included Accessories:
3-jaw chuck Ø160 mm
Metal stand
Fixed and follow rests
Back plate
Dead center MT3
MT5 to MT3 reducing sleeve
Tool set
Telescopic leadscrew cover
Technical Specifications:
| Specification | Value |
|---|---|
| Product code | FTX-700x280-TO VARIO |
| Voltage | 230 V – 50 Hz (single-phase) |
| Motor power | 1.5 kW |
| Speed control | Electronic, variable |
| Spindle speed range | 50 – 1800 RPM |
| Max. swing over bed | 280 mm |
| Max. swing over cross slide | 165 mm |
| Spindle bore | 38 mm |
| Distance between centers | 700 mm |
| Spindle taper | MT5 |
| Tailstock taper | MT3 |
| Tailstock sleeve diameter | 30 mm |
| Tailstock sleeve travel | 80 mm |
| Longitudinal feed range | 0.07 – 0.65 mm/rev |
| Cross feed range | 0.017 – 0.12 mm/rev |
| Metric threads range | 18 pitches / 0.2 – 3.5 mm |
| Inch threads range | 21 pitches / 8 – 56 TPI |
| Digital readout X/Y | No |
| Dimensions (LxWxH) | 1400 x 700 x 680 mm |
| Net/Gross weight | 230 kg |
| EAN | 8423640093324 |
