Description

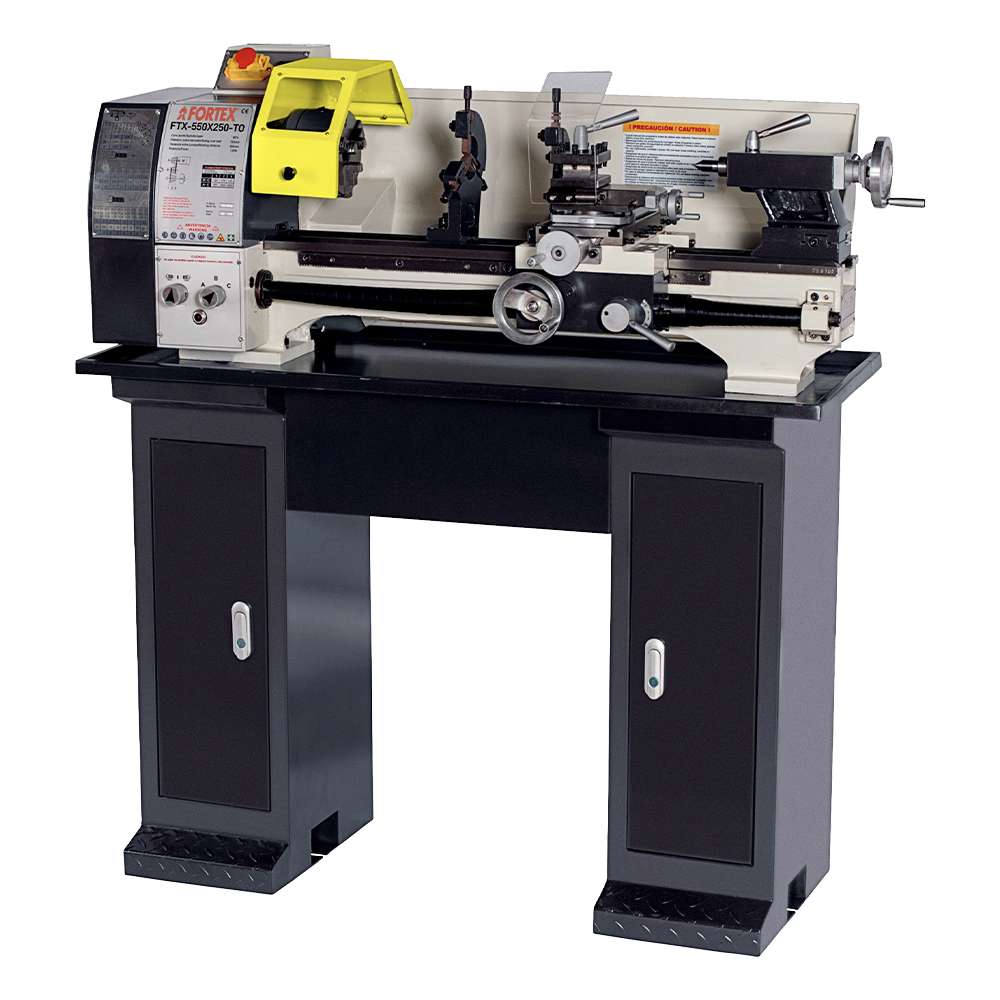

FTX-550X250-TO 230 V ENG PRO – Parallel Lathe Fortex
Short Description
The FTX-550X250-TO is a compact and professional parallel lathe designed for precise mechanical machining. Its robust structure with hardened and ground guides makes it ideal for workshops and technical labs. Featuring belt-driven speed adjustment, full safety protections, and an automatic threading system, it ensures both reliability and operator safety. CE-compliant machine.
Key Features
Designed for professional machining
Robust design with hardened and ground guides
Belt-driven speed change
Chuck and tool post guards
Emergency stop button
Automatic threading change
CE-compliant
Included Accessories
Ø125 mm 3-jaw chuck
Fixed centers MT2 and MT3
Ø220 mm faceplate
Steady and follow rests
Rear and lower chip tray
Metal chuck guard
Stand
Telescopic leadscrew cover
Technical Specifications
| Specification | Value |
|---|---|
| Model | FTX-550X250-TO |
| DRO X-Y | No |
| Voltage | 230 V / 50 Hz |
| Power | 0.55 kW |
| Speed change | By belt |
| Max. swing over bed | 250 mm |
| Max. swing over cross slide | 145 mm |
| Spindle bore | 26 mm |
| Distance between centers | 550 mm |
| Spindle taper | MT4 |
| Tailstock taper | MT2 |
| Tailstock sleeve diameter | 30 mm |
| Tailstock sleeve travel | 70 mm |
| Number of spindle speeds | 6 |
| Spindle speed range | 125 – 2000 RPM |
| Longitudinal feed range | 0.07 – 0.20 mm/rev |
| Metric threads range | 18 pitches (0.2 – 3.5 mm) |
| Inch threads range | 21 pitches (8 – 56 TPI) |
| Weight | 130 kg |
| Dimensions | 1155 x 560 x 565 mm |
| EAN Code | 8423640055056 |
