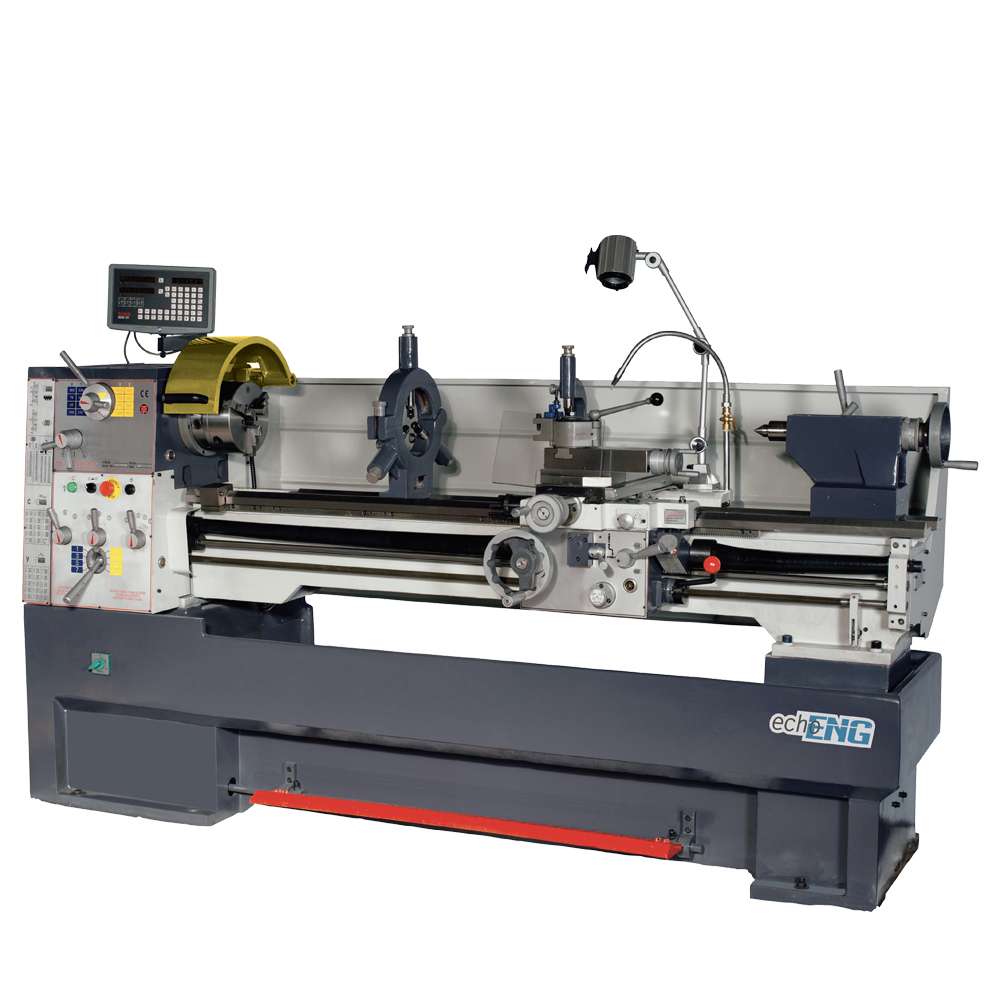

Parallel Lathe with Digital Readout FTX-1000X410-TO DCR 400V ENG PRO
The FTX-1000X410-TO DCR is a parallel lathe designed for professional mechanical machining. Featuring a robust design and a complete set of features, it ensures precision, safety, and reliability. Ideal for general turning, workshops, and industrial maintenance, it comes with a digital readout and a wide range of standard accessories.
Main Features
- Lathes for professional mechanical machining, with robust design and hardened and ground prismatic guides.
- Safety micro-switch that stops the machine when the chuck or turret guard is opened.
- Chuck and turret protection.
- Emergency stop button.
- Foot-operated lathe.
- Thread indicator.
- Longitudinal bar cover protection with casing.
- Machines built in compliance with CE standards.
Standard Accessories
- 3-jaw chuck Ø200 mm (with bar passage Ø52 mm)
- 4-jaw chuck Ø250 mm
- Faceplate Ø320 mm
- Fixed and steady rest
- Tailstock
- Work lamp and drawbar
- Chuck and bar protection
- Tool set
- Base
- Telescopic lead screw protection
Technical Specifications
| Digital Readout X-Y (DRO X-Y) | Yes |
| Power Supply | 400V - 50 Hz |
| Power | 2.2 / 3.3kW |
| Transmission | Gears |
| Swing over gap | 580 mm |
| Swing over bed | 410 mm |
| Swing over carriage | 260 mm |
| Spindle bore | 52 mm |
| Distance between centers | 1000 mm |
| Spindle taper | MT6 |
| Tailstock taper | MT4 |
| Tailstock diameter | 50 mm |
| Tailstock stroke | 120 mm |
| Number of spindle speeds | 16 |
| Speed range | 42–1800 R.P.M. |
| Metric threads | 39 pitches / 0.2–14 mm |
| Inch threads | 54 pitches / 2–72 TPI |
| Diametral pitch range | 21 pitches / 8–44 TPI |
| Modular thread range | 15 pitches / 0.3–3.5 |
| Longitudinal feed range | 0.05–1.7 mm/rev |
| Cross feed range | 0.025–0.85 mm/rev |
| Weight | 1550 kg |
| Machine dimensions | 2060x1140x1640 mm |
| Product code | 8423640292888 |
