Description

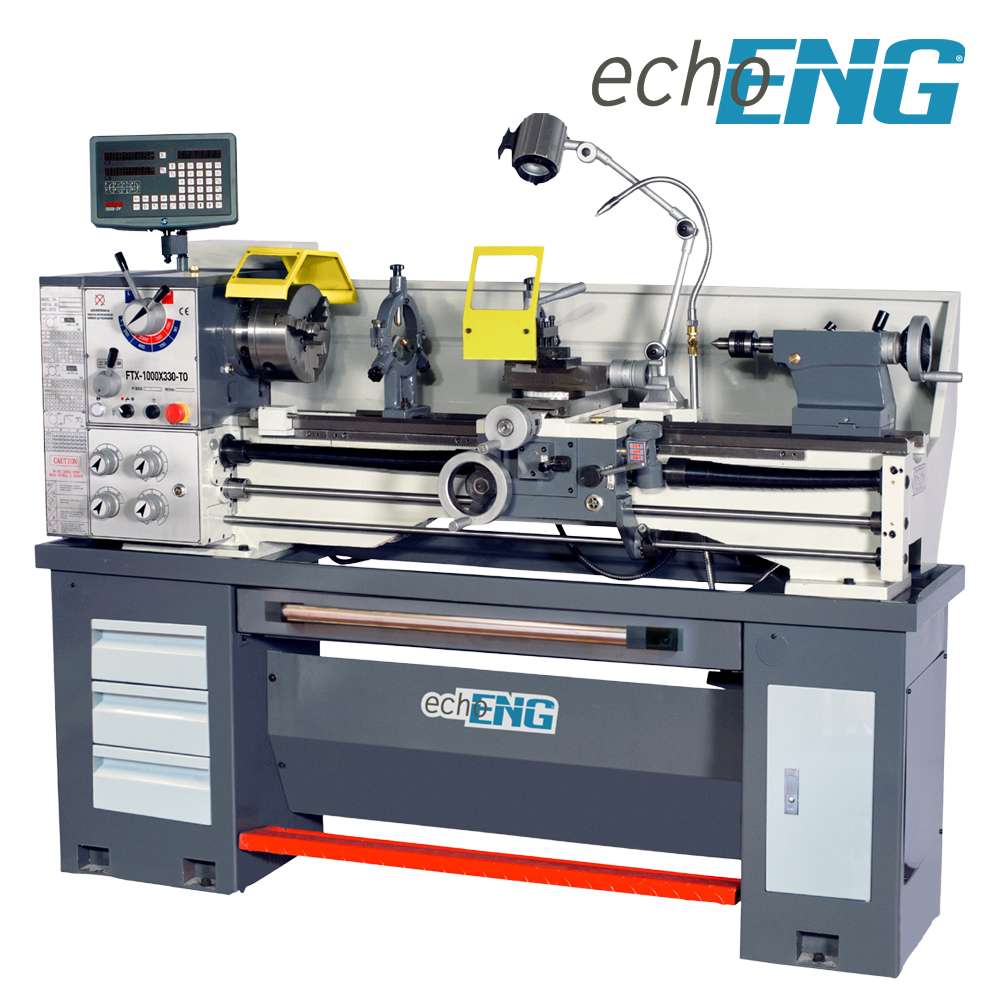

FTX-1000X330-TO DCR 400V ENG PRO Parallel Lathe with Digital Readout
The FTX-1000x330-TO DCR is a parallel lathe designed for professional machining. It features a robust design and complete equipment, ensuring precision, safety, and reliability. Ideal for general turning, workshops, and industrial maintenance.
Main Features
- Lathes for mechanical processing, designed for professionals, with a robust structure, hardened and ground V-guides. Includes rear splash guard and chip tray, coolant system, foot brake, and automatic speed change.
- Emergency stop microswitch
- Precision headstock gears
- Chuck and turret guard
- Emergency stop button
- Threading indicator
- Longitudinal carriage travel stop
- Brushless motor
- Manufactured in compliance with CE standards
Standard Accessories
- 3-jaw chuck Ø200 mm with 52 mm bar capacity
- 4-jaw chuck Ø200 mm
- Faceplate Ø250 mm
- Fixed and traveling steady rest
- Coolant system
- Tailstock
- Work light
- Metal chuck guard
- Tool set
- Machine base
- DCR model – Quick-change tool post
- Chip tray
- Three drawers
- Telescopic guard for leadscrew
Technical Specifications
| X-Y Digital Readout (DRO X-Y) | Yes |
| Power Supply | 400V - 50 Hz |
| Power | 1.5 kW |
| Transmission | Gears |
| Swing over gap | 450 mm |
| Swing over bed | 330 mm |
| Swing over carriage | 198 mm |
| Spindle bore diameter | 51 mm |
| Distance between centers | 1000 mm |
| Spindle taper | MT6 |
| Tailstock taper | MT3 |
| Tailstock diameter | 32 mm |
| Tailstock stroke | 100 mm |
| Number of speeds | 8 |
| Speed range | 70–2000 RPM |
| Metric threading | 26 threads / 0.4–7 mm |
| Inch threading | 34 threads / 4–56 TPI |
| Longitudinal feeds | 0.052–1.392 mm/rev |
| Cross feeds | 0.09–0.253 mm/rev |
| Weight | 640 kg |
| Machine dimensions | 1940x760x1520 mm |
| Product code | 8423640144507 |
