Description
Product Description.

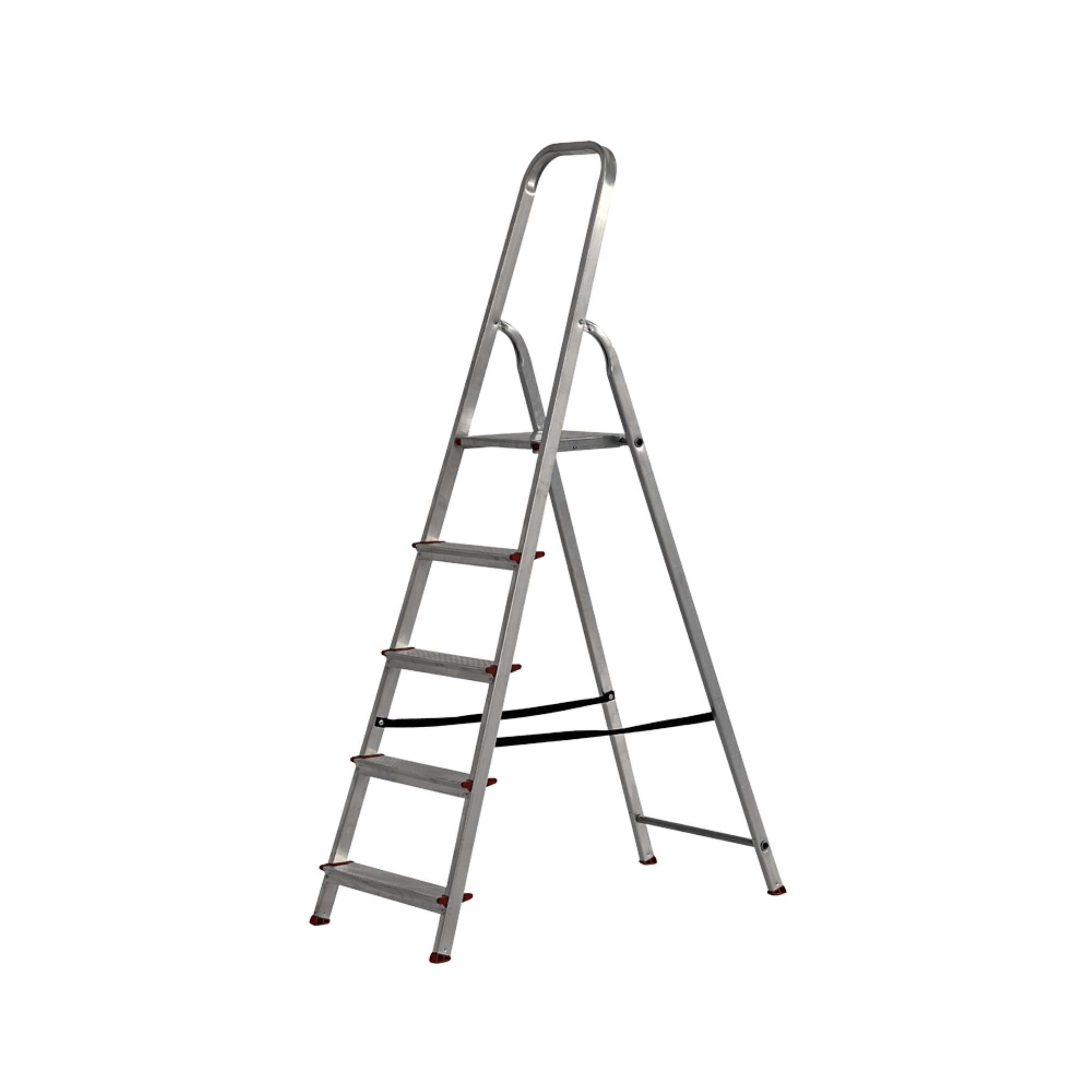

GAIA model aluminum openable ladder with platform, number of steps of your choice with non-slip surface and safety guardrail.
Features:
- Rectangular uprights of mm 35x20
- Flat steps with 80 mm non-slip surface
- Anti-opening straps
- Riser height mm 240
- Aluminum platform of mm 260x250
- Anti-slip caps at the ends of the uprights
- Load capacity Kg 150
CODE |
Open height A(m) |
Platform height B(m) |
Max height C(m) |
Max width D(m) |
Maximum height with person H(m) |
N. Steps | Kg | M3 |
A07GA125 | 1,17 | 0,56 | 1,24 | 0,41 | 2,56 | 3 | 3,1 | 0,05 |
A07GA150 | 1,38 | 0,78 | 1,48 | 0,43 | 2,78 | 4 | 3,6 | 0,06 |
A07GA170 | 1,62 | 1 | 1,7 | 0,46 | 3 | 5 | 4,2 | 0,07 |
A07GA200 | 1,84 | 1,24 | 1,93 | 0,49 | 3,24 | 6 | 5 | 0,09 |
