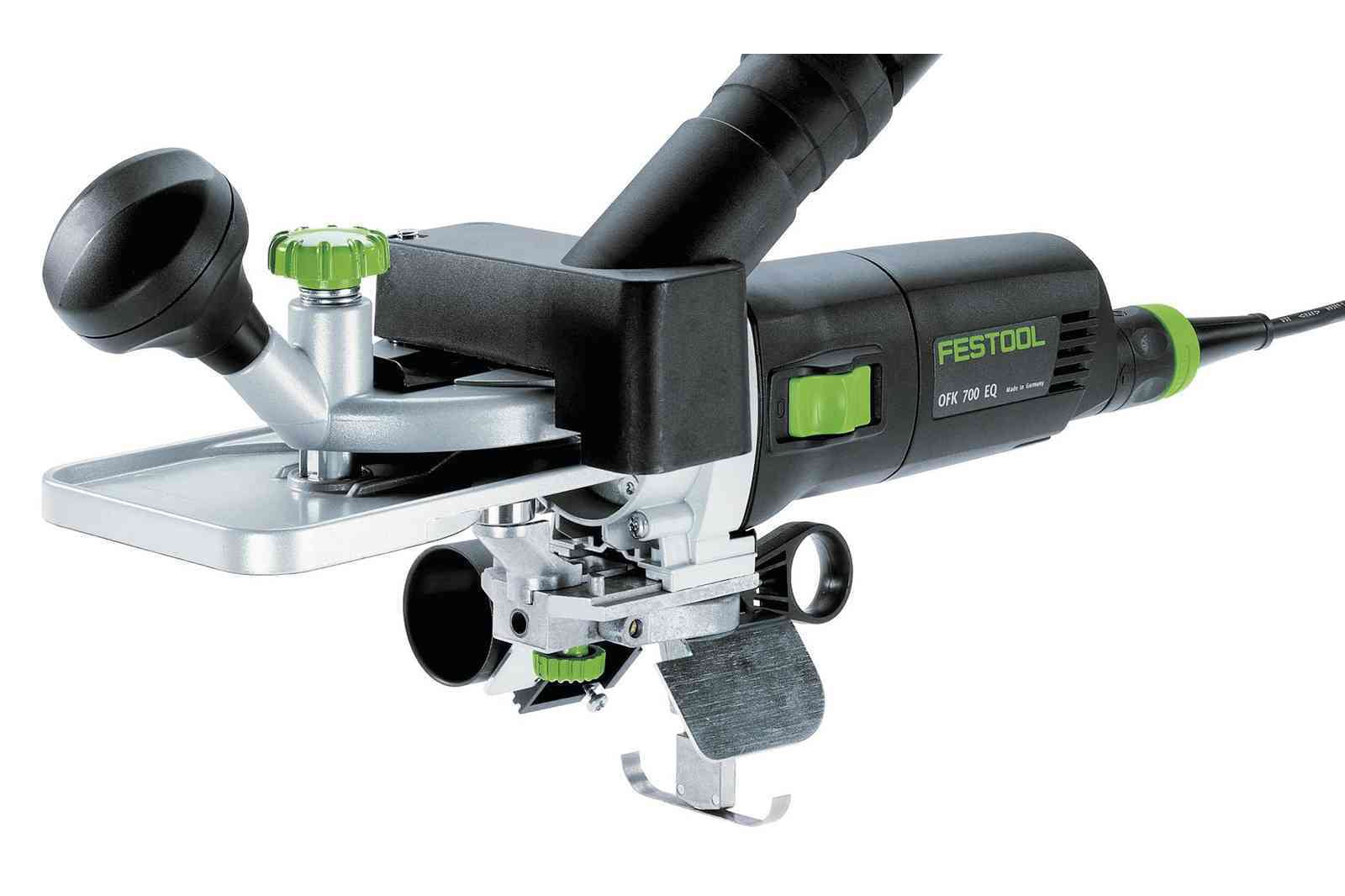

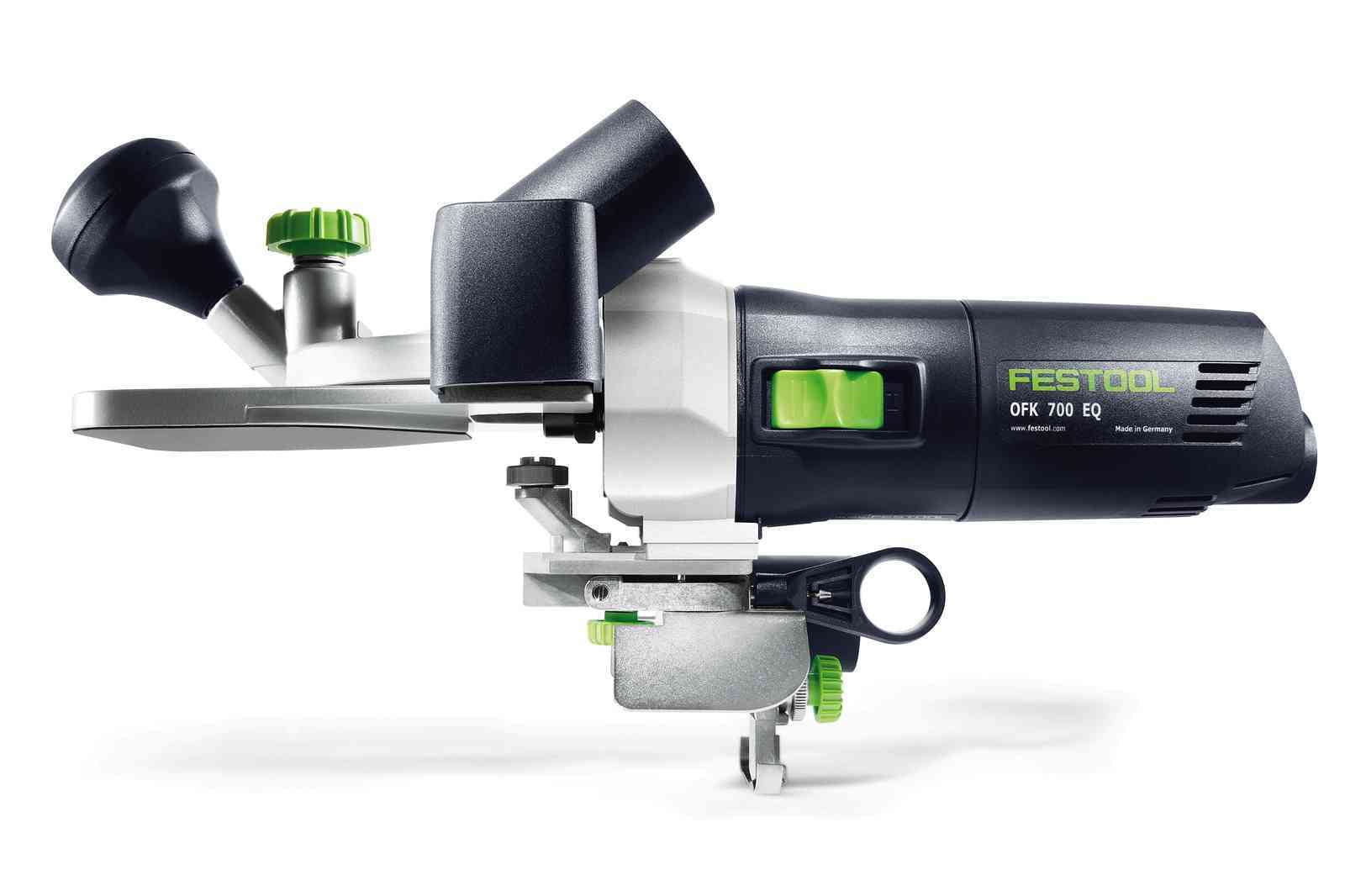

OFK 700 EQ-Plus Trimmer - Festool
Convincing in straight and curve: the OFK 700 is the multi-talent among trimmers. It makes flush milling of edges and protruding surfaces a simple exercise. It does not matter whether the workpiece is small or large, whether the edges are curved or straight. The large, quickly swivelling milling table provides a stable support surface and safe machine guidance in every working position.
- Interchangeable milling table with large support
- Optimum milling result thanks to 1.5° inclined plane
- Milling depth adjustment accurate to 1/10 mm
- Spring-loaded touch probe for backlash-free milling
- Quick and easy cutter change thanks to shaft lock

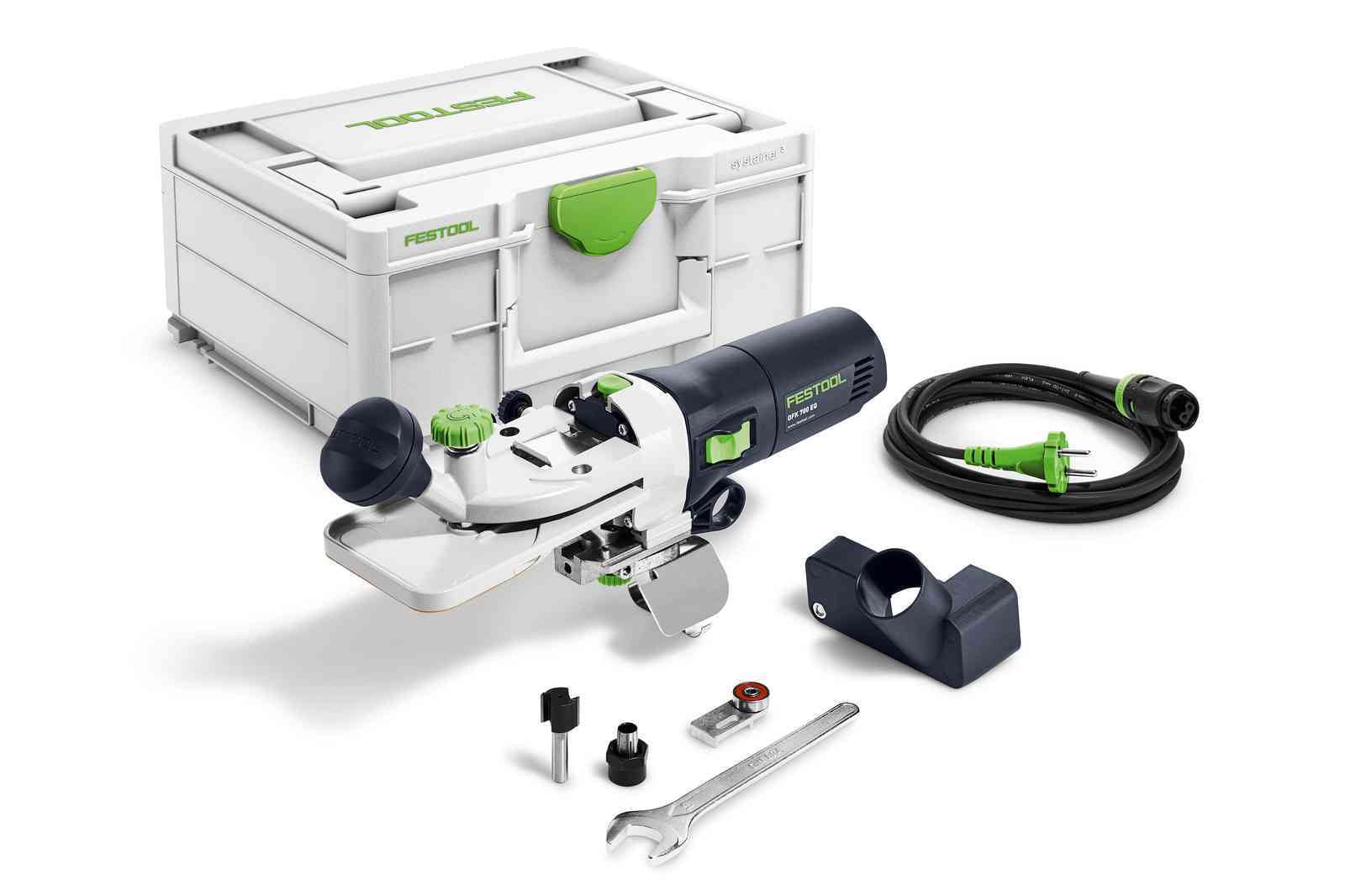

Equipment
- clamping collet Ø 8 mm
- milling plane 1,5°
- trimming cutter D 19 x 16
- 19" spanner
- Plug it in mains cable (4 m)
- Systainer SYS3 M 187
Main applications
- For protruding plastic or wooden surfaces and edges
- Rounding, chamfering edges
- Routing front grooves to accommodate PVC ribbed edges

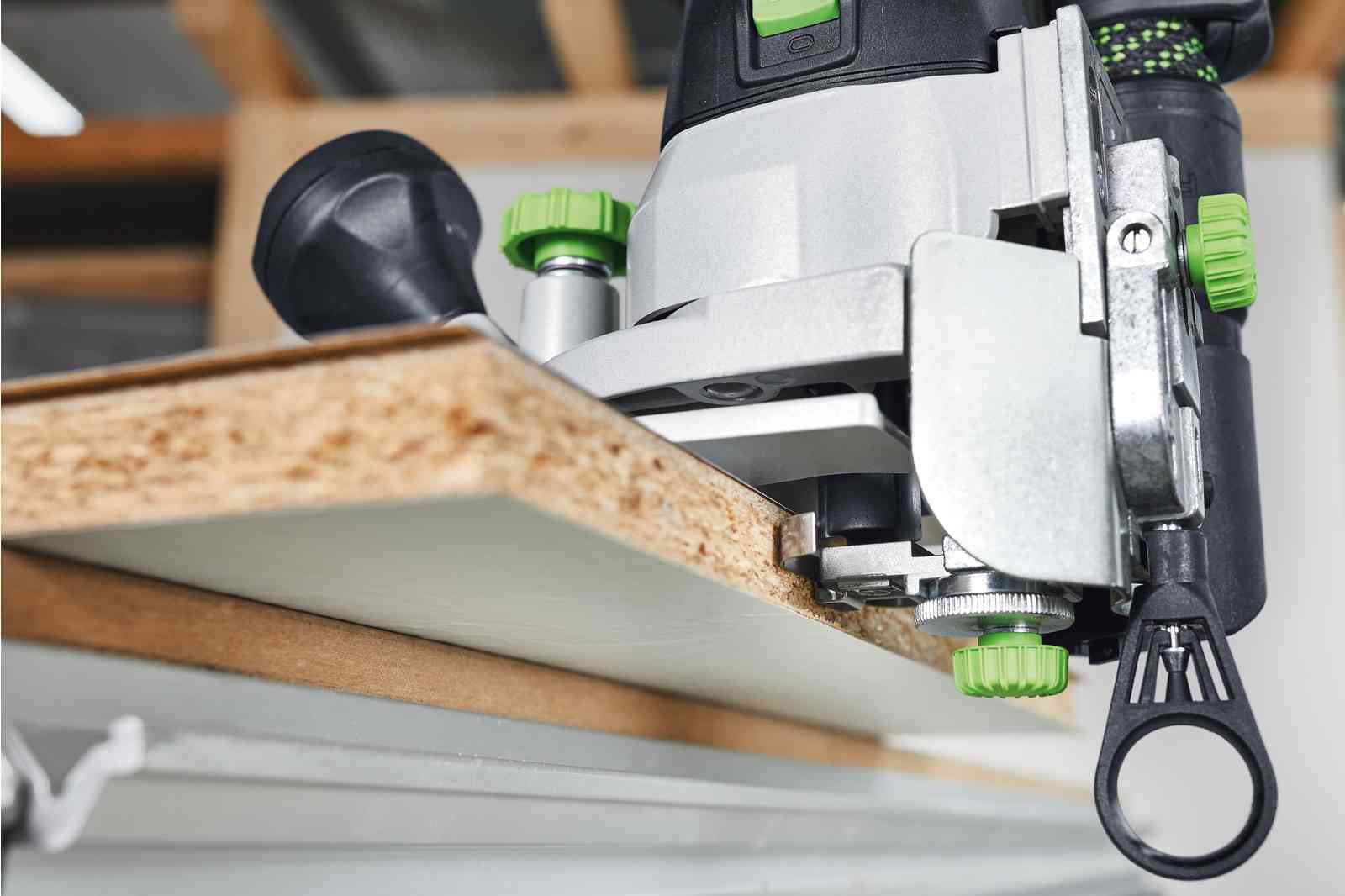

- Flush milling of laminated panels
- Routing strips on concave and convex workpieces such as round tables, desk tops, etc.
Technical Data
No load rpm: 10 000 - 26 000 min-¹
Max. cutter diameter: 26.00 mm
Collet diameter: 6 - 8 mm
Max. milling depth in vertical position: 9.00 mm
Max. milling depth in horizontal position: 5.00 mm
Max. milling width: 14.00 mm
Dust extraction connection Ø: 27 mm
Electrical cable length: 4.00 m
Drive type: Mains
CLEANTEC
Standard connection (27/36/50 mm) for dust extraction: protection of man and the environment
FastFix
It facilitates the changing of milling, cutting, planing, sanding, drilling and screwing tools.
Electronics MMC Multi-Material-Control
Machining according to material type: 'Multi Material Control' power electronics with constant, adjustable speed and temperature control.
plug it
Removable and interchangeable electric cable with safety connection for quick connection
NOISE
Milling: Uncertainty (noise) K: 3.00 dB
Milling: Mean total vibration value ah: 6.00 m/s²
Mill: Standard series EN: 60745-2-17
Milling: Sound pressure level LpA type A: 80.00 dB(A)
Milling: Sound power level LWA type A: 91.00 dB(A)
