Description

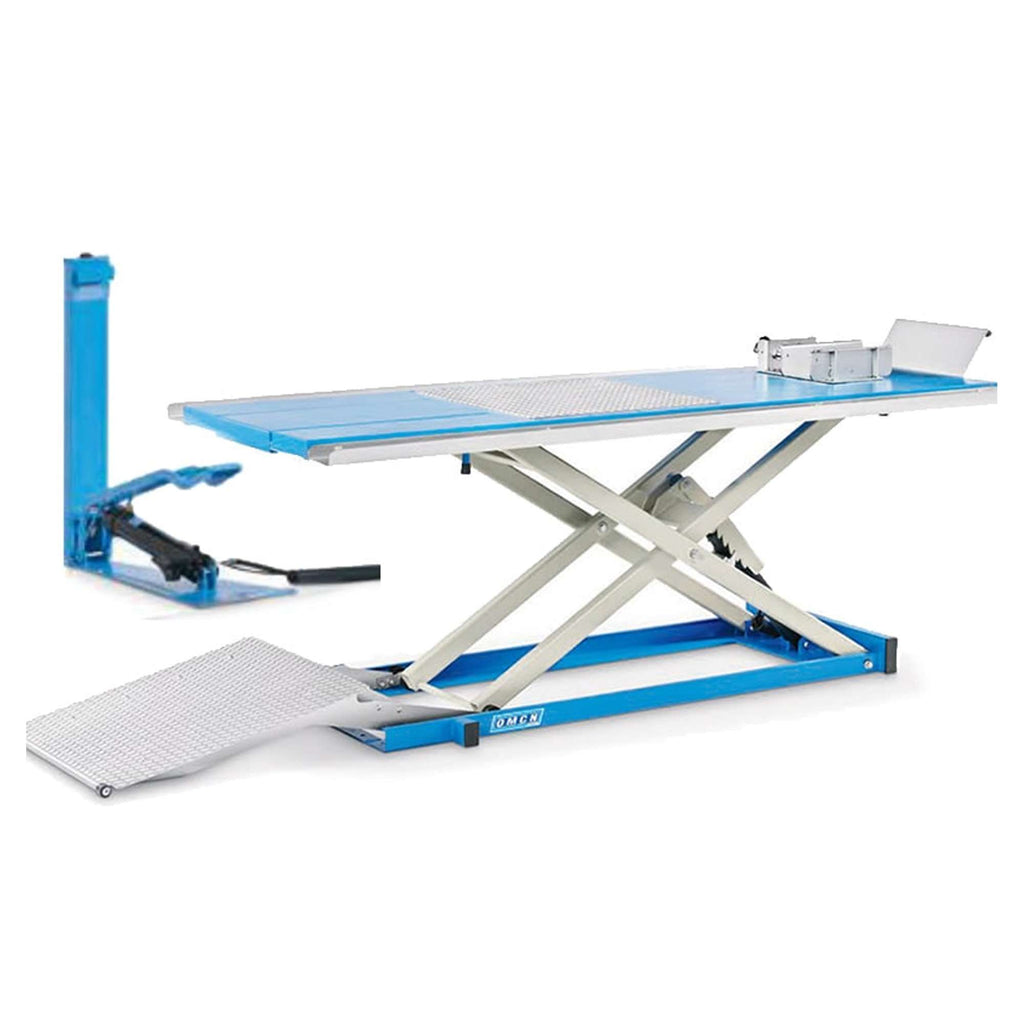

Motorbike lifting platform with hydraulic pump OMCN 196/P
The 196/P motorbike lifting platform is the right tool for repairs or inspections of two-wheeled vehicles.
Stable and compact, the platform has a load capacity of up to 500kg with a min. lift of 190mm to a max. lift of 1080mm operated by foot pedal, the platform has a length of 2200mm.
Equipped with a cantilevered front wheel stop for easy positioning of the bike.
The chute is retractable so as to reduce floor space when the bench is raised, while wheel removal is facilitated due to the removable rear window.
Mounted to the frame is a lowered manual vice, a sliding system on solid rollers and pins complete with grease nipples.
A central non-slip aluminium protection, object trays and a mechanical toothed safety rack are included as standard.
The platform has dimensions of 2930x915x190mm and weighs 210kg.
Features:
Wide base and stable, compact construction
Removable rear window
Lowered manual vice
Technical features
Hydraulic drive
Capacity 500kg
Air pressure 6bar
Lifting height 190 ÷ 1080mm
Platform length 2200mm
Weight 210kg
Delivery 10-15 days
