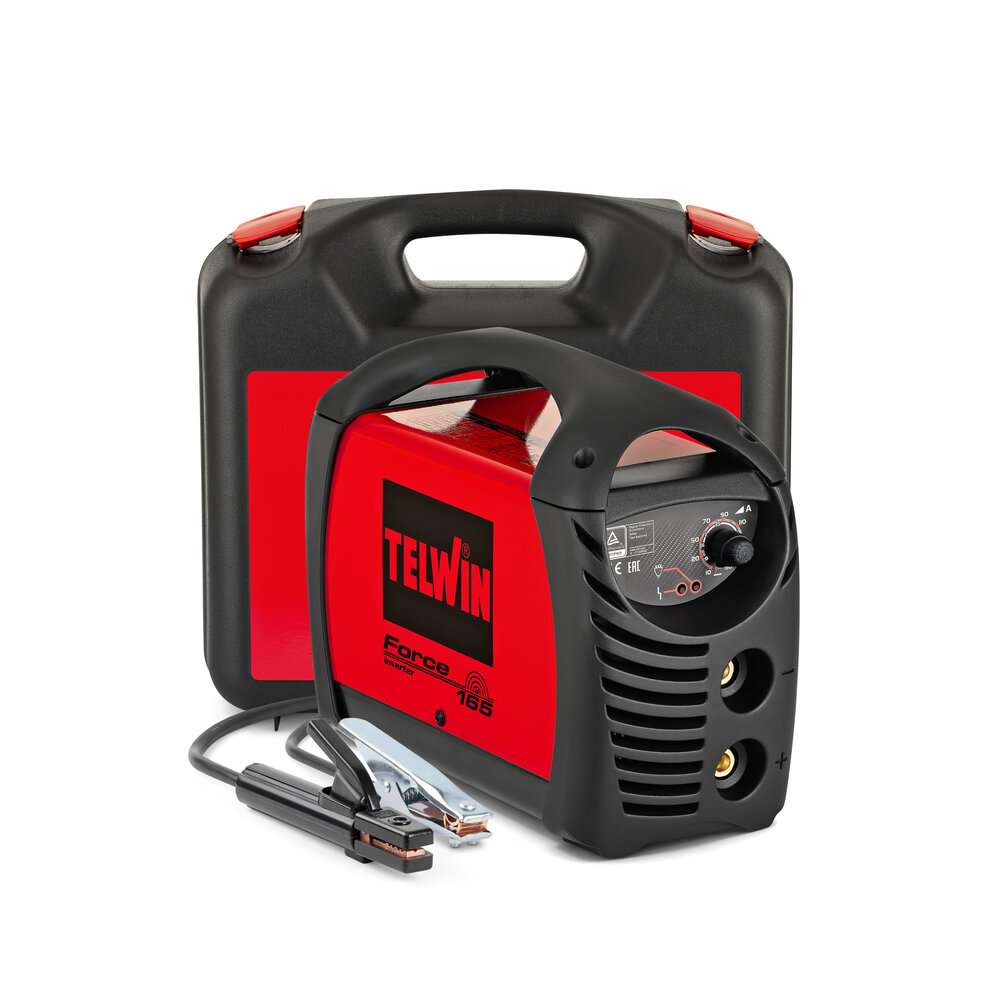

FORCE 165 PLASTIC CARRY CASE
code 815857
MMA inverter, electrode welding machine in direct current (DC).
Usable electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- Reduced weight and dimensions
- High welding current stability in spite of mains voltage fluctuations
- Arc force, hot start and anti-stick devices
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (± 15%) protections.
Complete with MMA welding accessories and plastic carry case.
Technical data
SINGLE PHASE MAINS VOLTAGE 230 V
EFFICIENCY 82 %
MAINS FREQUENCY 50 / 60 Hz
POWER FACTOR 0,6
CURRENT RANGE 10 - 150 A
D. USABLE ELECTRODES IN DC 1,6 - 4 mm
%USE (20°C USE) 60% @ 150A
PROTECTION DEGREE IP21
MAX CURRENT 140 @ 7% A
DIMENSIONS 38 x 42 x 17 cm
MAX NO LOAD VOLTAGE 72 V
WEIGHT 5,5
MAX ABSORBED CURRENT 31 A
EAN CODE 800489778955 2
MAX ABSORBED POWER 4,1 kW
PIECES/PALLET 36 pz/pallet
MOTORGENERATOR MINIMUM POWER 6 kW
PIECES/PALLET - B 30 pz/pallet B
Accessories
CABLE 16 MMQ 1,8 M - PLUG ATLAS 25: 124508
SLAG REMOVER: 712139
PLASTIC CARRY CASE: 322800
DALLAS 300 ELECTRODE HOLDER 300A: 712260
TOLEDO 250 WORK CLAMP 250A: 712030
