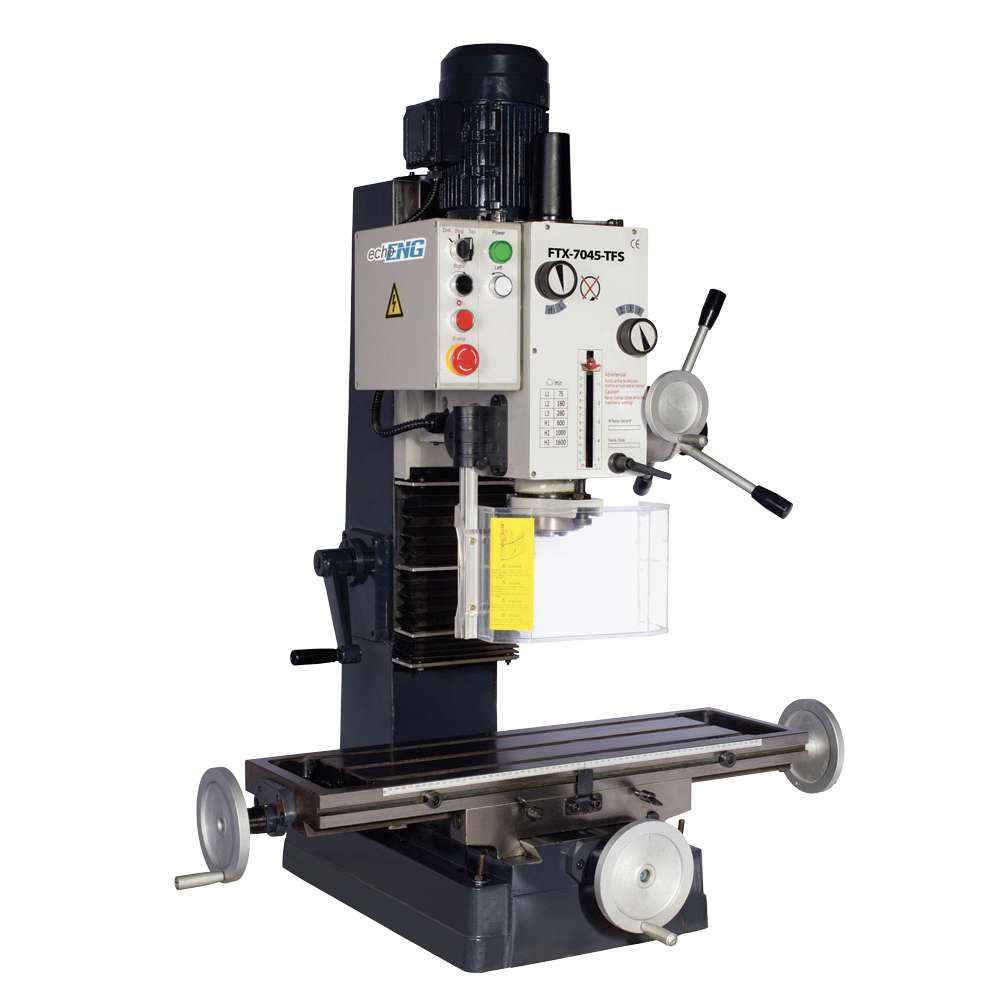

FTX-7045-TFS T 400V Industrial Milling Drill – 45 mm Drilling Capacity
Professional industrial bench milling drill ideal for drilling operations up to 45 mm. Sturdy construction and high precision. Compliant with CE regulations.
Main Features
- Milling drills for professional use.
- Dovetail-sliding head guides. Equipped with low-voltage safety circuit.
- Pyramidal-sliding table guides.
- Gearbox in oil bath.
- Reverse rotation.
- End-of-travel counters.
- Safety switch.
- Protective guard.
- Tilting head ± 90°.
- Machine manufactured according to CE standards.
- Robust column with dovetail guides.
- Safety microswitch protection.
Standard Accessories
- Chuck
- MT4 Taper
- MT4–MT3 Reducer
Optional Accessories
441415000 Stand
Technical Data
| Description | Value |
|---|---|
| Power supply | 400 - 50 V |
| Power | 1.1 kW |
| Number of speeds | 6 |
| Speed range | 75 - 1,600 R.P.M. |
| Max. drilling capacity | 45 mm |
| Max. milling diameter | 32 / 80 mm |
| Tilting head | ± 90° |
| Spindle-column distance | 258 mm |
| Spindle-table distance | 460 mm |
| Morse taper | MT4 |
| Spindle stroke | 120 mm |
| Longitudinal travel (X) | 560 mm |
| Cross travel (Y) | 230 mm |
| Vertical travel (Z) | 300 mm |
| T-slot dimensions | 3x14 mm |
| Total height | 1,750 mm |
| Table dimensions | 800 x 240 mm |
| Dimensions | 820 x 760 x 1,150 mm |
| Weight | 320 kg |
| Barcode | 8423640964075 |
