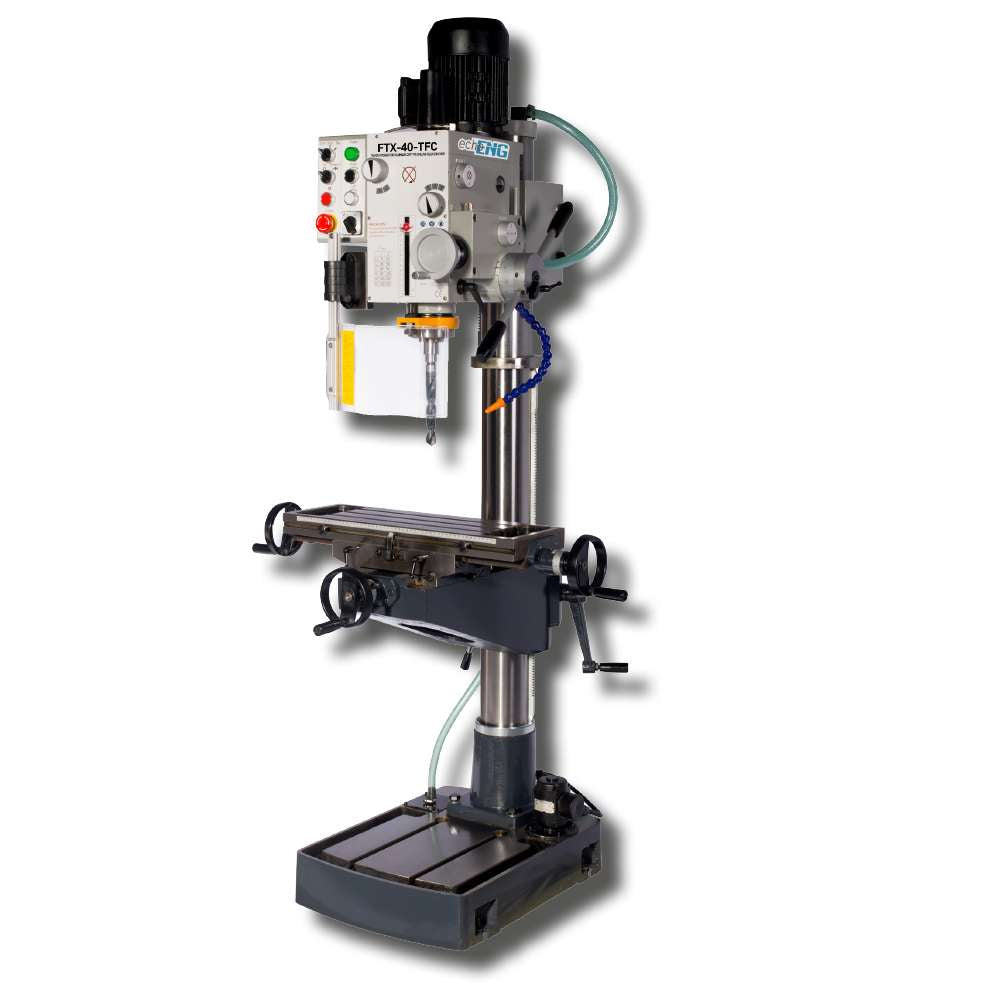

FTX-40-TFC 400V Industrial Drilling and Milling Machine with Motorized X-Z Axes – 40mm Drilling Capacity
The FTX-40-TFC is a professional industrial drilling and milling machine equipped with motorized feed on the X and Z axes, ideal for drilling operations up to 40 mm. It features a sturdy construction and high precision thanks to its variable-speed automatic feed system. Manufactured in compliance with CE regulations.
Main Features
- Low-noise gear transmission box
- Equipped with spindle reverse rotation and automatic spindle feed
- Spindle guard
- High-precision shaft and quill
- Spindle depth lock
- Worktable with variable-speed automatic feed
- Cooling system
- Emergency stop button
- Tilting head ±90°
- Spindle guard with safety micro-switch
- Protection with automatic shutoff
- Mechanical system for automatic spindle feed
- Manufactured in accordance with CE standards
Standard Accessories
- Cooling system
- CM4 taper
- B16 chuck / 1-13 mm
- Automatic longitudinal feed
- CM4-CM3 taper reducer
- CM3-CM2 taper reducer
- Toolbox
Technical Specifications
| Description | Value |
|---|---|
| Power supply | 400 - 50 V |
| Power | 1.1 kW |
| Transmission | Gears |
| Number of speeds | 12 |
| Speed range | 75 - 3,200 RPM |
| Max. drilling capacity | 40 mm |
| Column diameter | 115 mm |
| Max. tapping capacity | M20 |
| Spindle-to-column distance | 272 mm |
| Max. spindle-to-table distance | 610 mm |
| Morse taper | CM4 |
| Spindle travel | 120 mm |
| Longitudinal travel (X) | 190 mm |
| Cross travel (Y) | 370 mm |
| T-slot dimensions | 14 mm |
| Total height | 1,920 mm |
| Table dimensions | 600 x 190 mm |
| Base dimensions | 650 x 450 mm |
| Overall dimensions | 820 x 720 x 1,830 mm |
| Weight | 350 kg |
| Barcode | 8423640093003 |
