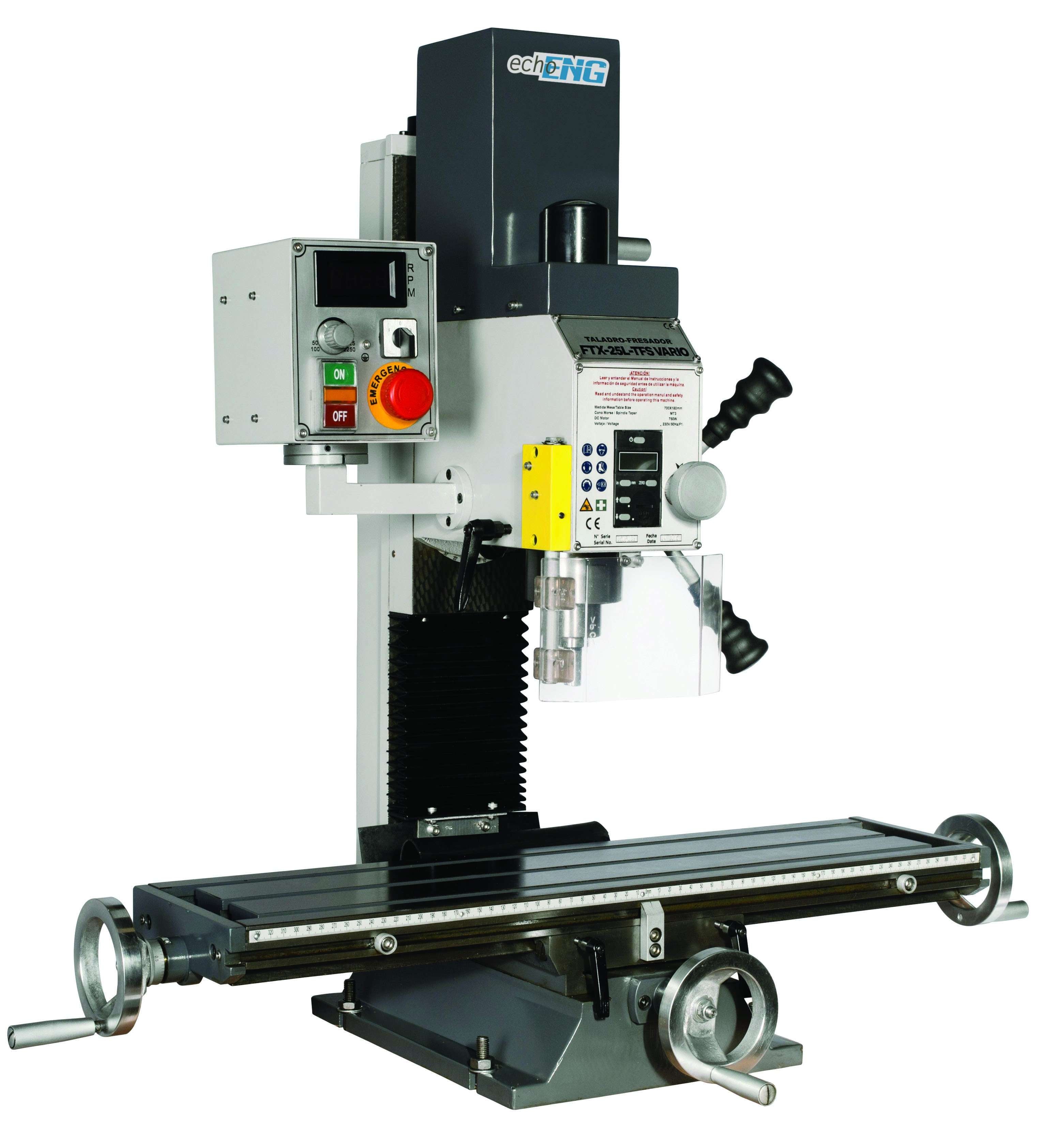

FTX-32-TFS VARIO – Bench Drill-Mill 230V 1.1 kW ENG PRO Fortex
Description
The FTX-32-TFS VARIO is the enhanced version of the Fortex range, offering greater machining capacity. It features a tilting head, digital indicators, and gear transmission, delivering strength and precision for heavy-duty work.
Main Features
Heavy-duty, stable structure
1.1 kW brushless motor
Precision spindle with tapered roller bearings
Gear-driven transmission
Tilting head ± 90°
Digital depth readout and speed display
Electronic speed control
Rack and pinion engagement for higher accuracy
Clamping system on head, column, and guides
Adjustable keyway on guide rails
Safety guard with micro-switch
Manufactured in accordance with CE regulations
Standard Accessories Included
Drill chuck
Morse taper CM2
Tool kit
Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage | 230 V – 50 Hz |
| Power | 1.1 kW |
| Transmission | Gear |
| Speed Settings | Variable |
| Speed Range | 50 – 2,250 rpm |
| Max. Drilling Capacity | Ø 32 mm |
| Max. End Milling Capacity | Ø 20 mm |
| Max. Face Milling Capacity | Ø 76 mm |
| Distance Spindle to Column | 190 mm |
| Max. Distance Spindle to Table | 470 mm |
| Morse Taper | CM3 |
| Spindle Stroke | 70 mm |
| Longitudinal Travel (X) | 580 mm |
| Cross Travel (Y) | 200 mm |
| Vertical Travel (Z) | 355 mm |
| T-Slots Table | 3 x 14 mm |
| Table Dimensions | 700 x 210 mm |
| Weight | 220 kg |
| Machine Dimensions | 860 x 710 x 1020 mm |
| Packing Dimensions | 900 x 740 x 1150 mm |
| EAN Code | 8423640093102 |
