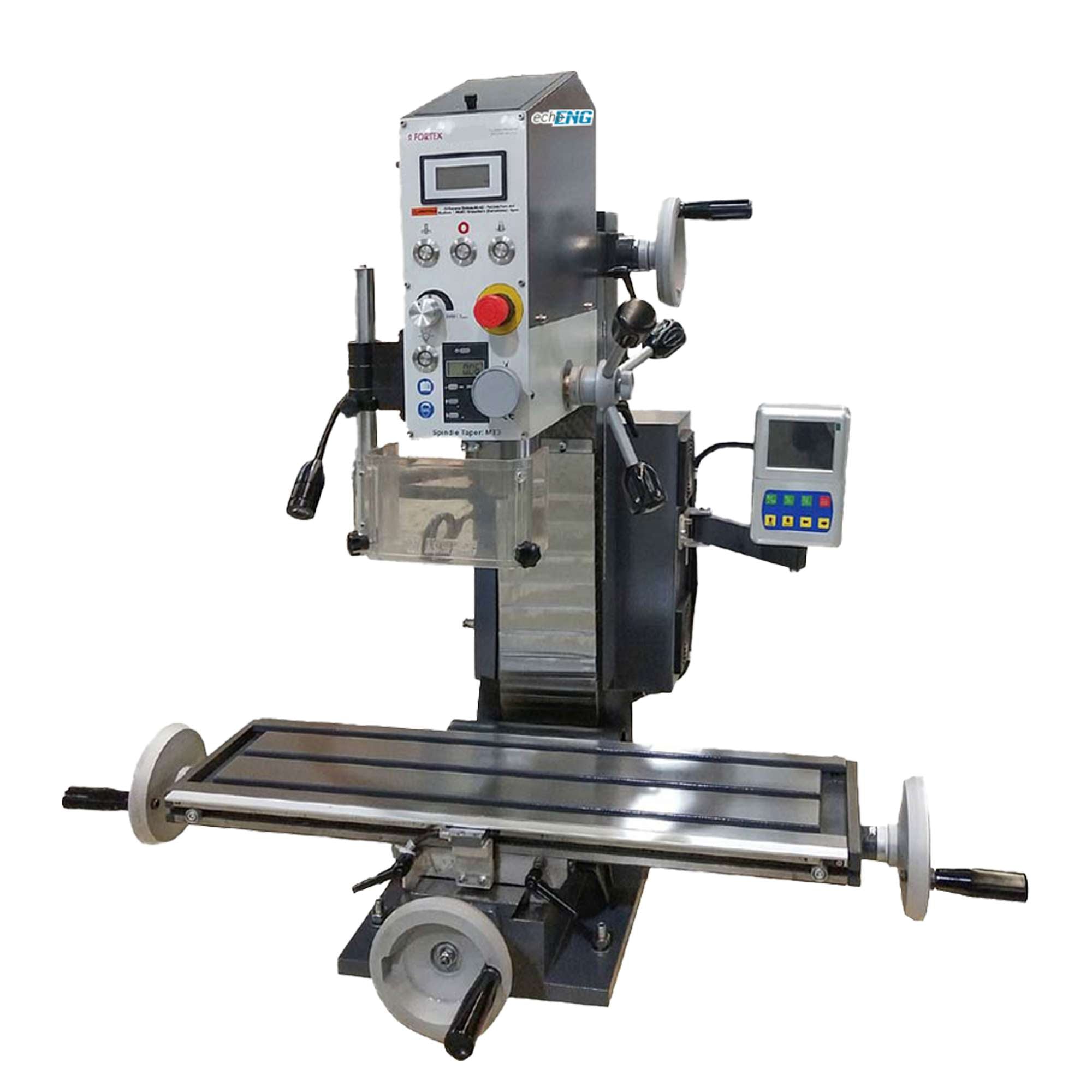

DRILLING AND MILLING MACHINE WITH LED DISPLAY – ±90° TILTING HEAD – AUTOMATIC SPINDLE
Description
Professional-grade drilling and milling machine designed for high precision and durability.
Equipped with advanced technology and construction features, it is ideal for drilling and milling tasks in mechanical workshops and technical labs.
Main Features
Dovetail slideways for the head with wedge-type adjustment strips
Rectified pyramid-shaped table guides with wedge-type adjustment strips
LED digital display for X, Y, Z axes with magnetic scales
Safety guard for milling tool holder
Dovetail guide with metal protection
Head tilting ±90°
Built according to CE standards
Technical Specifications
| Specification | Value |
|---|---|
| Power Supply | 230 V / 1 Phase |
| Power Output | 1.5 - 2 kW / Hp |
| Transmission | Direct Drive |
| Number of Speeds | Variable |
| Spindle Speed Range | 100 – 2500 rpm |
| Max. Drilling Capacity | 32 mm |
| Max. Vertical Milling Capacity | 20 mm |
| Max. Horizontal Milling Capacity | 76 mm |
| Head Tilt | ±90° |
| Spindle Taper | MT3 |
| Drilling Depth | 70 mm |
| Distance Spindle to Column | 210 mm |
| Max. Distance Spindle to Table | 470 mm |
| Longitudinal Travel (X) | 580 mm |
| Cross Travel (Y) | 200 mm |
| Table Size | 840 x 210 mm |
| T-Slot Size | 3 x 14 mm |
| Net/Gross Weight | 240 Kg |
| Machine Dimensions | 1000 x 710 x 1020 mm |
