Description

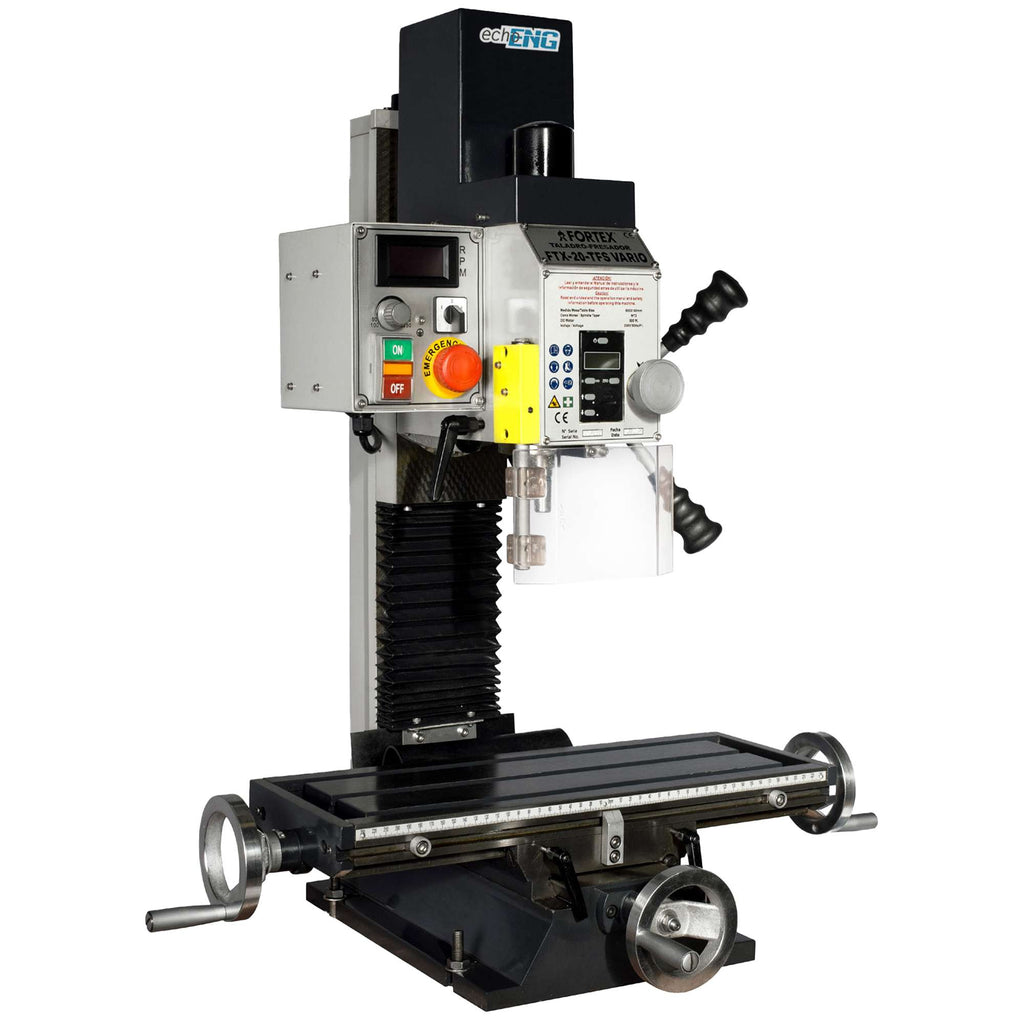

Bench Drilling and Milling Machine with Digital Depth Readout FTX-20L-TFS VARIO 230V 1.1 kW ENG PRO Fortex
Description
The FTX-20L-TFS VARIO stands out for its extended longitudinal travel, larger worktable, and advanced electronics, including digital depth and speed indicators. A professional-grade machine, perfect for those who need high precision and user comfort in every operation.
Main Features
Solid and compact structure
Precision spindle with tapered roller bearings
Brushless motor 1.1 kW
Gear transmission
Tilting head ±90°
Digital depth indicator
Digital speed readout
Electronic speed control
High-precision pinion-rack system
Locking on head, column, and slides
Safety micro switch on chuck guard
CE-compliant manufacturing
Standard Accessories
Drill chuck
Morse taper arbor CM2
Toolbox with tools
Technical Specifications
| Item | Value |
|---|---|
| Input voltage | 230 V – 50 Hz |
| Power | 1.1 kW |
| Transmission | Gear |
| Speed range | Variable |
| RPM | 50 – 2250 |
| Max. drilling capacity | Ø 20 mm |
| Max. end milling capacity | Ø 16 mm |
| Max. face milling capacity | Ø 63 mm |
| Spindle-column distance | 170 mm |
| Max. spindle-table distance | 370 mm |
| Morse taper | CM2 |
| Spindle stroke | 50 mm |
| Longitudinal travel (X) | 495 mm |
| Cross travel (Y) | 160 mm |
| Vertical travel (Z) | 250 mm |
| T-slot size | 3 x 12 mm |
| Worktable dimensions | 700 x 180 mm |
| Weight | 113 kg |
| Machine dimensions | 960 x 580 x 780 mm |
| EAN code | 8423640965249 |
