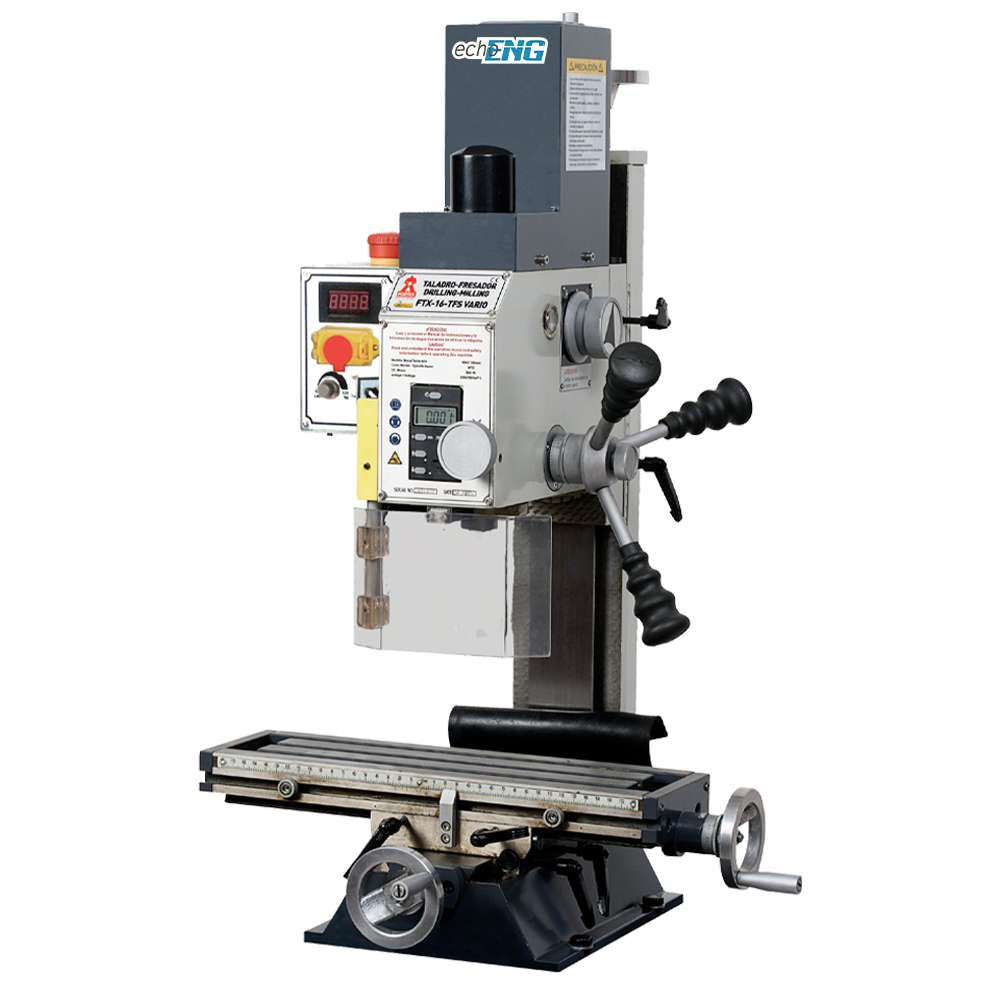

Bench Drill Mill FTX-16-TFS VARIO 230V 0.75 kW ENG PRO Fortex
The FTX-16-TFS VARIO is a compact and powerful bench drill mill, ideal for precision mechanical work in professional environments and small workshops. The cast iron frame ensures stability and long-term durability, while the 0.75 kW brushless motor delivers high performance through a gear transmission with variable speed.
Key Features
Robust cast iron structure
Precision spindle with tapered roller bearings
Adjustable gib on guideways
High-power brushless motor
Rack and pinion contact for improved accuracy
Locking on head, column, and guideways
Tiltable head ±90°
Digital depth readout
Digital speed indicator
Protective cover with automatic shut-off
Manufactured in compliance with CE standards
Included Accessories
Drill chuck
Morse taper MT2
Tool box
Technical Specifications
| Specification | Value |
|---|---|
| Input voltage | 230 V – 50 Hz |
| Power | 0.75 kW |
| Transmission | Gears |
| Number of speeds | Variable |
| Speed (RPM) | 50 – 2250 |
| Max. drilling capacity | Ø 16 mm |
| Max. vertical milling diameter | Ø 16 mm |
| Max. horizontal (face) milling diameter | Ø 50 mm |
| Spindle-to-column distance | 175 mm |
| Max. spindle-to-table distance | 275 mm |
| Morse taper | MT2 |
| Spindle stroke | 50 mm |
| Longitudinal travel (X) | 240 mm |
| Cross travel (Y) | 160 mm |
| Vertical travel (Z) | 200 mm |
| T-slot dimensions | 3 x 10 mm |
| Table size | 400 x 120 mm |
| Weight | 60 kg |
| Machine dimensions | 510 x 480 x 750 mm |
| EAN Code | 8423640965256 |
