Microprocessor controlled inverter wire welding machine 230V MIG-MAG - Telwin

TelwinSKU: 188_002_TAGL816087

Price:
Sale price€606,34
Availability : 2

Description

Overview

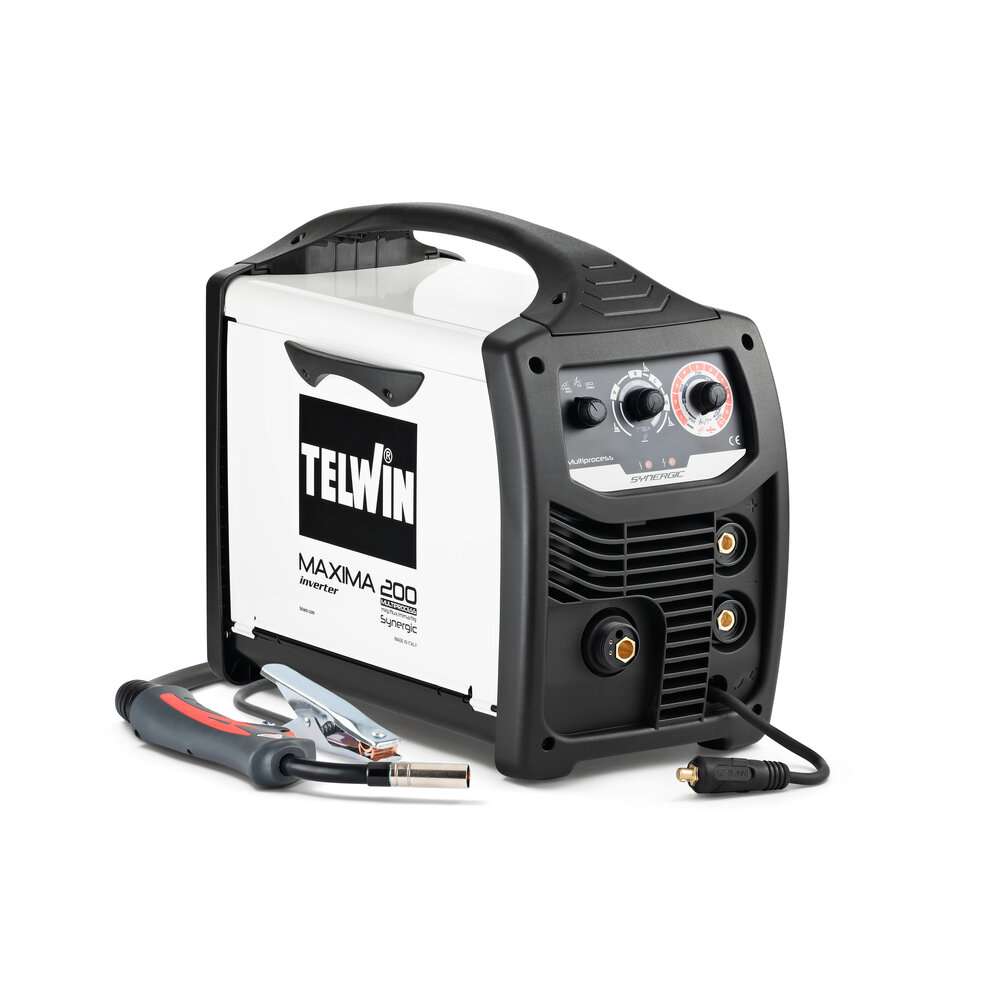

MAXIMA 200 SYNERGIC

code 816087
Microprocessor controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT inverter wire welding machine.
It allows great versatility in the use of various types of materials (steel, stainless steel, aluminium) and in all possible applications, from maintenance to installation works.
The SYNERGIC adjustment of the welding parameters makes the products easy to use and grants excellent results, always, also for the less experienced operator.
Light and compact, it can be easily carried in any intervention place, both inside and outside.
Features:
- Polarity reversal for GAS MIG-MAG/BRAZING welding;
- Thermostatic, overvoltage, undervoltage, motorgenerator (+/- 15%) protections;
- Arc-force adjustment in MMA;
- Euro torch connection.
Complete with MIG-MAG torch, work clamp and cable.


  MMA TIG DC LIFT

  COIL 5 kg
  MIG-MAG FLUX
  CE MARKING
  1 PH 230V
  EAC CERTIFICATION


MAXIMA 200 SYNERGIC

code 816087


Technical data

CODE 816087
EFFICIENCY 86 %
  SINGLE PHASE MAINS VOLTAGE 230 V
POWER FACTOR 0,7
MAINS FREQUENCY 50 / 60 Hz
D. USABLE ELECTRODES IN DC 1,6 - 3,2 mm
CURRENT RANGE 20 - 170 A
STEEL WELDING WIRE DIAMETER 0,6 - 0,8 mm
MAX CURRENT 140 @ 20% A
span class="nome">INOX WELDING WIRE DIAMETER 0,8 mm
DC CURRENT 80 A
span class="nome">ALUMINIUM WELDING WIRE DIAM. 0,8 - 1 mm
MAX NO LOAD VOLTAGE 44 V
FLUX CORED WELDING WIRE DIAM. 0,8 - 1,2 mm
MAX ABSORBED CURRENT 22 A
BRAZING WIRE DIAM. 0,8 mm
ABSORBED CURRENT AT 60% 11 A
PROTECTION DEGREE IP23
MAX ABSORBED POWER 3,2 kW
DIMENSIONS 45 X 23,5 X 37 cm
ABSORBED POWER AT 60% 1,6 kW
WEIGHT 11
MAINS FUSE 16 A
EAN CODE 800489798712 5


Accessories

Included Accessories

CABLE TW05V-A 1X025 1.80M PLUG ATLAS: 124589
MT15 MIG TORCH 3M (RED): 742180
  TOLEDO 250 WORK CLAMP 250A. 712030
